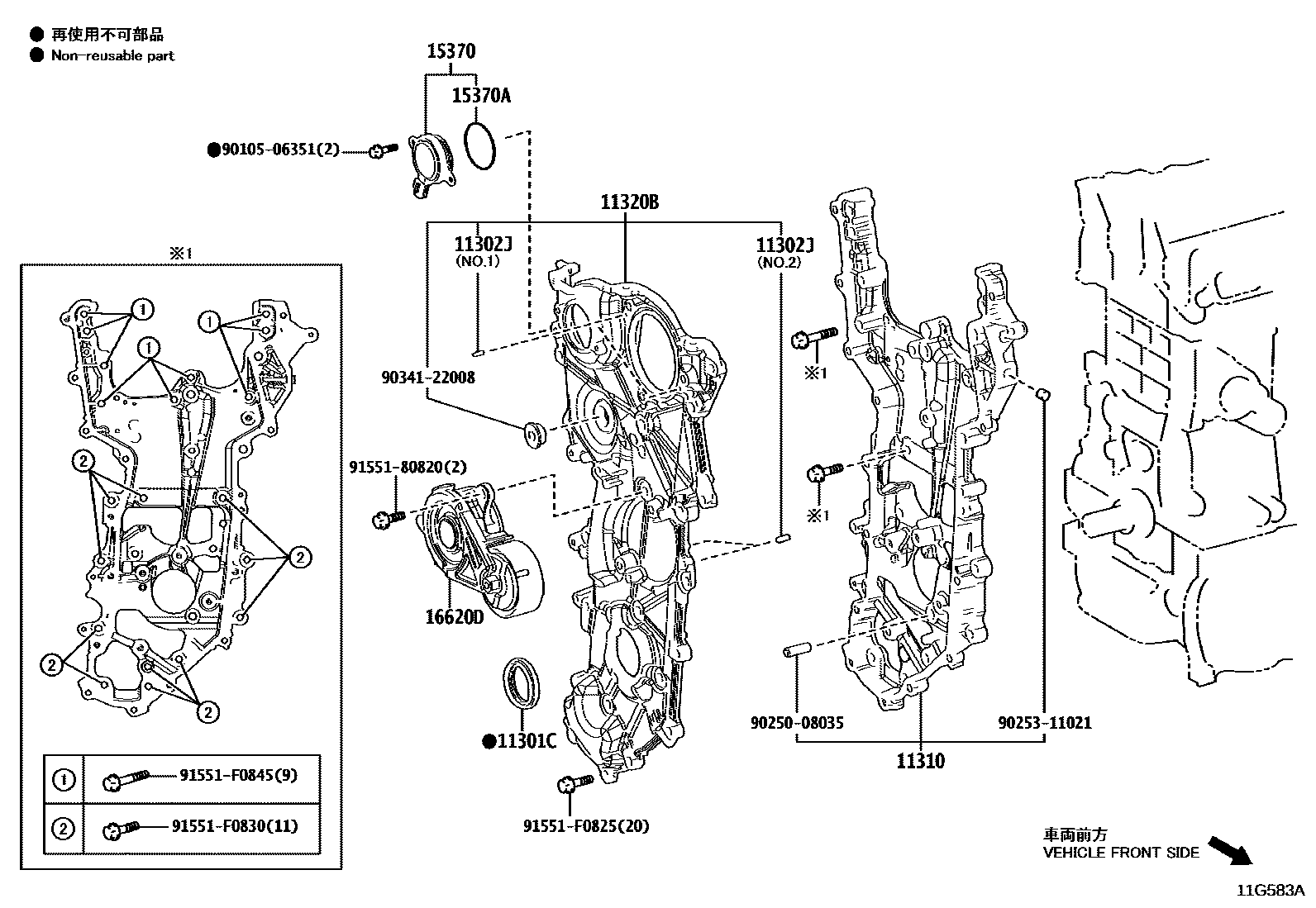

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

NO.1:REFER ILLUST.

NO.2:REFER ILLUST.

11310COVER ASSY, TIMING CHAIN

11320BCOVER ASSY, TIMING CHAIN, NO.2

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-24010i202207-202210

9010506351

9025008035

9025311021

9034122008

9155180820

91551F0825

91551F0830

91551F0845

16 parts on this diagram · 2 diagrams in section
