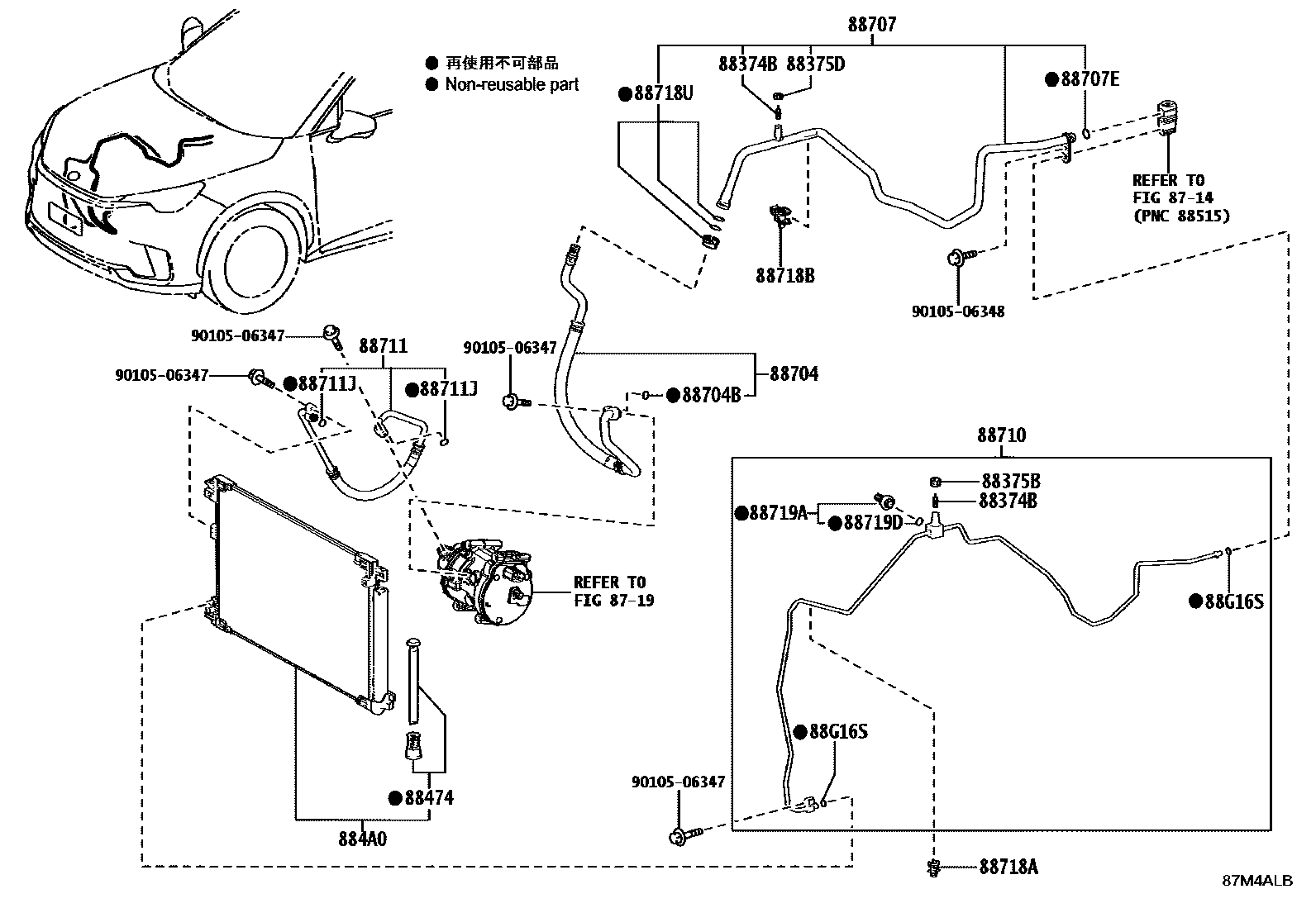

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88375BCAP, SERVICE VALVE, NO.1
UKRAINE SPEC
88375DCAP, SERVICE VALVE, NO.2
UKRAINE SPEC
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88707PIPE SUB-ASSY, SUCTION
UKRAINE SPEC
88707ERING, O, NO.2(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88710TUBE ASSY, AIR CONDITIONER
UKRAINE SPEC
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711JRING, O, NO.1(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718UCLAMP, NO.6(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)
ID=10.6,OD=14.16
88G16SRING, O, NO.3(FOR LIQUID TUBE)
ID=6.7,OD=10.3
9010506347
9010506348
22 parts on this diagram · 2 diagrams in section
