CAMERA & REAR MONITOR DISPLAY
8504
86470COMPUTER ASSY, DRIVER MONITOR
ADVANCED PACKAGE&SAFETY PACKAGE
SAFETY PACKAGE
ADVANCED PACKAGE
86471CAMERA, DRIVER MONITOR
86472BRACKET, DRIVER MONITOR
ADVANCED PACKAGE
ADVANCED PACKAGE&SAFETY PACKAGE
SAFETY PACKAGE
86790BCAMERA ASSY, TELEVISION, FR
86790DCAMERA ASSY, TELEVISION, RR
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *BGM)
86790ECAMERA ASSY, TELEVISION, SIDE RH
86790FCAMERA ASSY, TELEVISION, SIDE LH
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
86791DBRACKET, COMPUTER PARKING ASSIST, NO.2
86792CCOMPUTER, PARKING ASSIST
9015350015
9015950393
9016750063
9017906274
9167380616

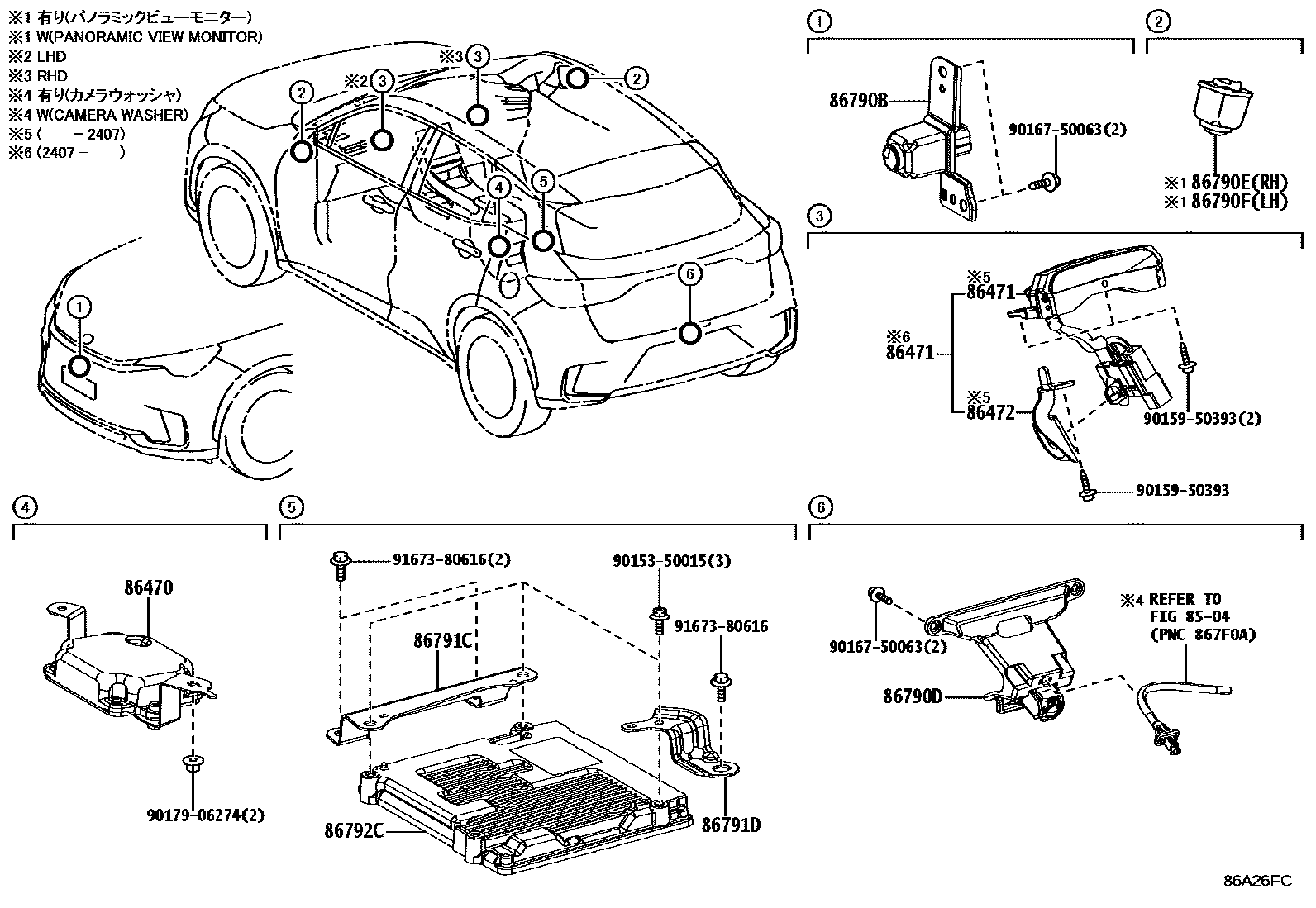

16 parts on this diagram · 1 diagram in section
