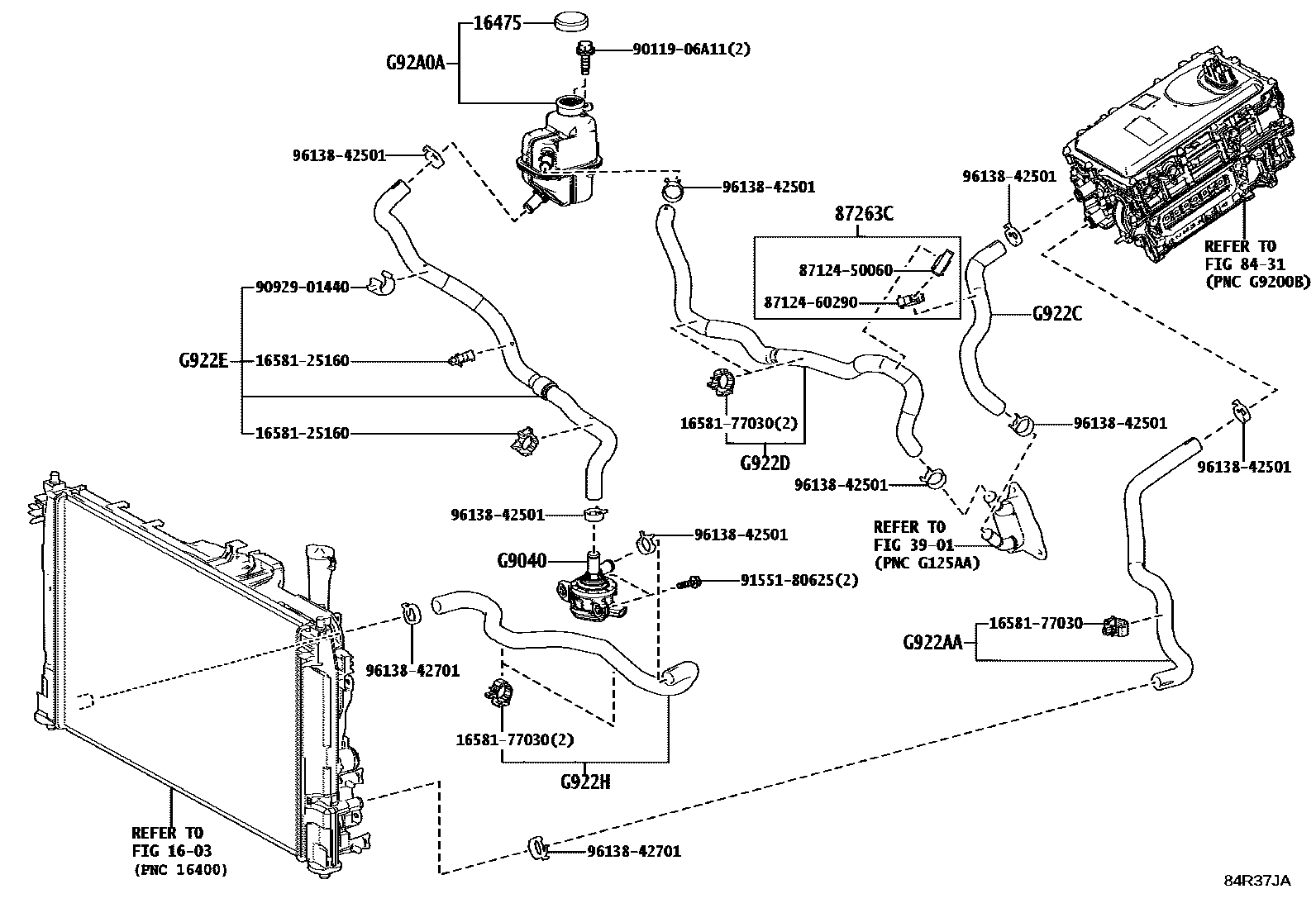

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iM15AFXE..MAYH1#202312

3901

8431

87263CBRACKET, WATER HOSE

main16581-70020iMAYH1#202312

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052030iMAYH1#202312

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A52030iMAYH1#202312

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C52020iMAYH1#202312

G922DHOSE, INVERTER COOLING OUTLET, NO.2

mainG922D52010iMAYH1#202312

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E52030iMAYH1#202312

G922HHOSE, HYBRID RADIATOR INLET

mainG922H52020iMAYH1#202312

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H052010iMAYH1#202312

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

1658177030CLAMP, HOSE(FOR WATER HOSE)

main16581-77030

8712450060CLAMP, HEATER

main87124-50060

8712460290CLAMP, HEATER

main87124-60290

9011906A11

main90119-06A11

9092901440

main90929-01440

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

21 parts on this diagram · 1 diagram in section
