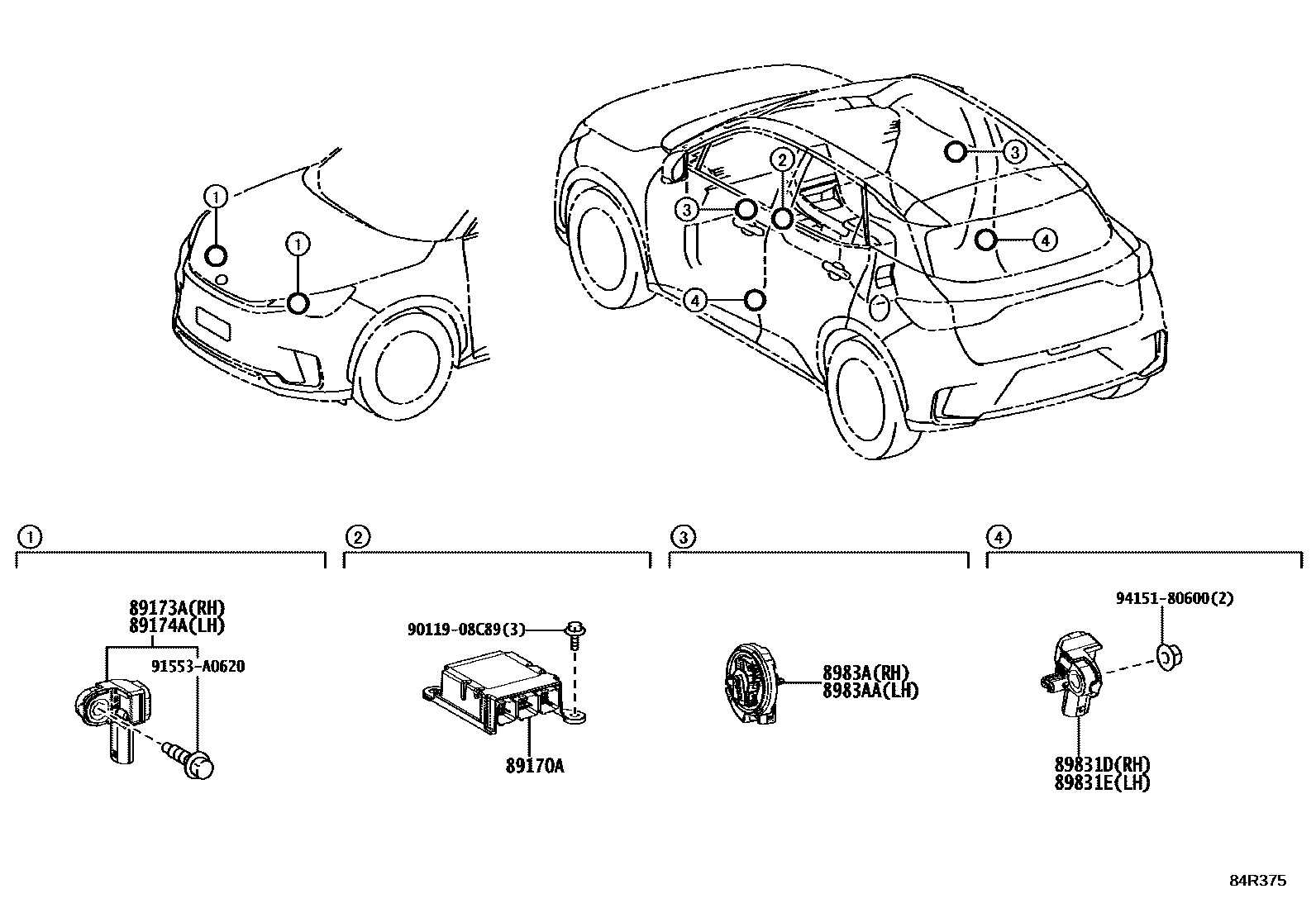

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-52R40iMAYH1#..LHD..(EUR,GEN,TUR)202312-202506

*614

main89170-52R50iMAYH1#..RHD..EUR202312-202506

*614

main89170-52R60iMAYH1#..ARL202312-202506

*614

main89170-52R70iMAYH10..TWN202312-202506

*614

main89170-52R70iMAYH10..TWN202312-202506

PHILIPPINES SPEC&,*614

main89170-52R80iMAYH1#..RHD..GEN202312-202506

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-59475iMAYH1#¥4,110202312

89174ASENSOR, AIRBAG, FRONT LH

main89173-59475iMAYH1#¥4,110202312

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-52160iMAYH1#¥4,110202312

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-52160iMAYH1#¥4,110202312

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52030iMAYH1#¥4,110202312

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52030iMAYH1#¥4,110202312

9011908C89

main90119-08C89¥80

91553A0620

main91553-A0620¥60

9415180600

main94151-80600¥60

10 parts on this diagram · 1 diagram in section
