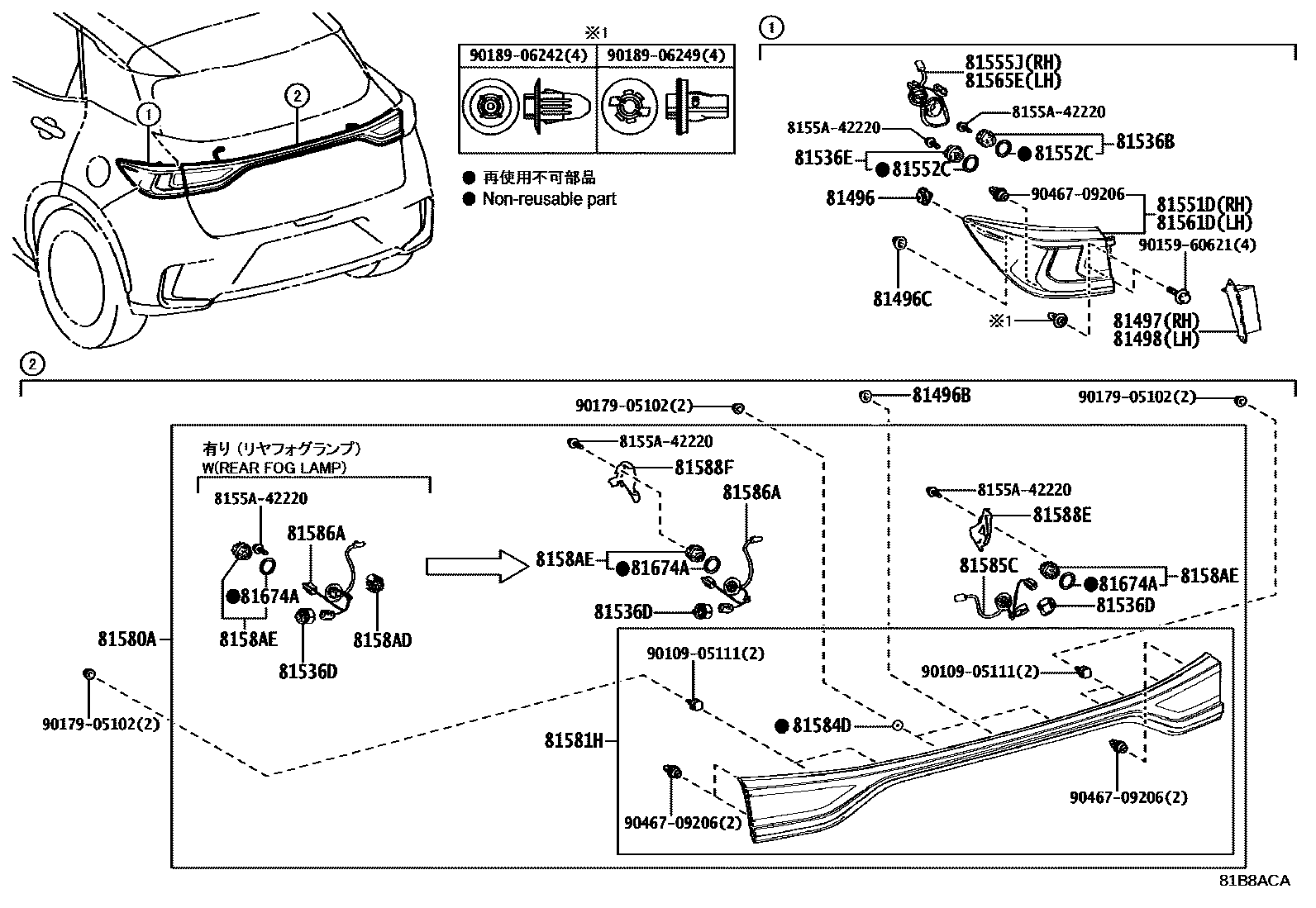

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iMAYH1#¥100202312

81496BGUIDE, REAR LAMP

main81496-52020iMAYH1#¥70202312

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020iMAYH1#¥70202312

81497COVER, REAR COMBINATION LAMP, RH

main81497-52040iMAYH1#¥770202312

81498COVER, REAR COMBINATION LAMP, LH

main81498-52040iMAYH1#¥770202312

81536BLED, REAR TURN SIGNAL LAMP

main81536-46120iMAYH1#¥2,270202312

81536DLED, TAILLAMP

main81965-46010iMAYH1#¥3,210202312

81536ELED, STOP LAMP

main81536-42200iMAYH1#¥2,870202312

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52F80iMAYH1#¥23,800202312

81552CGASKET, REAR COMBINATION LAMP

main81538-42200iMAYH1#¥670202312

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-52F80iMAYH1#¥1,540202312

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52F80iMAYH1#¥23,800202312

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-52F80iMAYH1#¥1,540202312

81580ALAMP ASSY, REAR

main81580-52440iMAYH1#..ARL;MAYH10..LHD..GEN¥41,300202312

HONG KONG SPEC

main81580-52440iMAYH1#..ARL;MAYH10..LHD..GEN¥41,300202312

MACAU SPEC

main81580-52440iMAYH1#..ARL;MAYH10..LHD..GEN¥41,300202312

BRUNEI SPEC

main81580-52440iMAYH1#..ARL;MAYH10..LHD..GEN¥41,300202312

SINGAPOLE SPEC

main81580-52440iMAYH1#..ARL;MAYH10..LHD..GEN¥41,300202312

INDONESIA SPEC

main81580-52450iMAYH1#..RHD..(EUR,GEN)¥44,300202312

main81580-52470iMAYH1#..LHD..(EUR,TUR,TWN)202312

81581HLENS & BODY, REAR LAMP

main81581-52440iMAYH1#..ARL;MAYH10..LHD..GEN¥29,200202312

HONG KONG SPEC

main81581-52440iMAYH1#..ARL;MAYH10..LHD..GEN¥29,200202312

MACAU SPEC

main81581-52440iMAYH1#..ARL;MAYH10..LHD..GEN¥29,200202312

BRUNEI SPEC

main81581-52440iMAYH1#..ARL;MAYH10..LHD..GEN¥29,200202312

SINGAPOLE SPEC

main81581-52440iMAYH1#..ARL;MAYH10..LHD..GEN¥29,200202312

INDONESIA SPEC

main81581-52450iMAYH1#..RHD..(EUR,GEN)¥27,400202312

main81581-52470iMAYH1#..LHD..(EUR,TUR,TWN)202312

81584DGASKET, REAR LAMP

main81584-22040iMAYH1#¥190202312

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-52440iMAYH1#..ARL,TUR,TWN;MAYH1#..LHD..(EUR,GEN)¥1,270202312

HONG KONG SPEC

main81585-52440iMAYH1#..ARL,TUR,TWN;MAYH1#..LHD..(EUR,GEN)¥1,270202312

MACAU SPEC

main81585-52440iMAYH1#..ARL,TUR,TWN;MAYH1#..LHD..(EUR,GEN)¥1,270202312

BRUNEI SPEC

main81585-52440iMAYH1#..ARL,TUR,TWN;MAYH1#..LHD..(EUR,GEN)¥1,270202312

SINGAPOLE SPEC

main81585-52440iMAYH1#..ARL,TUR,TWN;MAYH1#..LHD..(EUR,GEN)¥1,270202312

INDONESIA SPEC

main81585-52450iMAYH1#..RHD..(EUR,GEN)¥1,630202312

81586ASOCKET & WIRE, REAR LAMP, LH

main81585-52440iMAYH1#..RHD;MAYH10..LHD..GEN¥1,270202312

main81585-52450iMAYH1#..LHD..(EUR,TUR,TWN)¥1,630202312

81588EBRACKET, REAR LAMP, RH

main81588-52440iMAYH1#¥710202312

81588FBRACKET, REAR LAMP, LH

main81588-52450iMAYH1#¥710202312

8158ADLED, REAR FOG LAMP

main81965-46010iMAYH15..EUR,GEN;MAYH10..RHD..(EUR,GEN);MAYH10..LHD..(EUR,TUR,TWN)¥3,210202312

8158AELED, BACK-UP LAMP

main8159A-52420iMAYH1#¥2,500202312

81674AGASKET, BACK-UP LAMP

main81538-42200iMAYH1#¥670202312

8155A42220

main8155A-42220¥40

9010905111

main90109-05111¥60

9015960621

main90159-60621¥60

9017905102

main90179-05102¥90

9018906242

main90189-06242¥70

9018906249

main90189-06249¥70

9046709206

main90467-09206¥80

30 parts on this diagram · 2 diagrams in section
