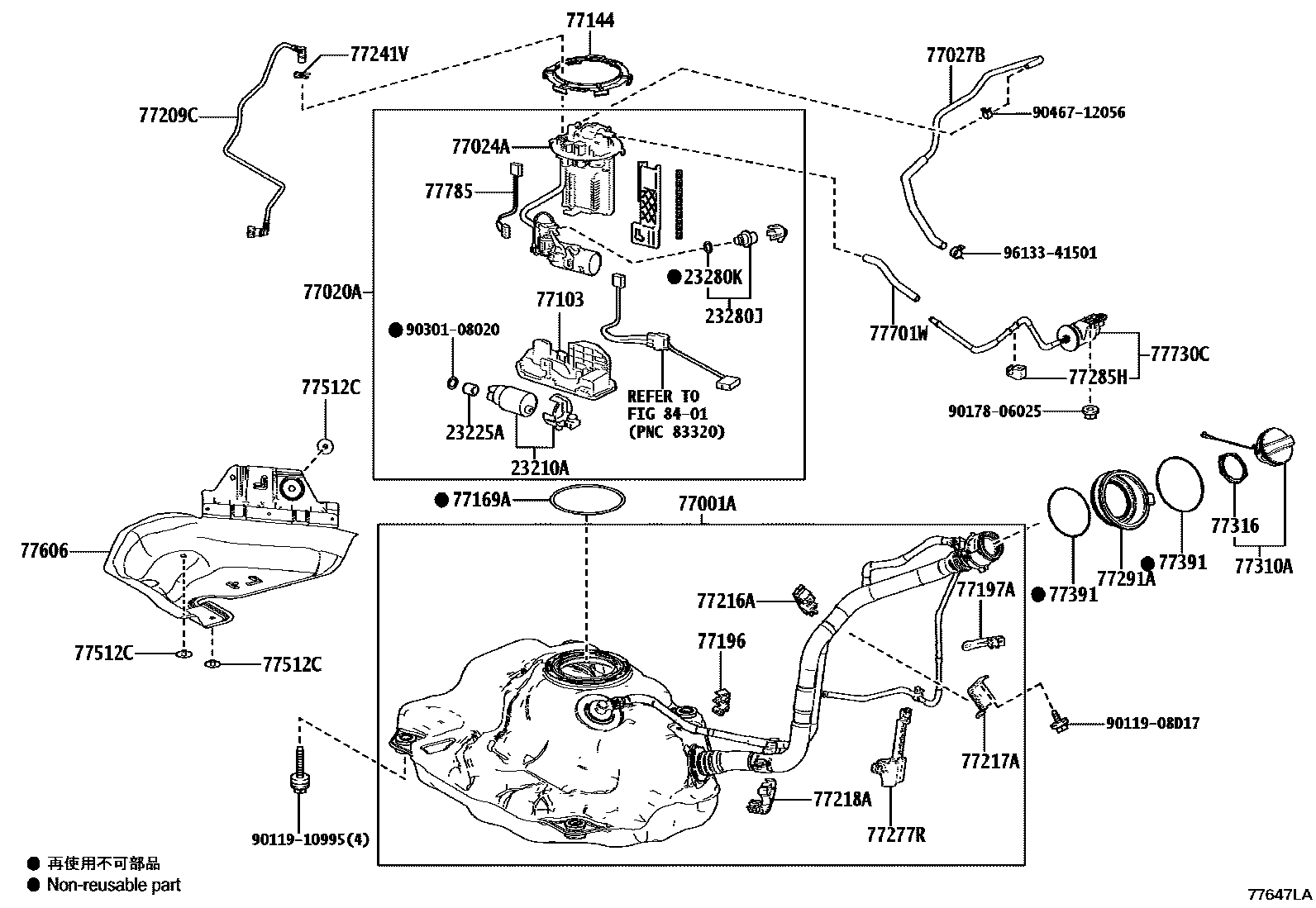

FUEL TANK & TUBE
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77027BTUBE SUB-ASSY, FUEL EMISSION, NO.1
77103SUB-TANK SUB-ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77241VCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285HCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1
77730CCANISTER ASSY, CHARCOAL, NO.2
77785HARNESS, FUEL PUMP
8401
9011908D17
9011910995
9017806025
9030108020
9046712056
9613341501
36 parts on this diagram · 4 diagrams in section
