LOCK CYLINDER SET

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iMAYH1#¥7,100202312

69503CYLINDER SET, LOCK

main69005-52T80iMAYH1#..RHD202312

main69005-52T90iMAYH1#..LHD202312

69503AKEY, BLANK

main69515-33150iMAYH1#202312

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-33140iMAYH1#¥7,100202312

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69051-52740iMAYH1#..RHD202312

main69052-52440iMAYH1#..LHD202312

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-78390iMAYH10..LHD..GEN202312

CHILE SPEC

89745BBATTERY, TRANSMITTER(CARD KEY)

89745CBATTERY, TRANSMITTER

main89745-50020iMAYH1#¥440202312

CR2032

89751ACOVER, TRANSMITTER HOUSING

main89751-33220iMAYH1#..EUR,GEN,TUR202312

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33040iMAYH1#..EUR,GEN,TUR¥60202312

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-46090iMAYH1#..EUR,GEN,TUR202312-202406

main8990H-46091iMAYH1#..EUR,GEN,TUR202407

main8990H-52290iMAYH1#..ARL,TWN202312-202406

main8990H-52291iMAYH1#..ARL,TWN202407

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

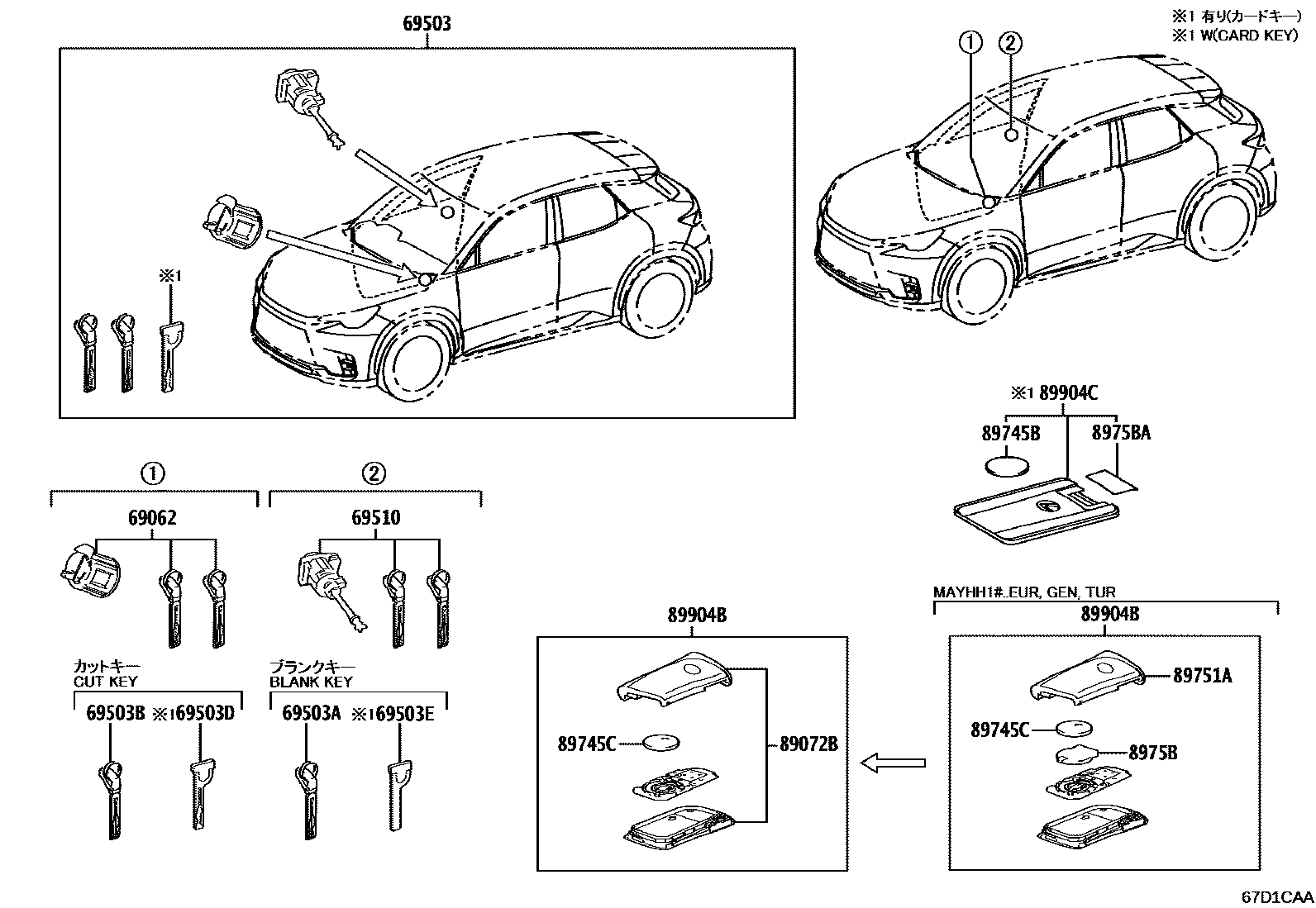

15 parts on this diagram · 1 diagram in section
