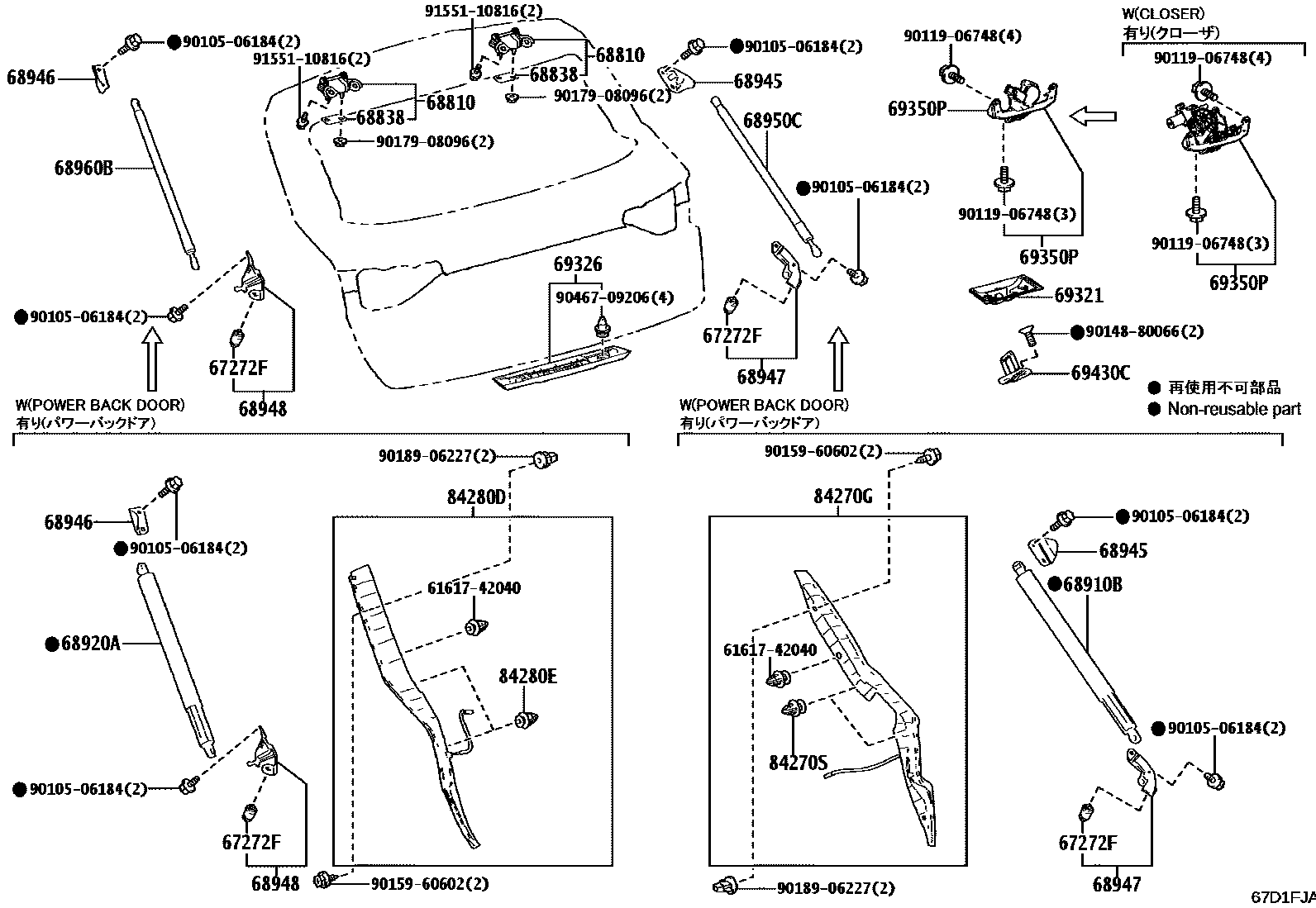

BACK DOOR LOCK & HANDLE

67272FCUSHION, BACK DOOR STOPPER, NO.2

main69477-52030iMAYH1#202312-202506

AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)

68810HINGE ASSY, BACK DOOR, UPPER

main68810-52260iMAYH1#202312

PAD T=1.0

main68810-52270iMAYH1#202312

PAD T=1.5

main68810-52280iMAYH1#202312

PAD T=2.0

68838PAD, BACK DOOR HINGE, NO.1

main68838-48140iMAYH1#202312

T=1.0

main68838-48150iMAYH1#202312

T=1.5

main68838-48160iMAYH1#202312

T=2.0

68910BUNIT ASSY, POWER BACK DOOR, RH

68920AUNIT ASSY, POWER BACK DOOR, LH

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-52210iMAYH1#202312

AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-52140iMAYH1#202312

AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-52120iMAYH1#202312

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-52100iMAYH1#202312

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WL60iMAYH1#202312-202506

AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)

68960BSTAY ASSY, BACK DOOR, LH

main68960-0WL40iMAYH1#202312-202506

AUTO & EASY CLOSER DOOR-WITH(POWWER BACK DOOR)

69321COVER, BACK DOOR LOCK

main69321-52010iMAYH1#202312

69326PLATE, BACK DOOR OUTSIDE HANDLE

main69326-52010iMAYH1#202312

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-52410iMAYH1#202312

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iMAYH1#202312

84270GSENSOR ASSY, POWER BACK DOOR, RH

84270SCLIP(POWER BACK DOOR SENSOR, RH)

84280DSENSOR ASSY, POWER BACK DOOR, LH

84280ECLIP (FOR POWER BACK DOOR SENSOR, LH)

6161742040REINFORCEMENT, BACK FRAME UPPER CORNER, RH

main61617-42040

9010506184

main90105-06184

9011906748

main90119-06748

9014880066

main90148-80066

9015960602

main90159-60602

9017908096

main90179-08096

9018906227

main90189-06227

9046709206

main90467-09206

9155110816

main91551-10816

28 parts on this diagram · 1 diagram in section
