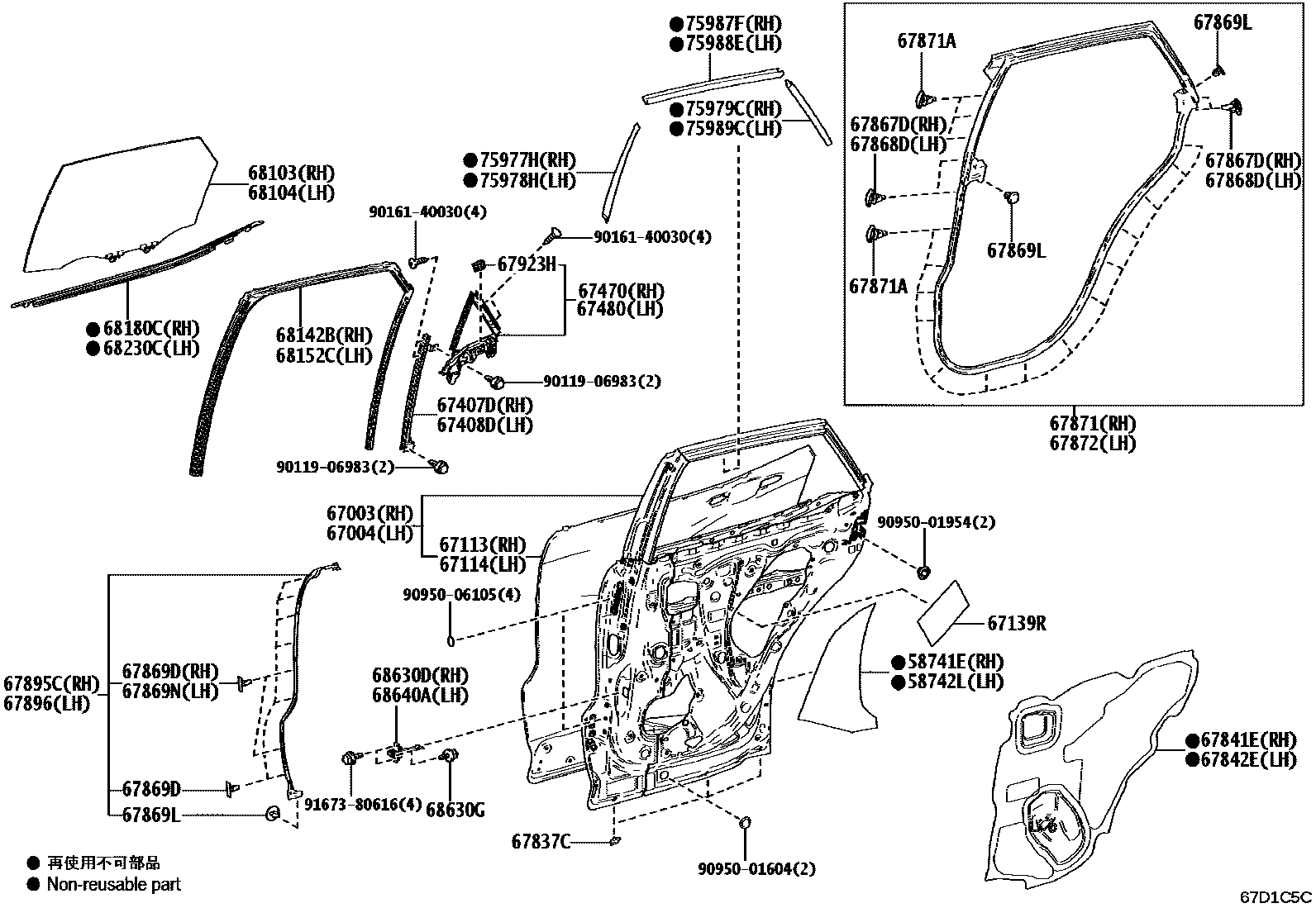

REAR DOOR PANEL & GLASS
58741EPROTECTOR, QUARTER PANEL, RH
58742LPROTECTOR, QUARTER PANEL, LH
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67470SEAL ASSY, REAR DOOR REAR GUIDE, RH
67480SEAL ASSY, REAR DOOR REAR GUIDE, LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869DCLIP, DOOR WEATHERSTRIP
67869LCLIP, REAR DOOR WEATHERSTRIP
67869NCLIP, REAR DOOR WEATHERSTRIP, RH
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
67923HRETAINER, DOOR CORNER SEAL
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142BRUN, REAR DOOR WINDOW, RH
68152CRUN, REAR DOOR GLASS, LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68630DCHECK ASSY, REAR DOOR, RH
68630GBOLT, REAR DOOR CHECK
68640ACHECK ASSY, REAR DOOR, LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75979CSTRIPE, REAR DOOR, OUTSIDE UPPER RH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988ESTRIPE, REAR DOOR, OUTSIDE LH
75989CSTRIPE, REAR DOOR, OUTSIDE UPPER LH
9011906983
main90119-06983
9016140030
main90161-40030
9095001604
main90950-01604
9095001954
main90950-01954
9095006105
main90950-06105
9167380616
main91673-80616
46 parts on this diagram · 2 diagrams in section
