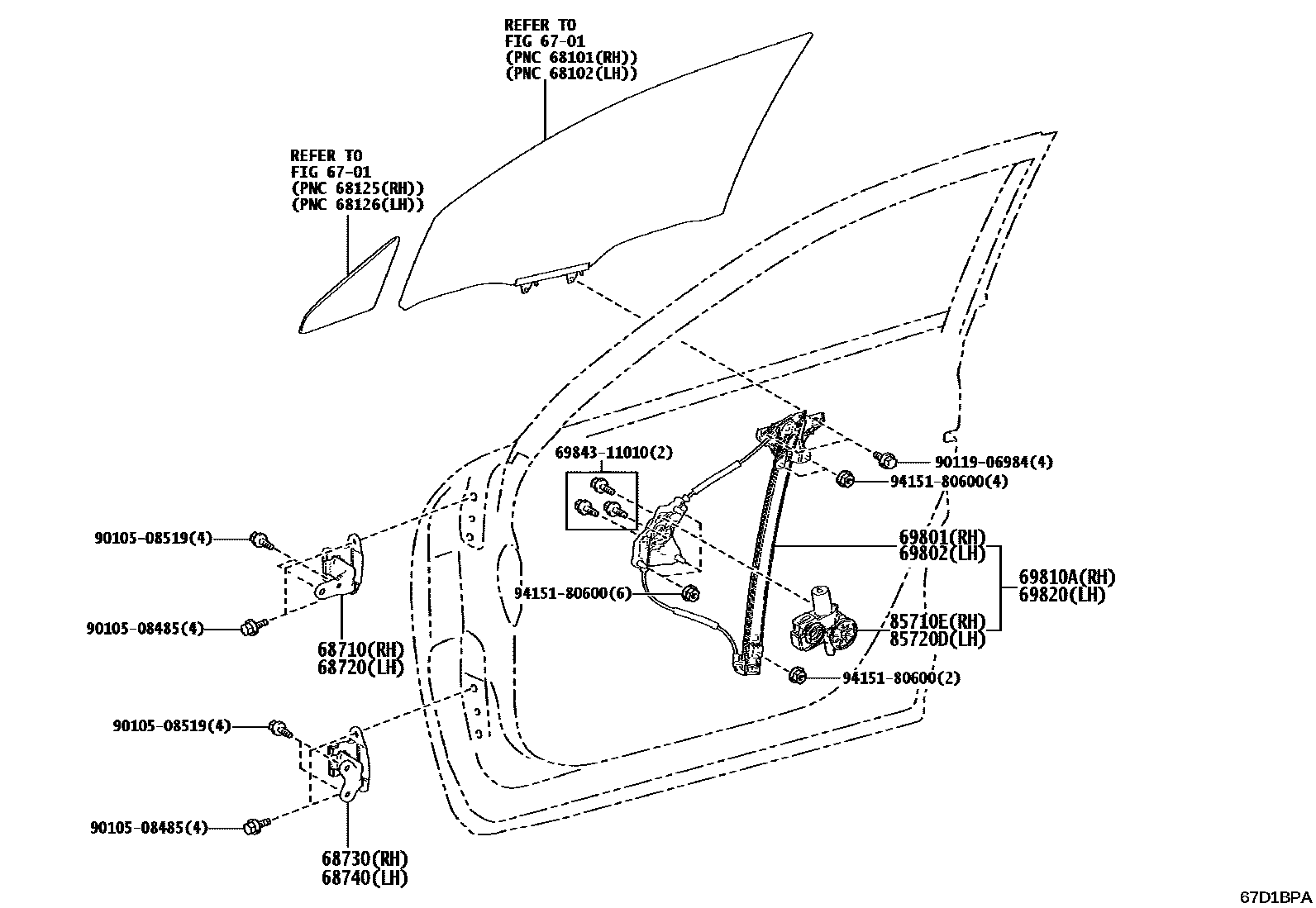

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52060iMAYH1#202312

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-52050iMAYH1#202312

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52060iMAYH1#202312

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52050iMAYH1#202312

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52210iMAYH1#202312

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52190iMAYH1#202312

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-52580iMAYH1#202312

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-52490iMAYH1#202312

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52380iMAYH1#202312

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52350iMAYH1#202312

6984311010

main69843-11010

9010508485

main90105-08485

9010508519

main90105-08519

9011906984

main90119-06984

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section
