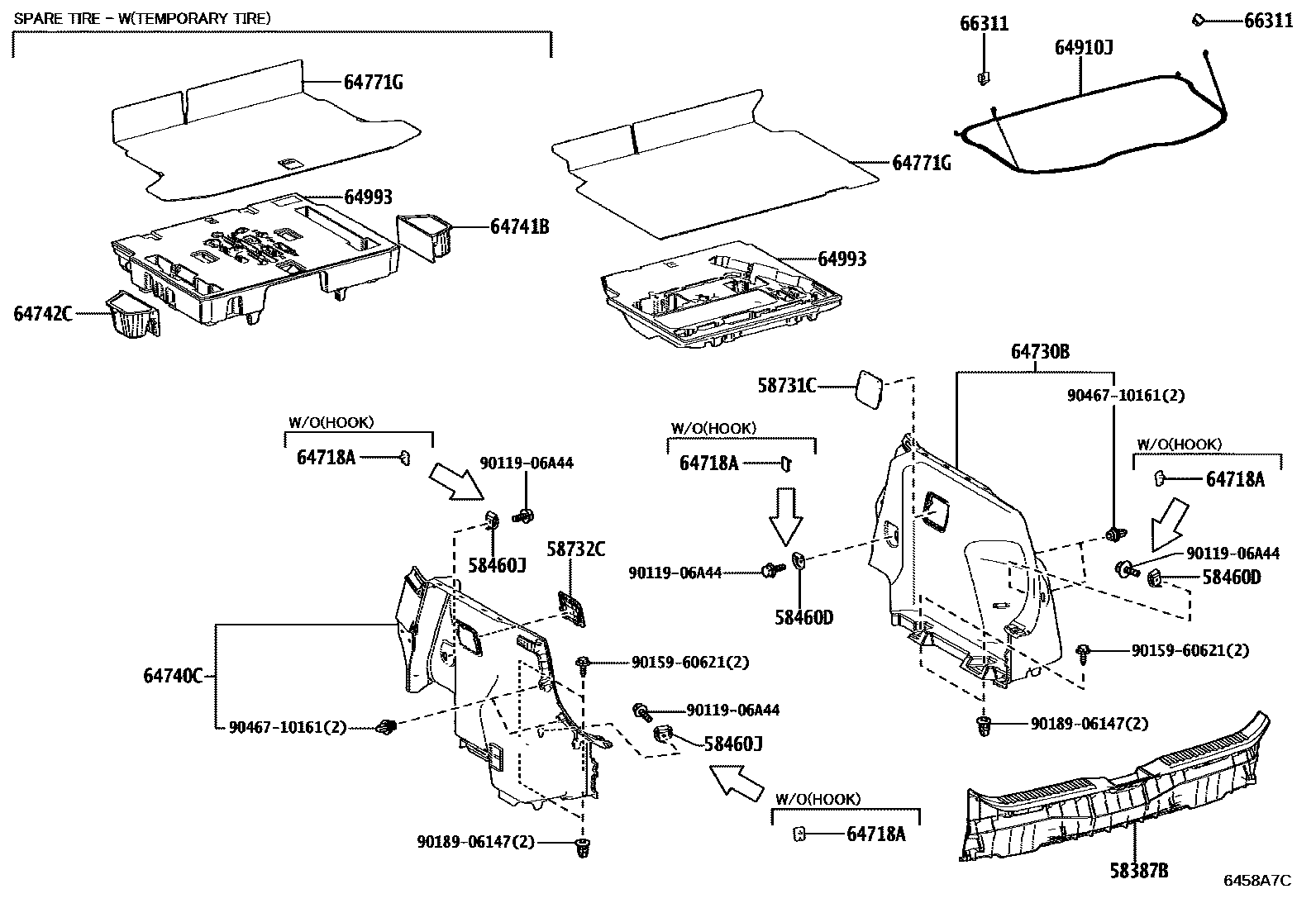

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM0#,2#,3#,4#,8#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
"ELEGANT"
"ACTIVE"
"RELAX"
"COOL"
58460JSTRIKER ASSY, LUGGAGE HOLD BELT
"ELEGANT"
"ACTIVE"
"RELAX"
"COOL"
58731CCAP, REAR ABSORBER
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM2#
"ELEGANT",BLACK,TRIM0#,2#,3#,4#
"ACTIVE",BLACK,TRIM0#,2#,3#,4#
"RELAX",BLACK,TRIM0#,2#,3#,4#
"COOL",BLACK,TRIM0#,2#,3#,4#
58732CCAP, REAR ABSORBER
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM2#
"ELEGANT",BLACK,TRIM0#,2#,3#,4#
"ACTIVE",BLACK,TRIM0#,2#,3#,4#
"RELAX",BLACK,TRIM0#,2#,3#,4#
"COOL",BLACK,TRIM0#,2#,3#,4#
64718ACOVER, DECK TRIM SERVICE HOLE
DK.GRAY
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,8#
INDONESIA SPEC,BLACK,TRIM0#,2#,3#,4#,8#
UKRAINE SPEC,BLACK,TRIM0#,2#,3#,4#,8#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,8#
INDONESIA SPEC,BLACK,TRIM0#,2#,3#,4#,8#
UKRAINE SPEC,BLACK,TRIM0#,2#,3#,4#,8#
64741BBOX, DECK SIDE TRIM, RH
INDONESIA SPEC
UKRAINE SPEC
64742CBOX, DECK SIDE TRIM, LH
INDONESIA SPEC
UKRAINE SPEC
64771GCOVER, SPARE WHEEL
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,8#
INDONESIA SPEC,BLACK,TRIM0#,2#,3#,4#,8#
UKRAINE SPEC,BLACK,TRIM0#,2#,3#,4#,8#
64910JCOVER ASSY, TONNEAU
BLACK,TRIM0#,2#,3#,4#,8#
TONNEAU COVER-WITH(TONNEAU COVER),BLACK,TRIM0#,2#,3#,4#,8#
64993BOX, DECK FLOOR, REAR
INDONESIA SPEC
UKRAINE SPEC
66311HOOK, ROPE
BLACK,TRIM0#,2#,3#,4#,8#
TONNEAU COVER-WITH(TONNEAU COVER),BLACK,TRIM0#,2#,3#,4#,8#
9011906A44
main90119-06A44
9015960621
main90159-60621
9018906147
main90189-06147
9046710161
main90467-10161
18 parts on this diagram · 2 diagrams in section
