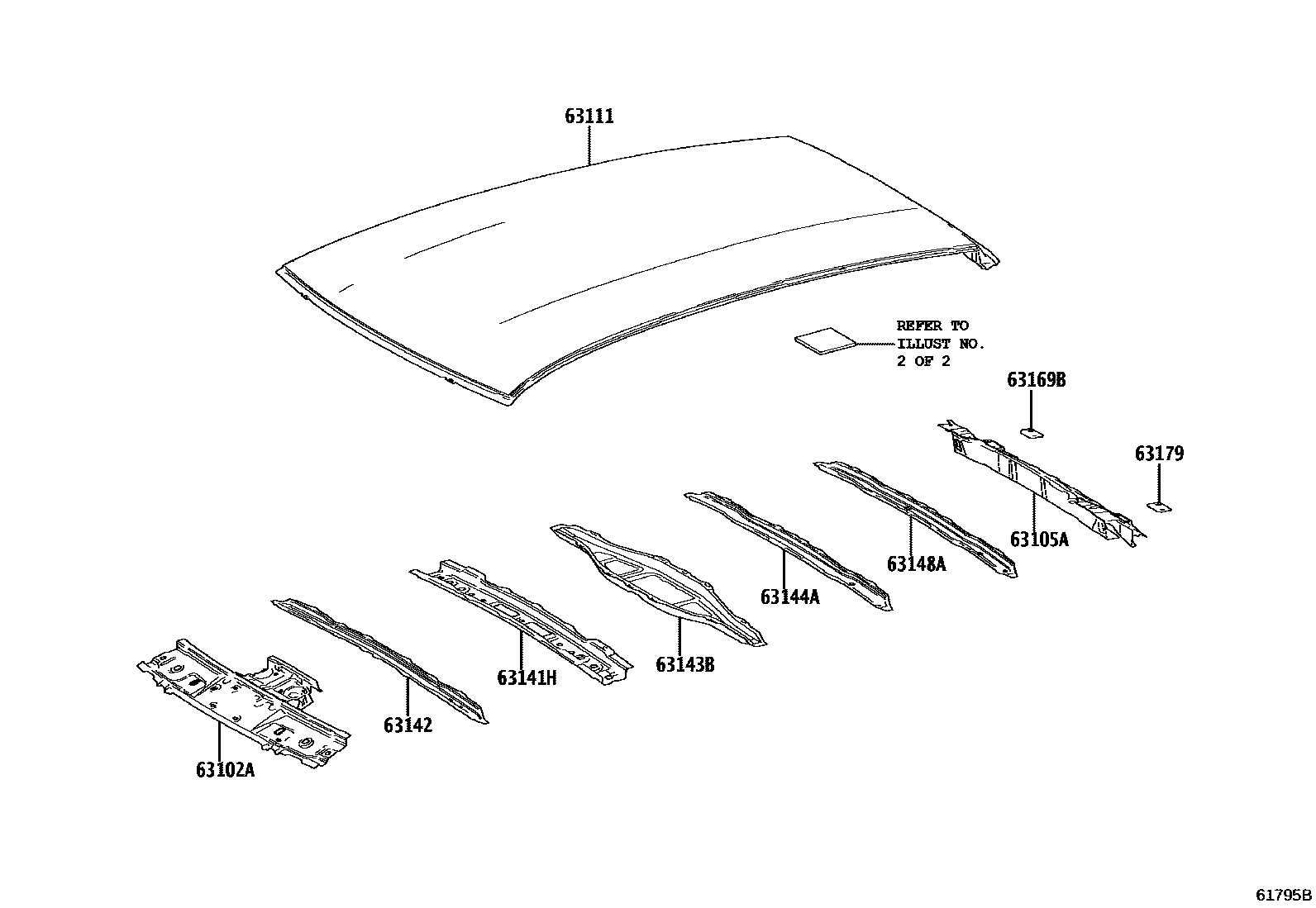

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1HIGH DECREMENT MASTIC SEAL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52300iMAYH1#202312

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52260iMAYH1#202312

63111PANEL, ROOF

main63111-52520iMAYH1#202312

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52240iMAYH1#202312

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-52150iMAYH1#202312

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52261iMAYH1#202312

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-52210iMAYH1#202312

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-52200iMAYH1#202312

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iMAYH1#202312

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iMAYH1#202312

10 parts on this diagram · 2 diagrams in section
