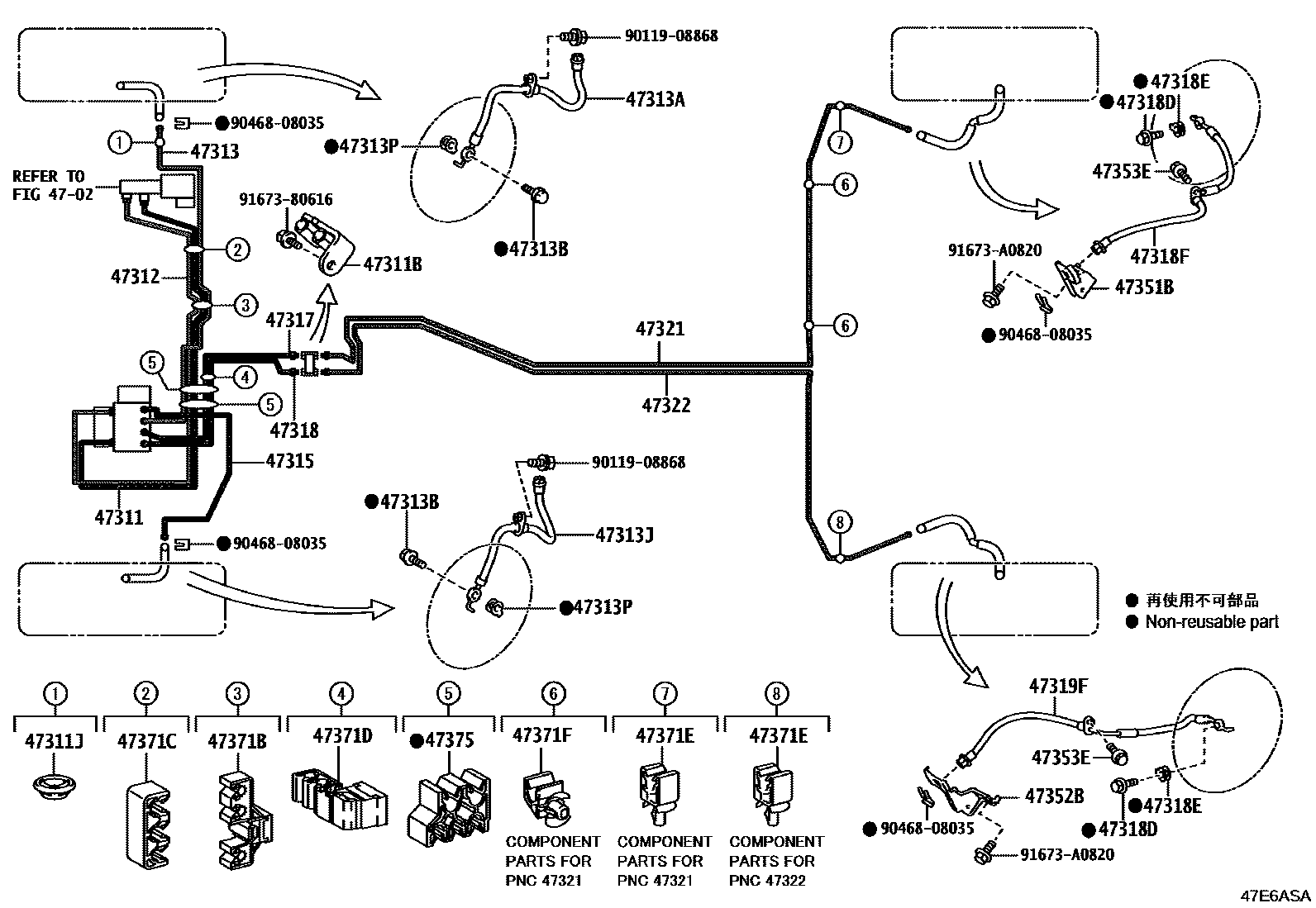

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE ACTUATOR 0006 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-52860iMAYH1#..LHD202312

main47311-52870iMAYH1#..RHD¥1,140202312

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10317iMAYH1#¥730202312

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-25037iMAYH1#¥100202312

47312TUBE, FRONT BRAKE, NO.2

main47312-52860iMAYH1#..LHD202312

main47312-52870iMAYH1#..RHD¥1,020202312

47313TUBE, FRONT BRAKE, NO.3

main47313-52410iMAYH1#..LHD202312

main47313-52420iMAYH1#..RHD¥910202312

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02J36iMAYH1#¥1,930202312

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iMAYH1#¥220202312

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02J37iMAYH1#¥1,930202312

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iMAYH1#¥310202312

47315TUBE, FRONT BRAKE, NO.5

main47315-52400iMAYH1#..RHD¥460202312

main47315-52410iMAYH1#..LHD202312

47317TUBE, FRONT BRAKE, NO.7

main47317-52400iMAYH1#..RHD¥590202312

main47317-52410iMAYH1#..LHD202312

47318TUBE, FRONT BRAKE, NO.8

main47318-52400iMAYH1#..RHD¥590202312

main47318-52410iMAYH1#..LHD202312

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iMAYH1#¥220202312

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iMAYH1#¥310202312

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02J49iMAYH15¥1,170202312

main90947-02K51iMAYH10¥1,800202312

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02J49iMAYH15¥1,170202312

main90947-02K52iMAYH10¥1,800202312

47321TUBE, REAR BRAKE, NO.1

main47321-52540iMAYH15¥2,980202312

main47321-K0020iMAYH10¥2,050202312

47322TUBE, REAR BRAKE, NO.2

main47322-52490iMAYH15¥2,480202312

main47322-K0010iMAYH10¥1,690202312

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-K0010iMAYH10¥720202312

main47351-K0050iMAYH15¥820202312

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-K0010iMAYH10¥720202312

main47352-K0050iMAYH15¥820202312

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-08868iMAYH10¥70202312

47371BCLAMP, BRAKE TUBE, NO.6

main47371-50240iMAYH1#..RHD¥370202312

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01E43iMAYH1#..RHD¥110202312

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01E62iMAYH1#..RHD¥170202312

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E01iMAYH1#¥110202312

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E10iMAYH10¥110202312

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E40iMAYH1#..LHD¥110202312

9011908868

main90119-08868¥70

9046808035

main90468-08035¥110

9167380616

main91673-80616¥60

91673A0820

main91673-A0820¥80

32 parts on this diagram · 6 diagrams in section
