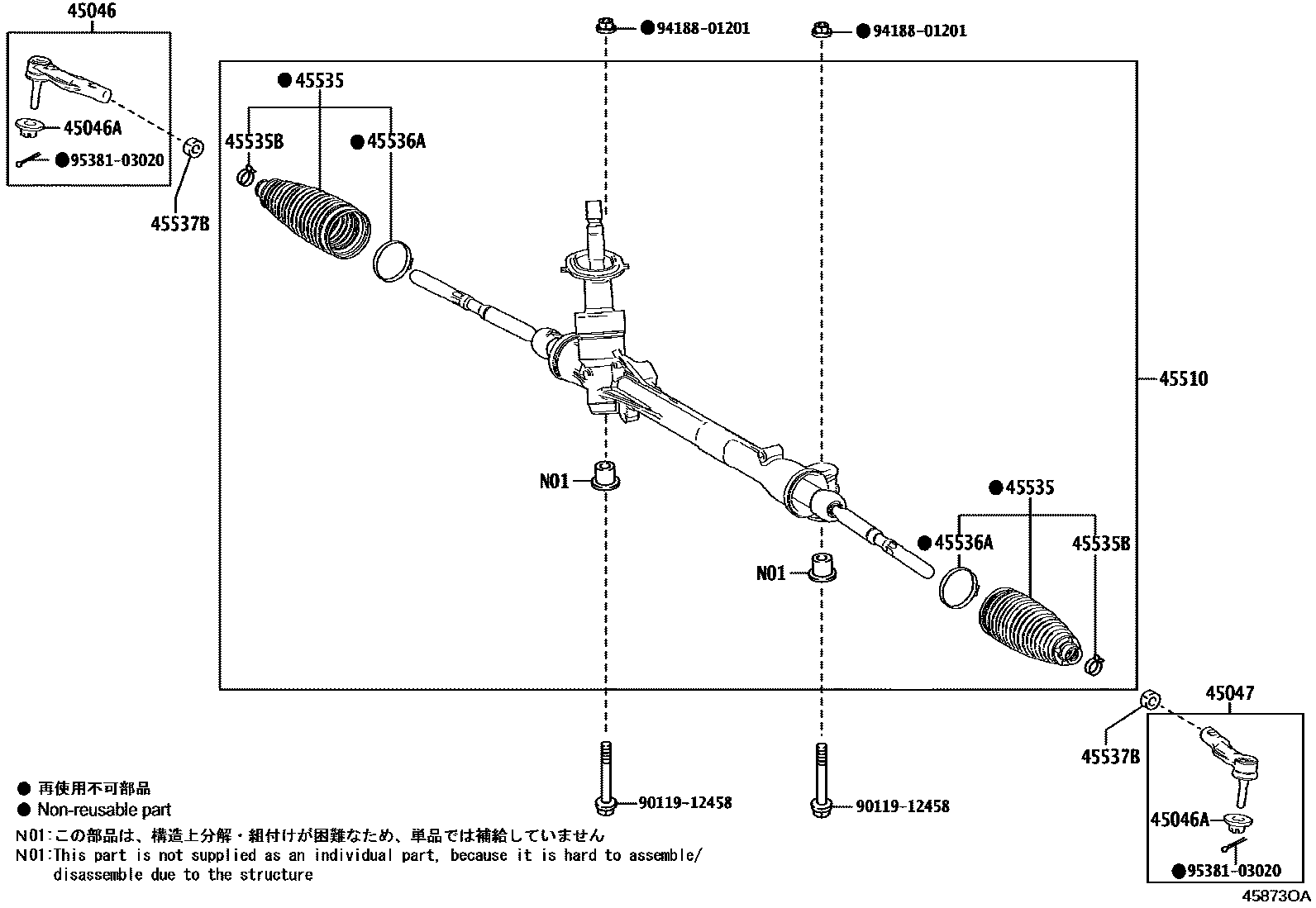

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09892iMAYH1#202312

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iMAYH1#202312

45047END SUB-ASSY, TIE ROD, LH

main45047-09471iMAYH1#202312

45510GEAR ASSY, STEERING

main45510-52470iMAYH1#..LHD202312

main45510-52480iMAYH1#..RHD202312

45535BOOT, STEERING RACK, NO.1

main45535-19025iMAYH1#202312

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42020iMAYH1#202312

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010iMAYH1#202312

45537BNUT, RACK END LOCK

main90178-16001iMAYH1#202312

9011912458

main90119-12458

9418801201

main94188-01201

9538103020

main95381-03020

11 parts on this diagram · 2 diagrams in section
