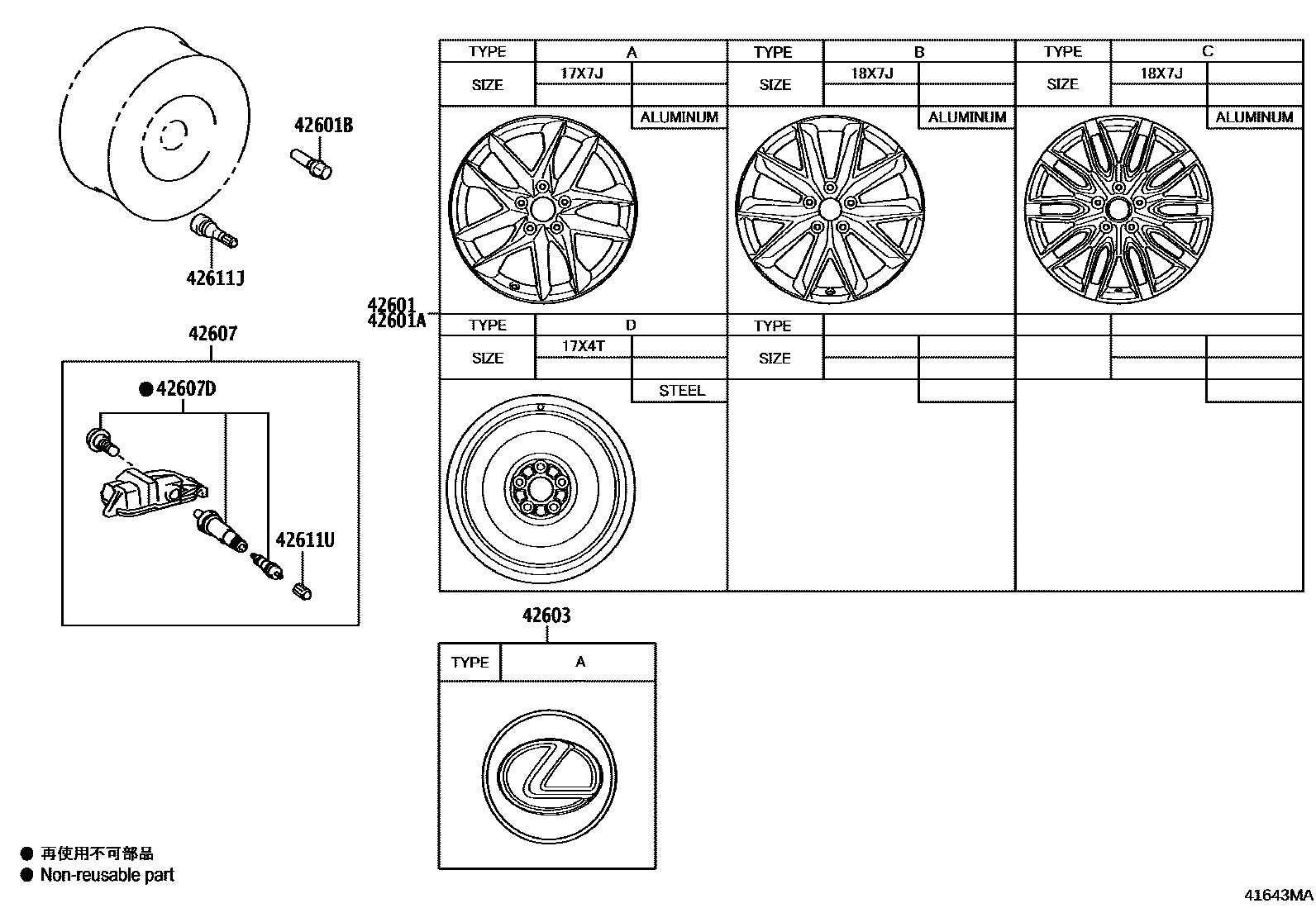

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-52D90iMAYH1#..ARL,GEN,TWN202312

17X7J, #,TYPE A:REFER ILLUST.

main42611-52E00iMAYH1#..EUR,TUR202312

17X7J, #,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-30010iMAYH10..LHD..(GEN,TUR)202312

17X4T,TYPE D:REFER ILLUST.

main4261B-30010iMAYH10..LHD..(GEN,TUR)202312

17X4T,INDONESIA SPEC,TYPE D:REFER ILLUST.

main4261B-30010iMAYH10..LHD..(GEN,TUR)202312

17X4T,UKRAINE SPEC,TYPE D:REFER ILLUST.

42601BBOLT, HUB (FOR AXLE)

main90942-02103iMAYH1#202312

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53130iMAYH1#202312

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-52070iMAYH1#202312

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05051iMAYH1#202312

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMAYH10..LHD..(GEN,TUR)202312

INDONESIA SPEC

main90942-05009iMAYH10..LHD..(GEN,TUR)202312

UKRAINE SPEC

42611UCAP, TIRE VALVE

main90942-05048iMAYH1#202312

8 parts on this diagram · 2 diagrams in section
