REAR AXLE SHAFT & HUB

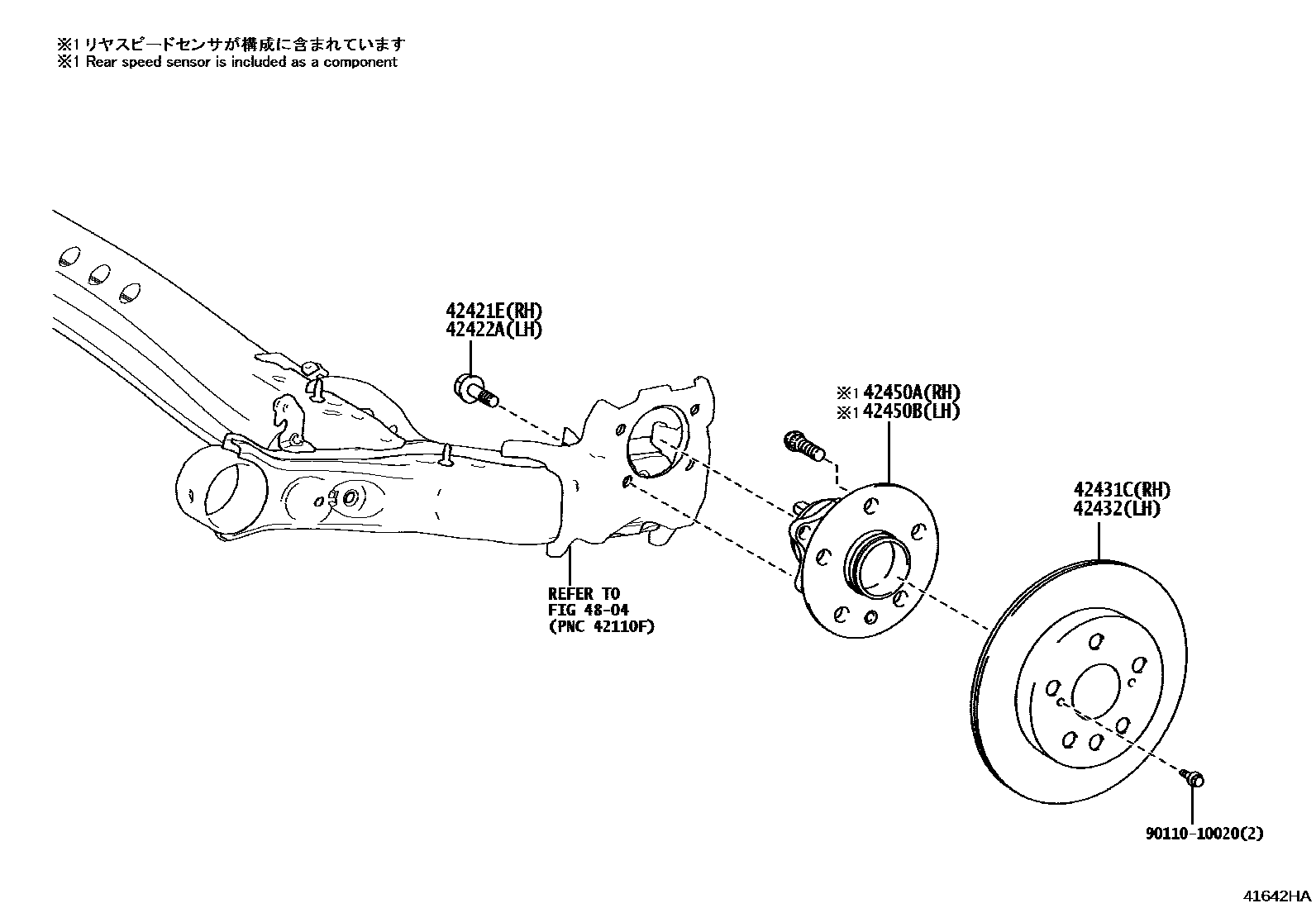

Parts diagram
42421EBOLT (FOR REAR AXLE BEARING CASE RH)
main90105-12408×4i202312
42422ABOLT (FOR REAR AXLE BEARING CASE LH)
main90105-12408×4i202312
42431CDISC, REAR RH
main42431-47070i202312
main42431-52200i202312
42432DISC, REAR LH
main42431-47070i202312
main42431-52200i202312
42450AHUB & BEARING ASSY, REAR AXLE, RH
main42410-47040i202312
main42450-52180i202312
42450BHUB & BEARING ASSY, REAR AXLE, LH
main42410-47040i202312
main42450-52180i202312
4804
9011010020
main90110-10020

8 parts on this diagram · 3 diagrams in section
