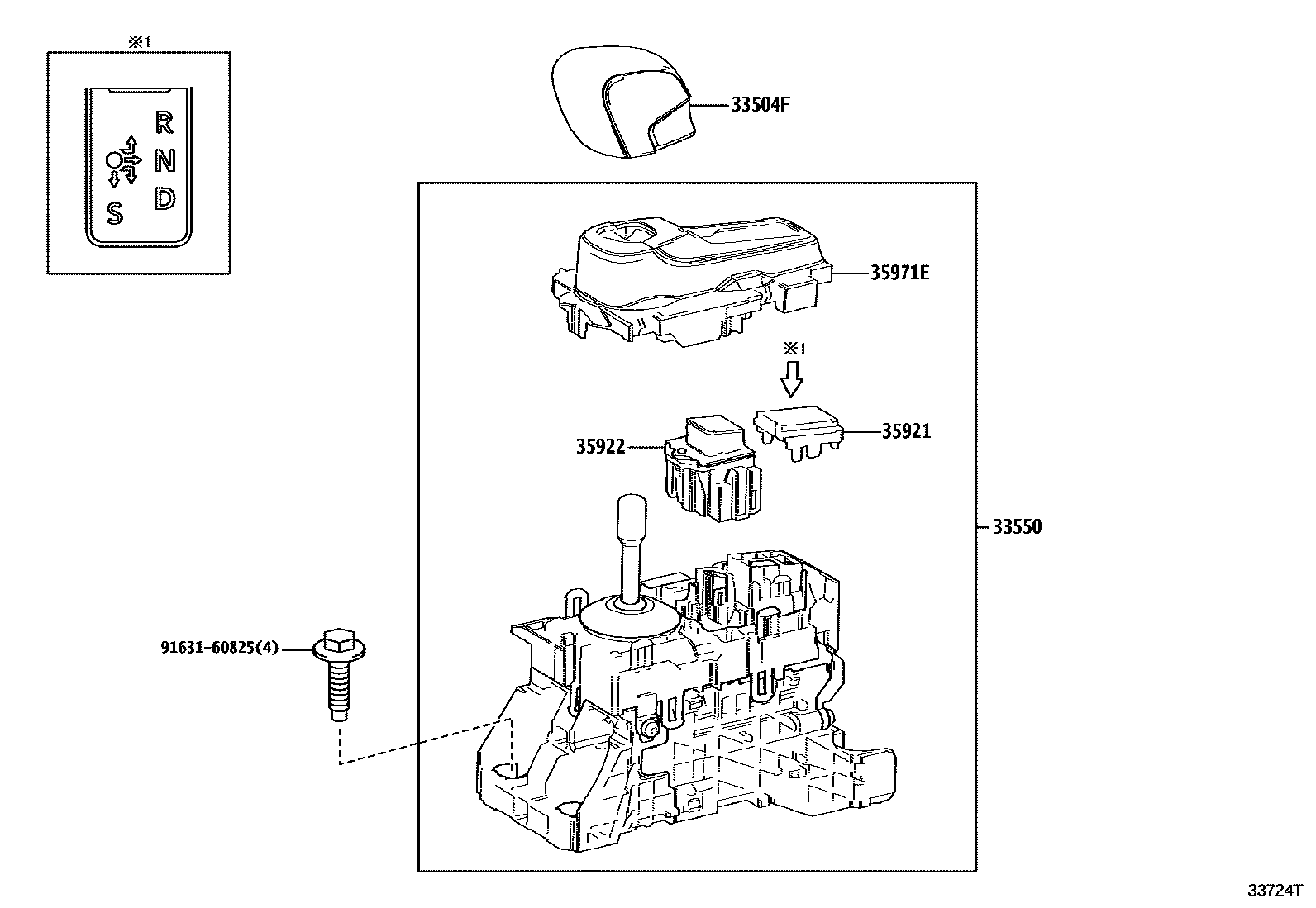

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-48140-C0iMAYH1#202312

BLACK,TRIM0#,2#,4#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-52J80iMAYH1#..LHD202312

main33550-52K00iMAYH1#..RHD202312

*614

35921PLATE, CONTROL POSITION INDICATOR

main35921-52340iMAYH1#..LHD202312

main35921-52350iMAYH1#..RHD202312

35922KNOB, TRANSMISSION PARKING SWITCH

main35922-78010iMAYH1#202312

35971EHOUSING, POSITION INDICATOR

main35971-52840iMAYH1#..LHD202312

main35971-52850iMAYH1#..RHD202312

9163160825

main91631-60825

6 parts on this diagram · 2 diagrams in section
