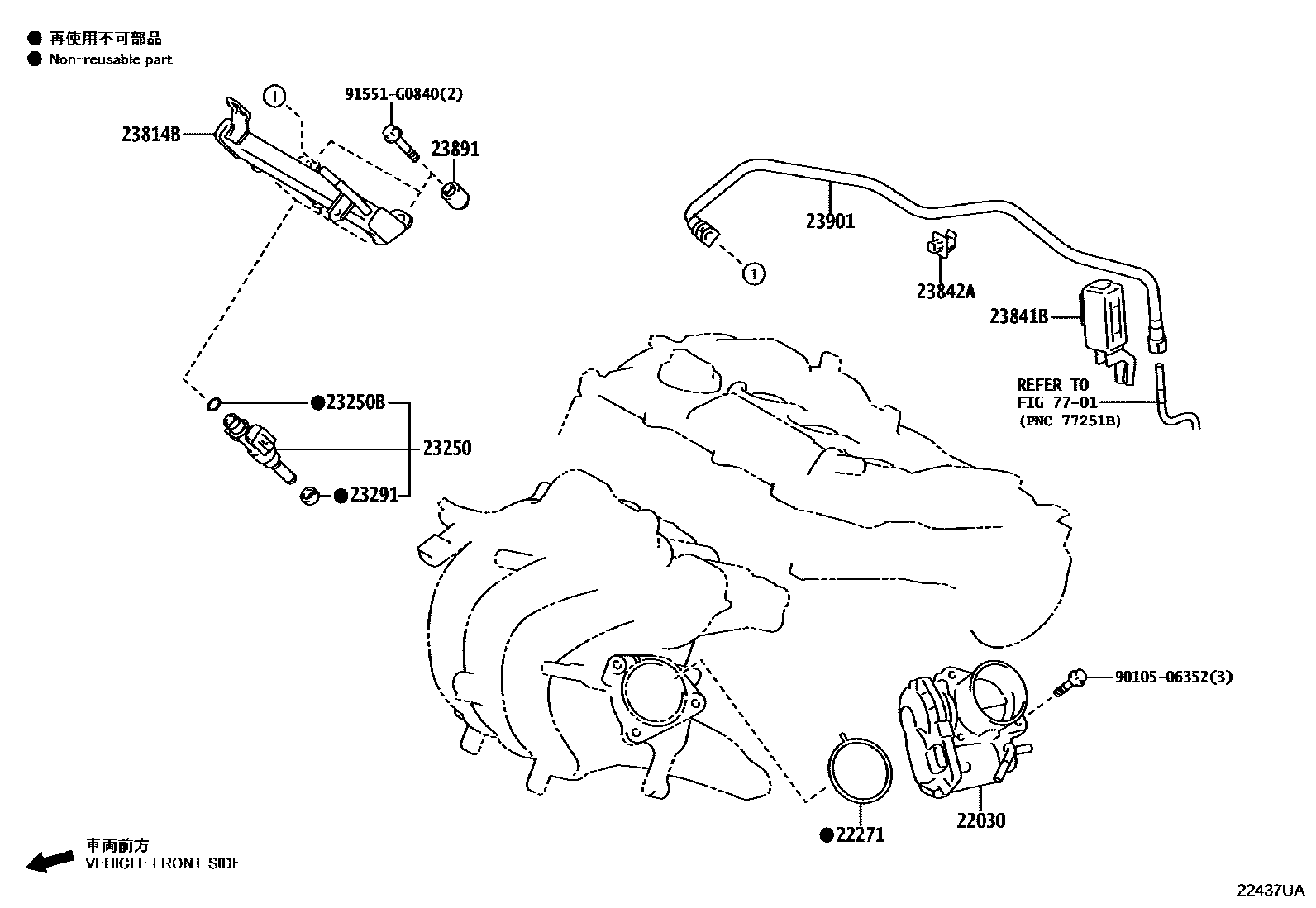

FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
7701
9010506352
main90105-06352
91551G0840
main91551-G0840
13 parts on this diagram · 1 diagram in section
