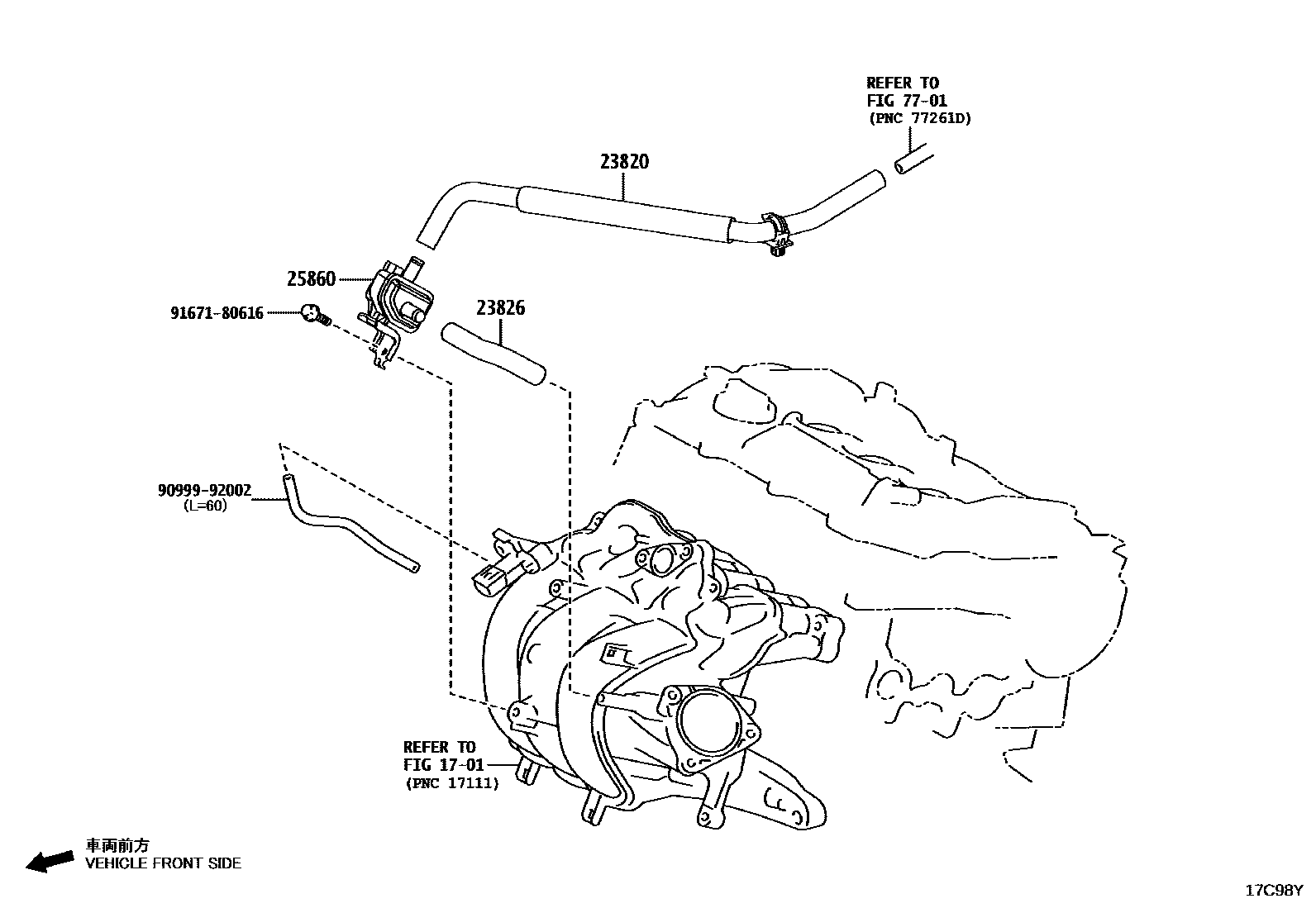

VACUUM PIPING

0001 1 0002 1W(GPF)

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-15020iM15AFXE..MAYH1#202312

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-15020iM15AFXE..MAYH1#202312

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-15050iM15AFXE..MAYH1#202312

7701

9099992002

main90999-92002

9167180616

main91671-80616

7 parts on this diagram · 2 diagrams in section
