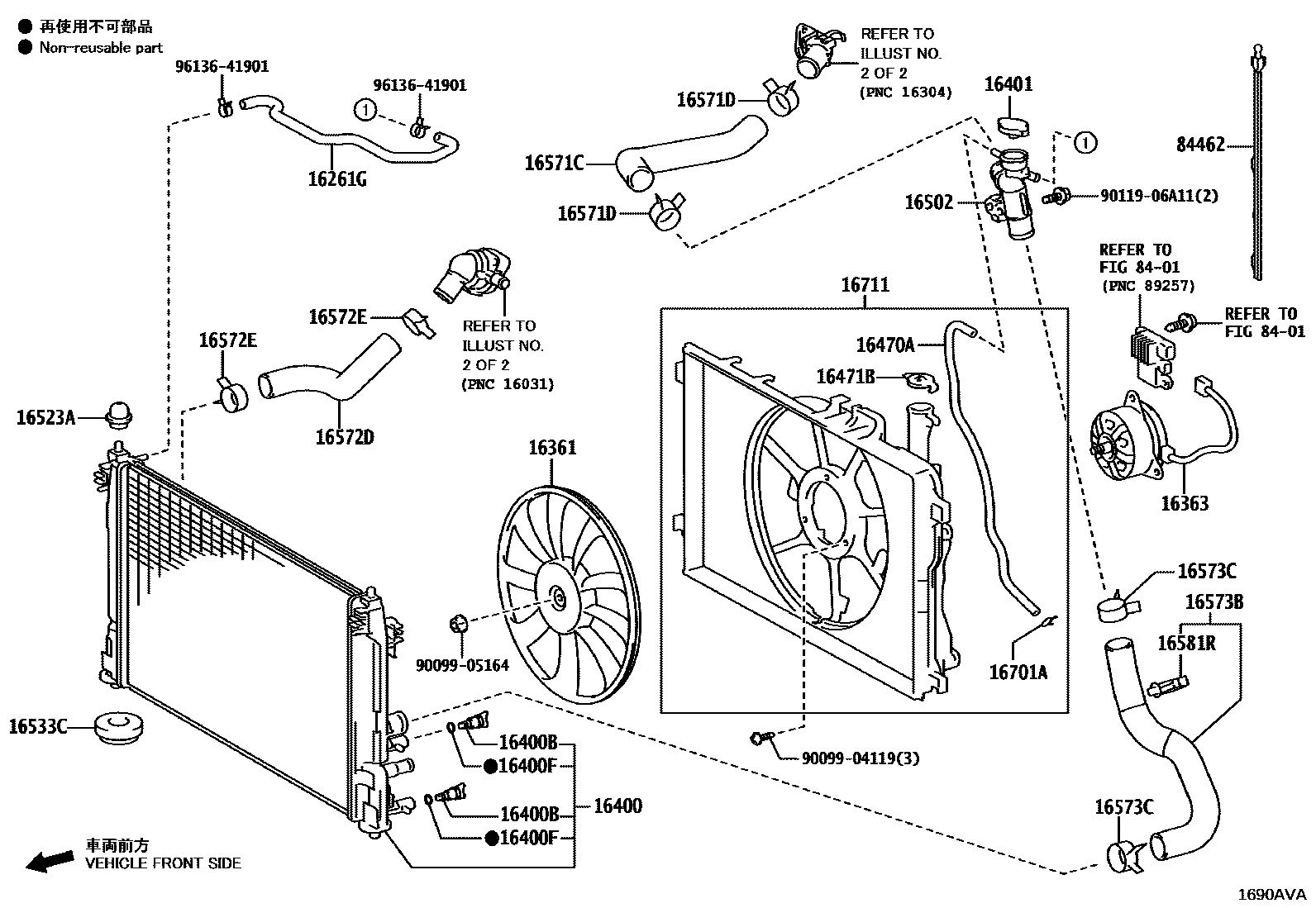

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16361FAN
CYPRUS SPEC
SLOVENIA SPEC
CROATIA SPEC
GREECE SPEC
CANARY SPEC
ISRAEL SPEC
REUNION SPEC
BOS.HERZE,MACHE,SPEC
MONTENEGRO SPEC
UKRAINE SPEC
MALTA SPEC
SERBIA SPEC
16363MOTOR, COOLING FAN
TYPE B:REFER ILLUST.
CYPRUS SPEC,TYPE B:REFER ILLUST.
SLOVENIA SPEC,TYPE B:REFER ILLUST.
CROATIA SPEC,TYPE B:REFER ILLUST.
GREECE SPEC,TYPE B:REFER ILLUST.
CANARY SPEC,TYPE B:REFER ILLUST.
ISRAEL SPEC,TYPE B:REFER ILLUST.
REUNION SPEC,TYPE B:REFER ILLUST.
BOS.HERZE,MACHE,SPEC,TYPE B:REFER ILLUST.
MONTENEGRO SPEC,TYPE B:REFER ILLUST.
UKRAINE SPEC,TYPE B:REFER ILLUST.
MALTA SPEC,TYPE B:REFER ILLUST.
SERBIA SPEC,TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
16400RADIATOR ASSY
CYPRUS SPEC
SLOVENIA SPEC
CROATIA SPEC
GREECE SPEC
CANARY SPEC
ISRAEL SPEC
REUNION SPEC
BOS.HERZE,MACHE,SPEC
MONTENEGRO SPEC
UKRAINE SPEC
MALTA SPEC
SERBIA SPEC
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
CYPRUS SPEC
SLOVENIA SPEC
CROATIA SPEC
GREECE SPEC
CANARY SPEC
ISRAEL SPEC
REUNION SPEC
BOS.HERZE,MACHE,SPEC
MONTENEGRO SPEC
UKRAINE SPEC
MALTA SPEC
SERBIA SPEC
16471BCAP, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16523ACUSHION, RADIATOR SUPPORT
16533CGROMMET(FOR RADIATOR SUPPORT)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16581RCLAMP, HOSE(FOR RADIATOR HOSE NO.3)
16701ACLIP(FOR FAN SHROUD)
16711SHROUD, FAN
CYPRUS SPEC
SLOVENIA SPEC
CROATIA SPEC
GREECE SPEC
CANARY SPEC
ISRAEL SPEC
REUNION SPEC
BOS.HERZE,MACHE,SPEC
MONTENEGRO SPEC
UKRAINE SPEC
MALTA SPEC
SERBIA SPEC
8401
84462FLOAT, LEVEL WARNING
9009904119
main90099-04119
9009905164
main90099-05164
9011906A11
main90119-06A11
9613641901
main96136-41901
27 parts on this diagram · 3 diagrams in section
