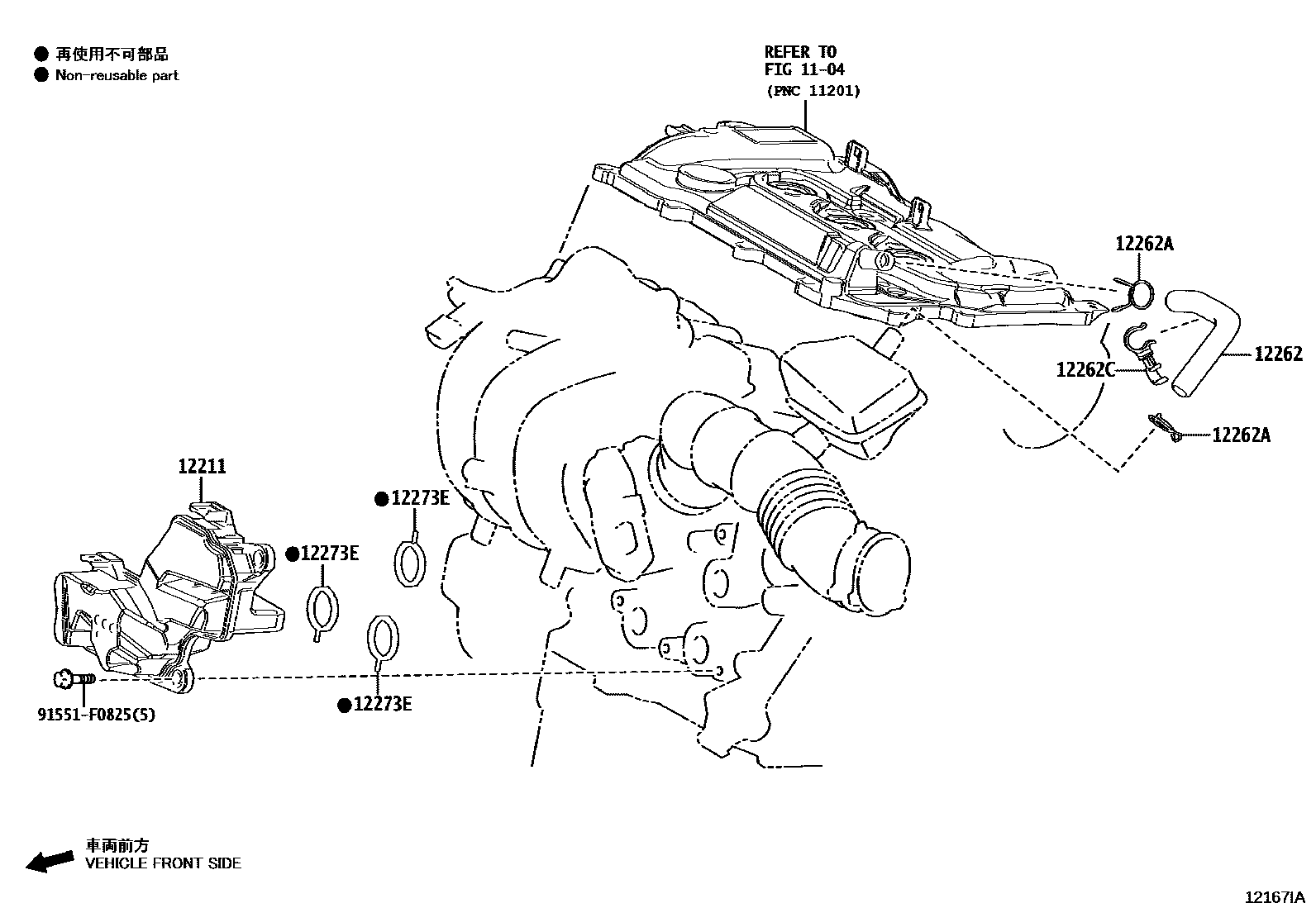

VENTILATION HOSE

1104

12211CASE, VENTILATION, NO.1

main12211-15061iM15AFXE..MAYH1#202312

12262HOSE, VENTILATION, NO.2

main12262-15140iM15AFXE..MAYH1#202312

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iM15AFXE..MAYH1#202312

12262CCLAMP, VENTILATION HOSE, NO.2

main44783-33020iM15AFXE..MAYH1#202312

12273EGASKET(FOR VENTILATION CASE)

main12273-15010iM15AFXE..MAYH1#202312

91551F0825

main91551-F0825

7 parts on this diagram · 1 diagram in section
