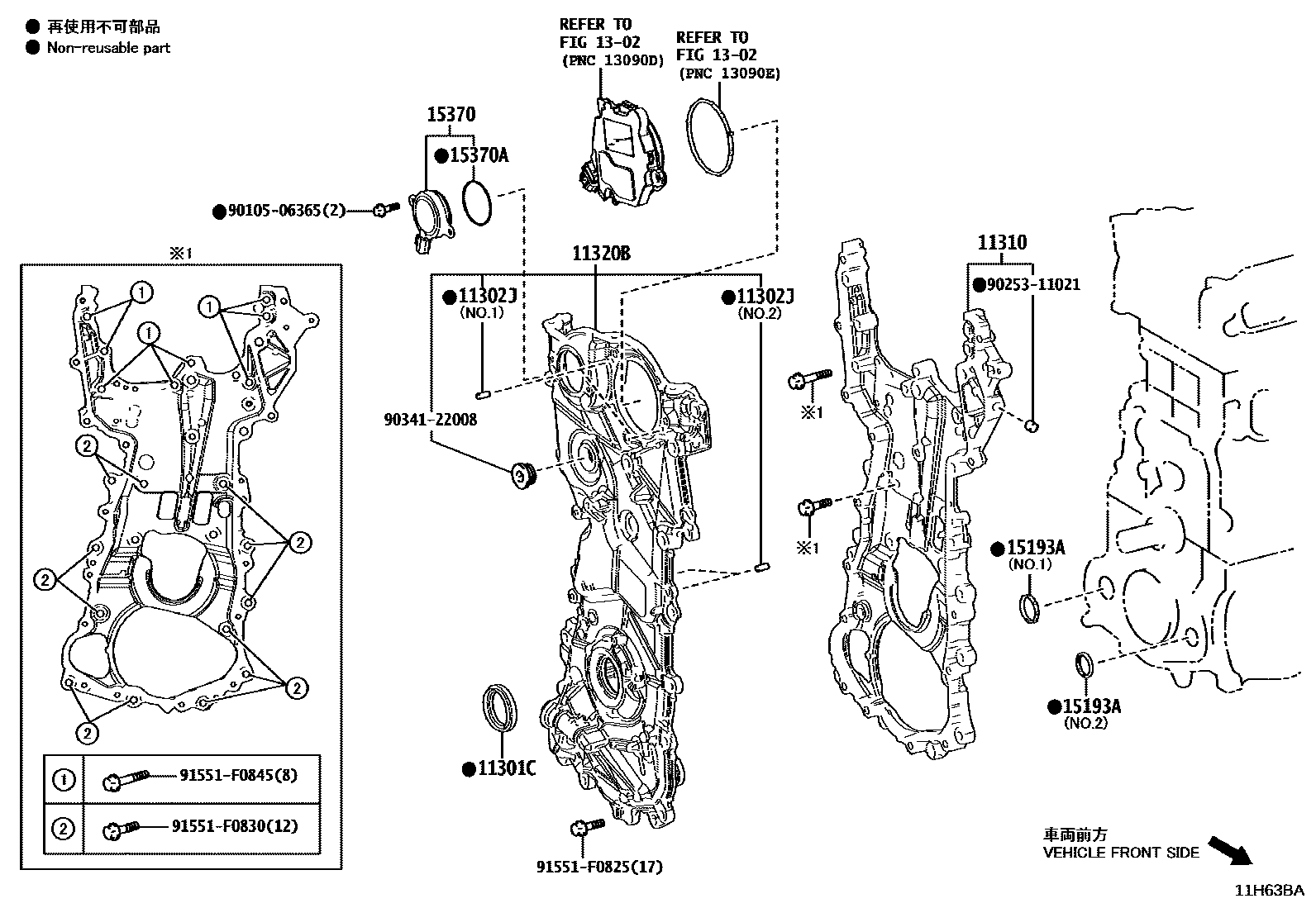

TIMING GEAR COVER & REAR END PLATE
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11310COVER ASSY, TIMING CHAIN
11320BCOVER ASSY, TIMING CHAIN, NO.2
1302
15193AGASKET, OIL PUMP
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
9010506365
main90105-06365
9025311021
main90253-11021
9034122008
main90341-22008
91551F0825
main91551-F0825
91551F0830
main91551-F0830
91551F0845
main91551-F0845
14 parts on this diagram · 1 diagram in section
