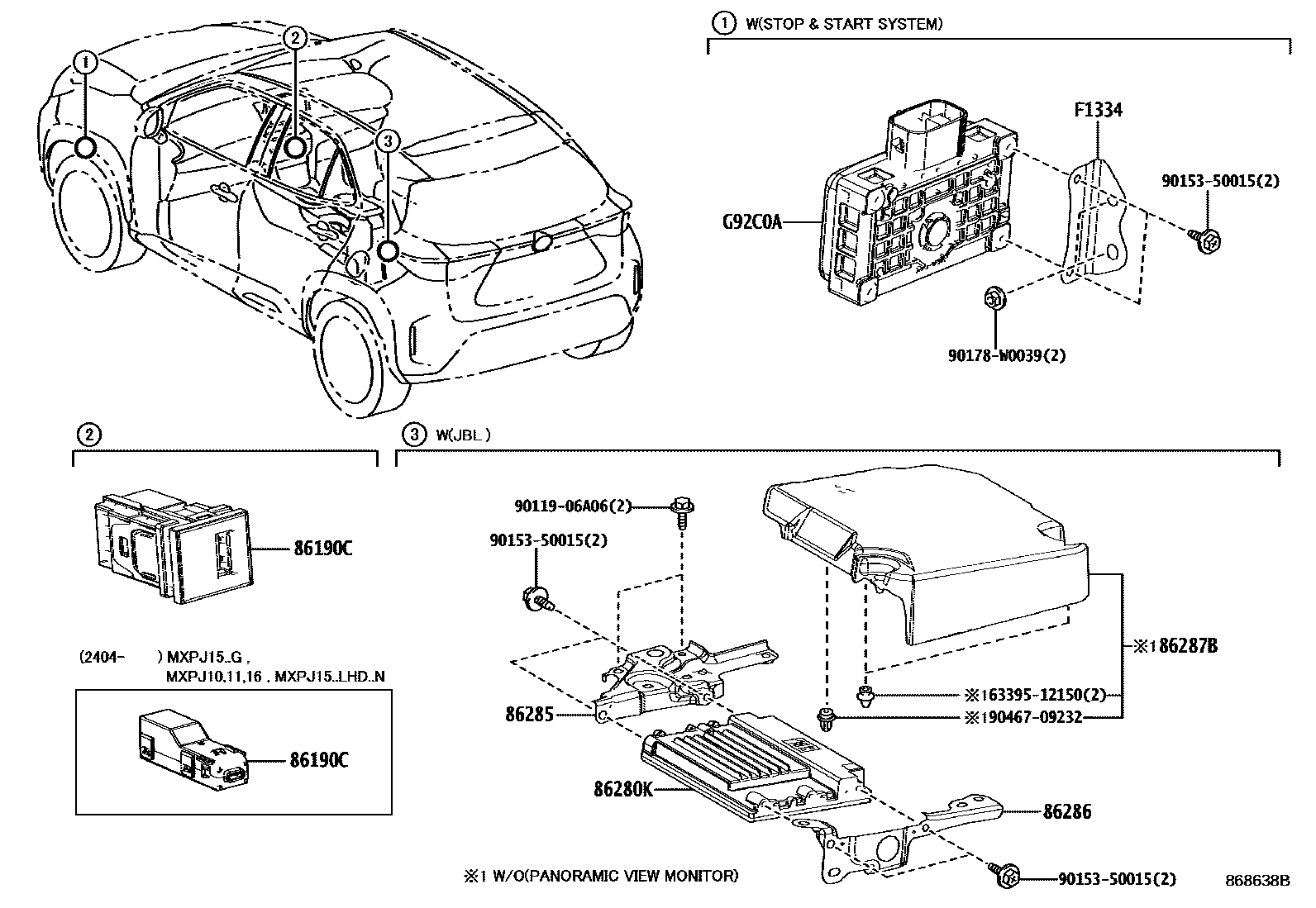

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1AMPLIFIER & USB JACK 0002 1CONDENSER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12070iMXPB10..RHD..6F202107-202206

main86190-12070iMXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404

AUDIO-7INCH DISPLAY & WITHOUT(DAB)

main86190-12070iMXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404

AUDIO-7INCH DISPLAY & WITH(DAB)

main86190-12070iMXPJ10..R202109-202404

AUDIO-8INCH DISPLAY & WITHOUT(DAB)

main86190-46010iMXPJ15..G;MXPJ15..LHD..N202404-202504

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-0D020iMXPB10..RHD..6F..N202107-202404

SPEAKER-8SPEAKER

main86280-0D020iMXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404

SPEAKER-8SPEAKER&BACK MONITOR-WITH(*PVM)

86285BRACKET, AMPLIFIER, NO.1

main86285-K0010iMXPB10..RHD..6F..N202107-202404

SPEAKER-8SPEAKER

main86285-K0010iMXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404

SPEAKER-8SPEAKER&BACK MONITOR-WITH(*PVM)

86286BRACKET, AMPLIFIER, NO.2

main86286-K0010iMXPB10..RHD..6F..N202107-202404

SPEAKER-8SPEAKER

main86286-K0010iMXPJ15..G;MXPJ10..G,N,V;MXPJ15..LHD..N202107-202404

SPEAKER-8SPEAKER&BACK MONITOR-WITH(*PVM)

86287BCOVER, AMPLIFIER

main86796-K0010iMXPB10..RHD..6F..N202107-202404

SPEAKER-8SPEAKER

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF1334K0010iMXPB10..LHD..6F..N202107-202207

WITH(STOP & START SYSTEM)&SPEAKER-8SPEAKER

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

mainG92C030020iMXPB10..LHD..6F..N202107-202207

WITH(STOP & START SYSTEM)&SPEAKER-8SPEAKER

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150

9011906A06

main90119-06A06

9015350015

main90153-50015

90178W0039

main90178-W0039

9046709232

main90467-09232

12 parts on this diagram · 2 diagrams in section
