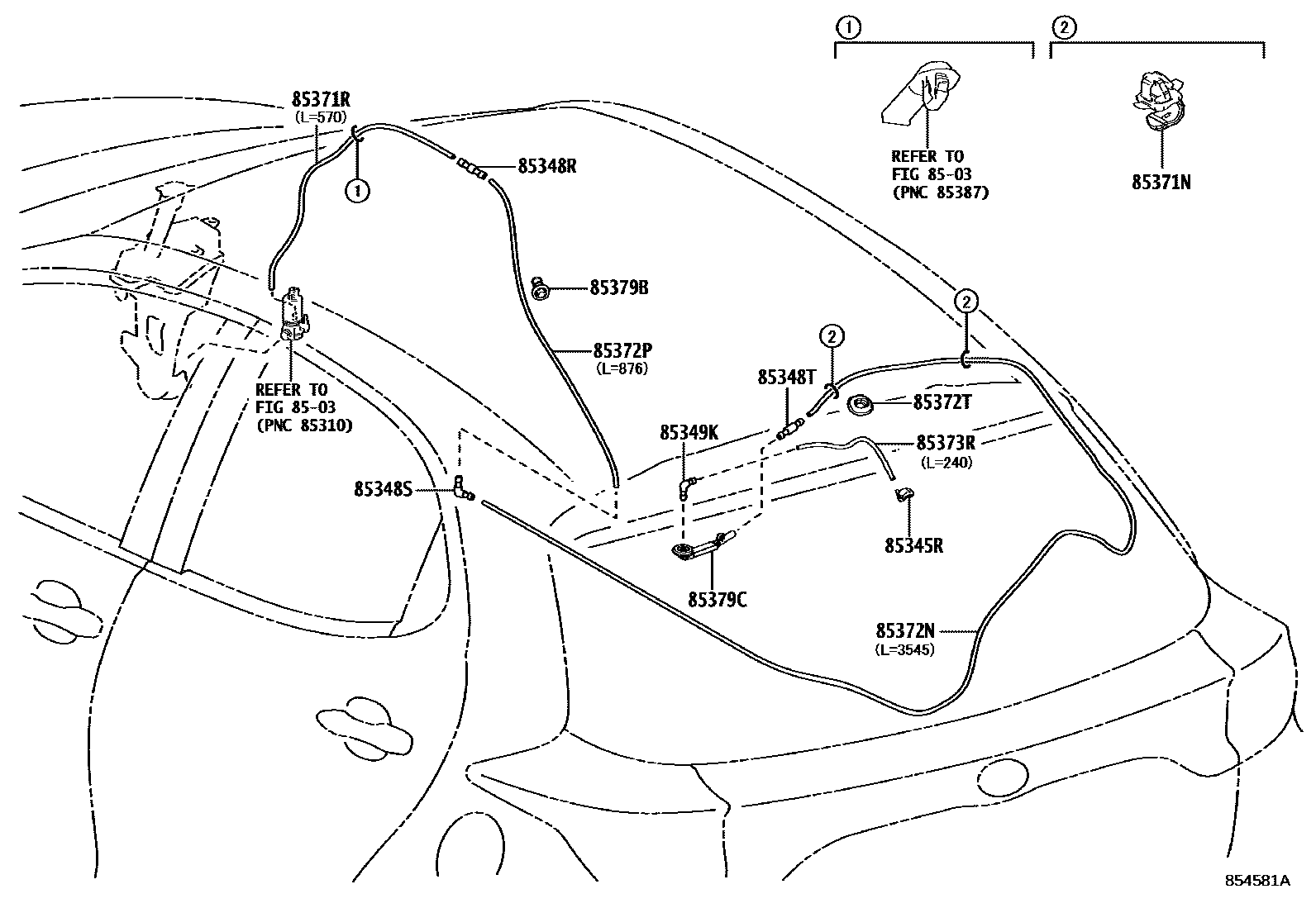

REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-0D110iMXPB10..LHD..6F;MXPB10,MXPJ1#..CVT202107-202504

main85391-0D120iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202306-202404

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-05050iMXPB10..RHD..6F202107-202504

85348SJOINT, REAR WASHER ELBOW, NO.1

main85375-K0030iMXPJ10,11,16202107-202504

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-05050iMXPB10..RHD..6F202107-202504

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iMXPB10..RHD..6F202107-202504

85371NCLAMP, REAR WASHER HOSE

main85371-12040iMXPB10..RHD..6F202107-202504

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-16009iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107-202504

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-46107iMXPB10..RHD..6F202107-202504

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90069-16009iMXPB10..RHD..6F202107-202504

85372TGROMMET, WASHER

main85373-0D010iMXPJ10,11,16202210-202504

main85373-0D060iMXPB10..LHD..6F;MXPB10,MXPJ1#..CVT202107-202209

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90069-16009iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

85379BGROMMET, WASHER, A

main85379-12850iMXPB10..RHD..6F202107-202504

85379CGROMMET, REAR WASHER HOSE NO.1

main85373-0D022iMXPJ15..G;MXPJ15..LHD..N202107-202504

14 parts on this diagram · 1 diagram in section
