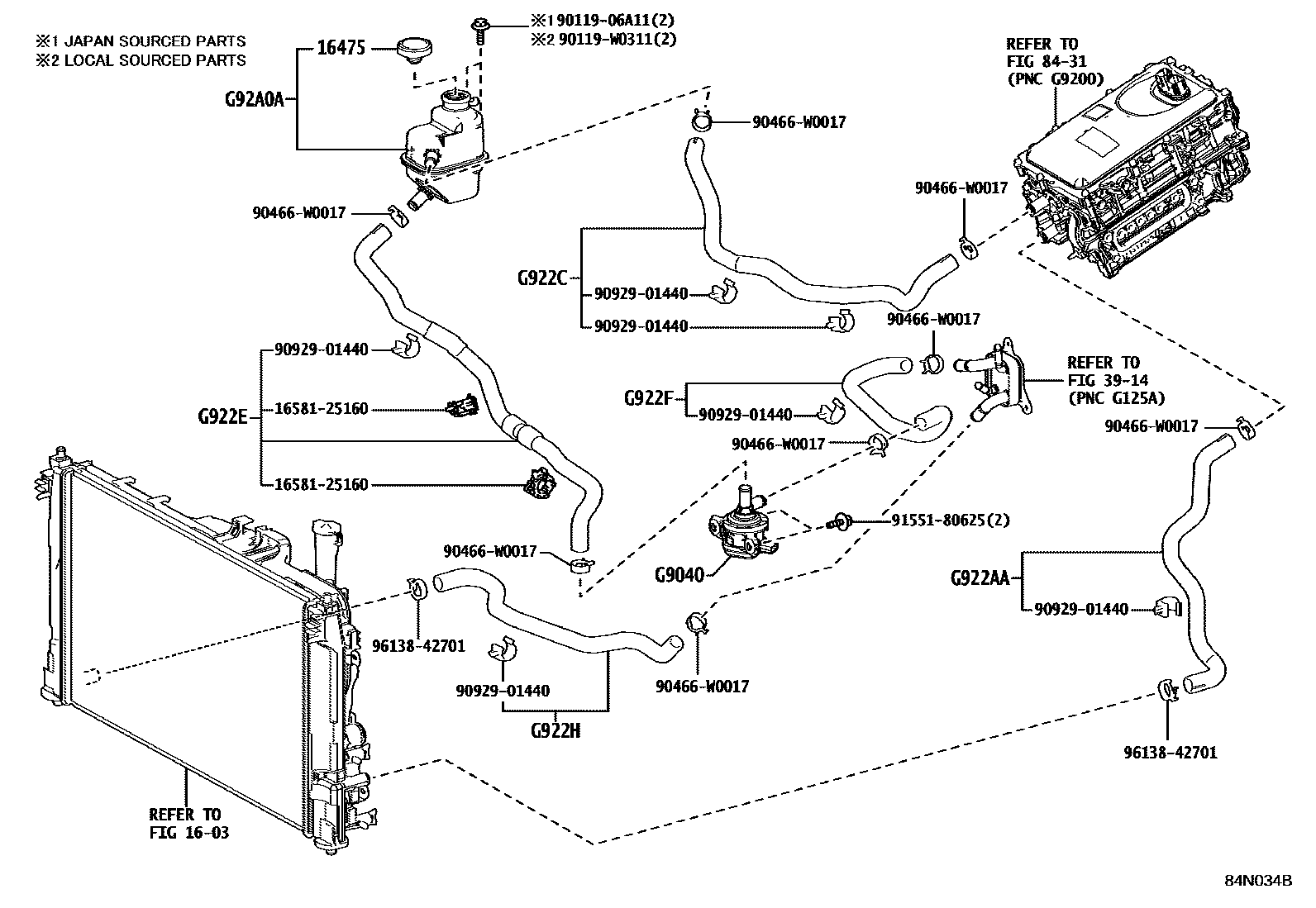

INVERTER COOLING

0001 1 0002 1

1603

16475CAP, RESERVE TANK

main16475-28140iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052030iMXPJ15..RHD..N202210-202504

mainG9040K0010iMXPJ1#202107-202209

subG9040-52030

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A0D020iMXPJ11,16202404

mainG922AK0020iMXPJ10202107-202504

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C0D020iMXPJ11,16202404

mainG922CK0020iMXPJ10202107-202504

G922EHOSE, HYBRID WATER PUMP INLET

mainG922EK0020iMXPJ15..RHD..N202107-202504

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922FK0020iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

G922HHOSE, HYBRID RADIATOR INLET

mainG922H0D010iMXPJ11,16202404

mainG922HK0020iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H0K0020iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

90119W0311

main90119-W0311

90466W0017

main90466-W0017

9092901440

main90929-01440

9155180625

main91551-80625

9613842701

main96138-42701

18 parts on this diagram · 2 diagrams in section
