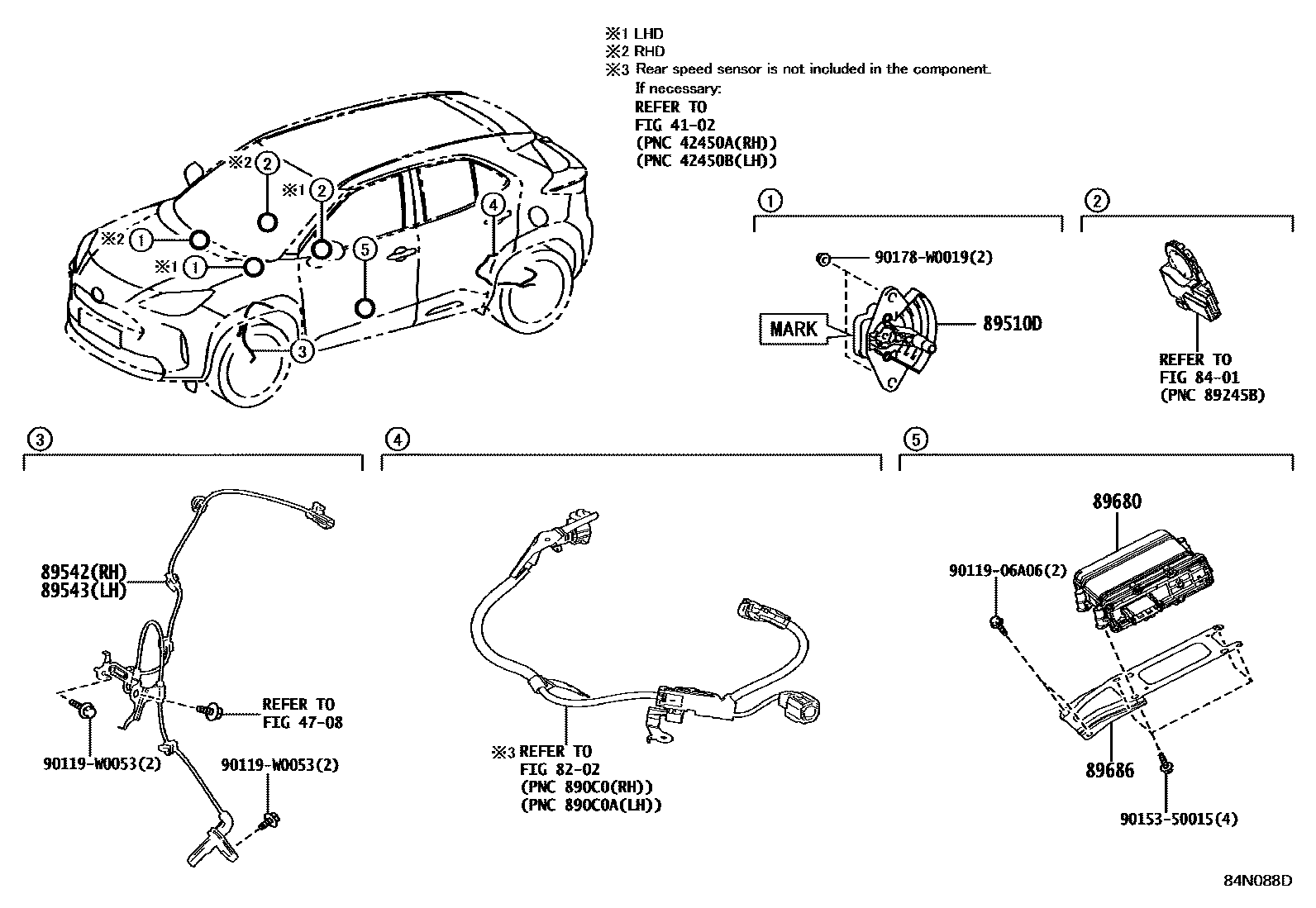

ABS & VSC
4102
4708
8202
8401
89510DSENSOR ASSY, BRAKE PEDAL STROKE
MARK=89510-K0010
MARK=89510-K0011
MARK=89510-K0020
MARK=89510-K0021
89542SENSOR, SPEED, FRONT RH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
89543SENSOR, SPEED, FRONT LH
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
89680SUPPLY ASSY, BRAKE CONTROL POWER
89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
9011906A06
main90119-06A06
90119W0053
main90119-W0053
9015350015
main90153-50015
90178W0019
main90178-W0019
13 parts on this diagram · 2 diagrams in section
