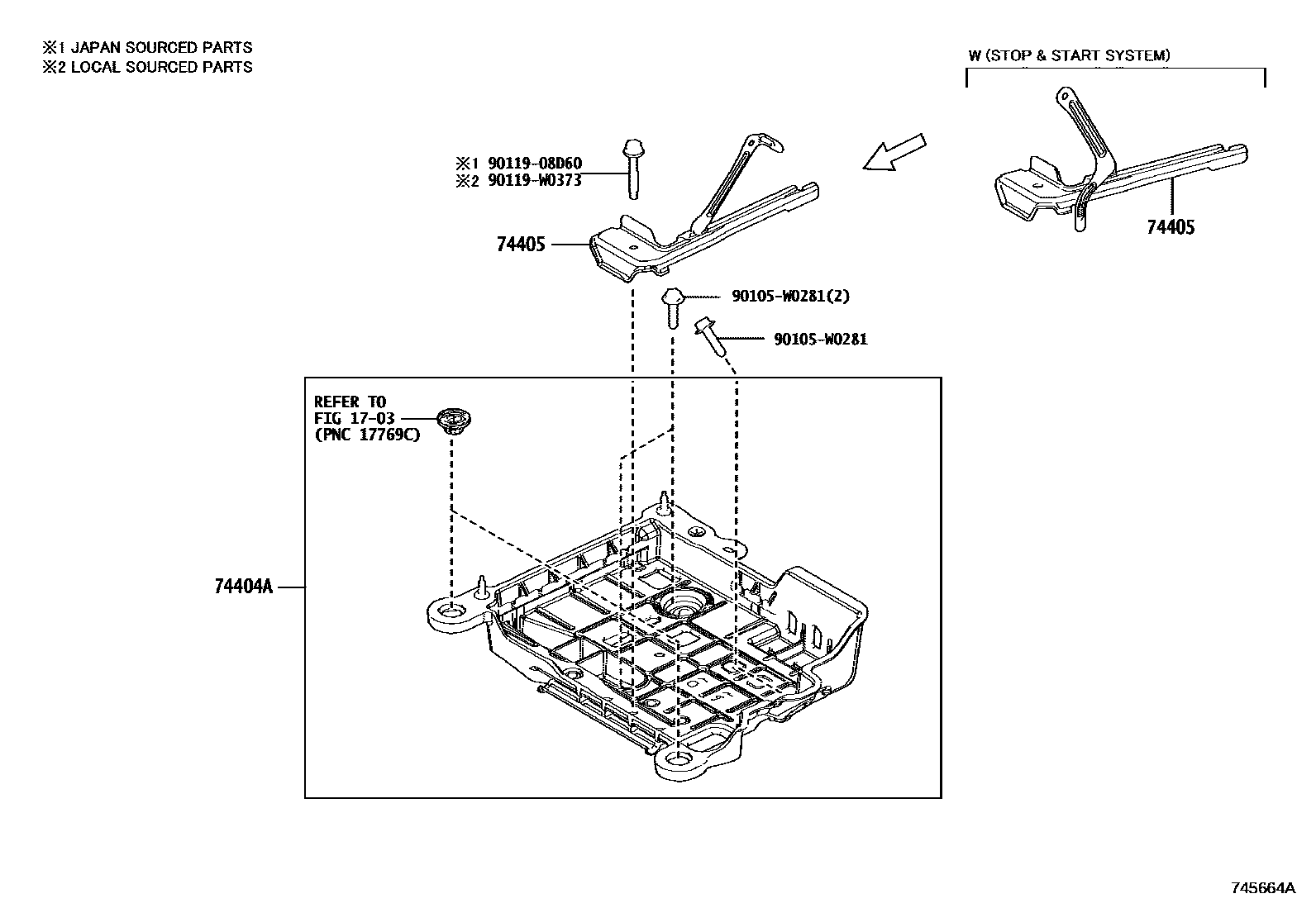

BATTERY CARRIER

0001 1 0002 1

1703

74404ACLAMP SUB-ASSY, BATTERY

main74404-0D330iMXPB10..RHD..6F202107-202206

74405CLAMP SUB-ASSY, BATTERY, NO.2

main74405-K0010iMXPB10..LHD202107

COLD AREA SPEC-WITH(EUROPE S RANK)

main74405-K0010iMXPB10..LHD..6F202107

WITH(STOP & START SYSTEM)

main74405-K2010iMXPB10..CVT;MXPB10..LHD..6F202107-202206

90105W0281

main90105-W0281

9011908D60

main90119-08D60

90119W0373

main90119-W0373

6 parts on this diagram · 2 diagrams in section
