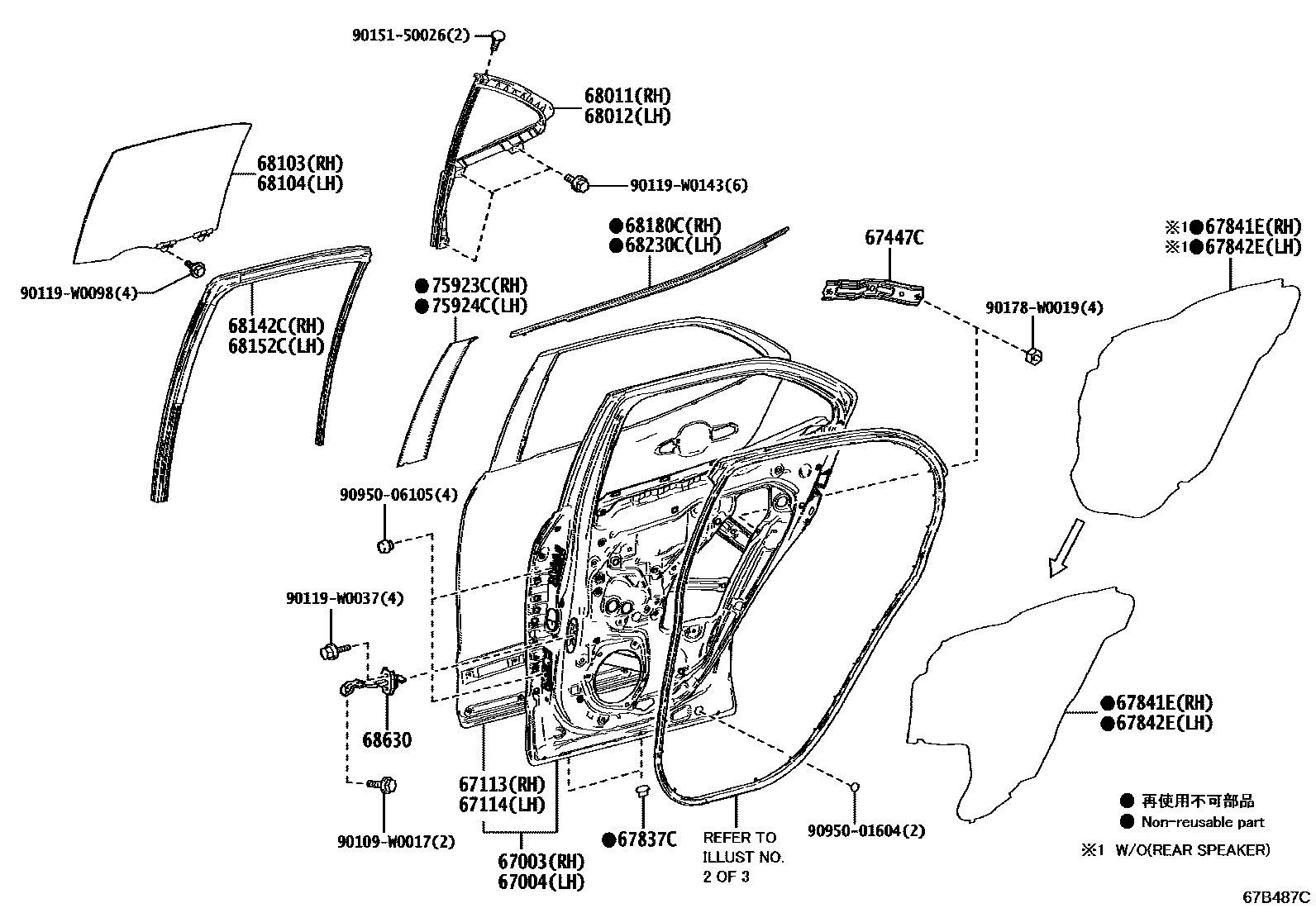

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1WEATHERSTRIP 0003 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-K2010iMXPJ10202107-202404

main67003-K2020iMXPJ15..G;MXPJ15..LHD..N202107-202504

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-K2010iMXPB10..CVT;MXPB10..LHD..6F202107-202404

main67004-K2020iMXPJ15..G;MXPJ15..LHD..N202107-202504

67113PANEL, REAR DOOR, OUTER RH

main67113-K2010iMXPB10..RHD..6F202107-202504

67114PANEL, REAR DOOR, OUTER LH

main67114-K2010iMXPJ15..G;MXPJ15..LHD..N202107-202504

67447CPLATE, REAR DOOR WINDOW GUIDE, LOWER

main67447-K2010iMXPJ10,11,16202107-202504

67837CSEAL, REAR DOOR DUST PROOF

main67837-48050iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107-202504

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-K0050iMXPJ10..R202107-202404

SPEAKER-4SPEAKER

main67841-K0050iMXPB10..RHD..6F..N202107-202504

main67841-K0060iMXPB10..LHD..R202107-202404

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-K0050iMXPJ10..R202107-202404

SPEAKER-4SPEAKER

main67841-K0050iMXPB10..RHD..6F..N202107-202504

main67841-K0060iMXPJ10..R202107-202404

68011GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, RH

main68011-0D011iMXPB10..CVT..G202107-202404

BACK GLASS-GREEN

main68011-0D011iMXPJ15..LHD..N202107-202504

main68011-0D021iMXPJ15..LHD..N202107-202504

BACK GLASS-PRIVACY

68012GLASS SUB-ASSY, REAR DOOR QUARTER WINDOW, LH

main68012-0D011iMXPJ10..N,R;MXPJ15..LHD..N202107-202404

BACK GLASS-GREEN

main68012-0D011iMXPJ15..LHD..N202107-202504

main68012-0D021iMXPJ15..G202107-202504

BACK GLASS-PRIVACY

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0D011iMXPJ10..LHD..G202107-202404

BACK GLASS-GREEN

main68103-0D011iMXPB10..RHD..6F202107-202206

main68103-0D021iMXPB10..CVT..N;MXPJ15..RHD..N;MXPB10..LHD..6F..N202107-202404

BACK GLASS-PRIVACY

main68103-0D100iMXPJ10..LHD..G202404

BACK GLASS-GREEN

main68103-0D100iMXPJ15..LHD..N202404-202504

main68103-0D110iMXPJ10,11,16..G,V202404-202504

BACK GLASS-PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0D011iMXPB10..RHD..6F202107-202206

main68104-0D011iMXPJ10..N,R;MXPJ15..LHD..N202107-202404

BACK GLASS-GREEN

main68104-0D021iMXPJ1#..G,V202107-202404

BACK GLASS-PRIVACY

main68104-0D100iMXPJ10,11,16..N,R202404

BACK GLASS-GREEN

main68104-0D100iMXPJ15..LHD..N202404-202504

main68104-0D110iMXPJ15..G202404-202504

BACK GLASS-PRIVACY

68142CRUN, REAR DOOR GLASS, RH

main68142-0D340iMXPJ15..G;MXPJ15..LHD..N202404-202504

main68142-K2010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202404

68152CRUN, REAR DOOR GLASS, LH

main68152-0D300iMXPJ15..G;MXPJ15..LHD..N202404-202504

main68152-K2010iMXPB10..RHD..6F202107-202404

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-K2010iMXPB10..RHD..6F202107-202504

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-K2010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

68630CHECK ASSY, REAR DOOR

main68630-0D270iMXPJ10,11,16202309-202504

main68630-52160iMXPB10,MXPJ1#202107-202112

sub68630-52161

main68630-52161iMXPB10..RHD..6F202201-202308

75923CTAPE, BLACK OUT, NO.2 RH

main75923-K2010iMXPB10..RHD..6F202107-202504

75924CTAPE, BLACK OUT, NO.2 LH

main75924-K2010iMXPJ10,11,16202107-202504

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0098

main90119-W0098

90119W0143

main90119-W0143

9015150026

main90151-50026

90178W0019

main90178-W0019

9095001604

main90950-01604

9095006105

main90950-06105

27 parts on this diagram · 3 diagrams in section
