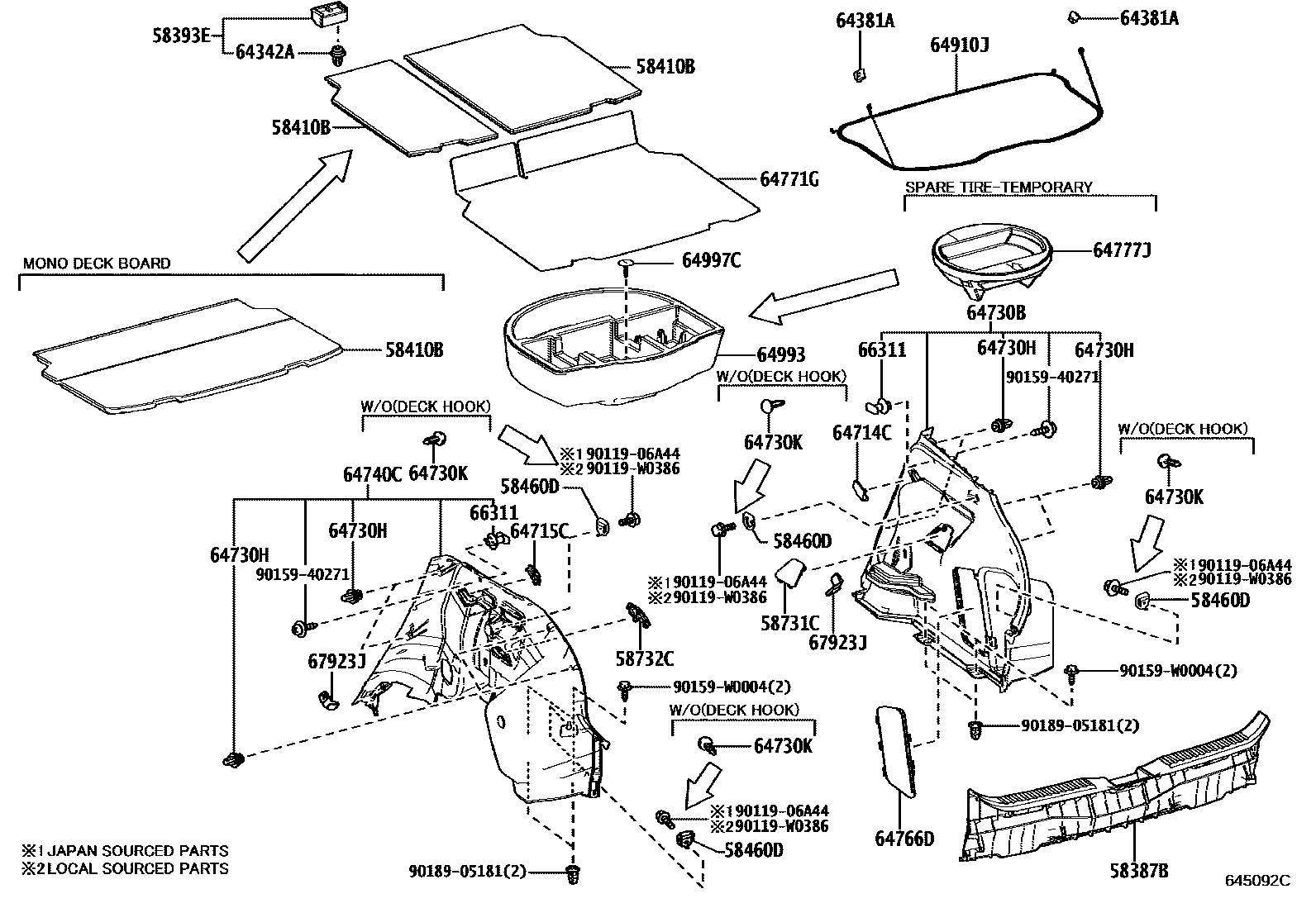

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM1#,2#,8#
58393ESUPPORT, DECK BOARD SET
BLACK,TRIM2#
DECK CARPET & MAT-WITHOUT,BLACK,TRIM2#
DECK CARPET & MAT-WITHOUT,BLACK,TRIM2#,4#
DECK CARPET & MAT-WITHOUT,BLACK,TRIM4#
BLACK,TRIM2#,4#
DECK CARPET & MAT-SEPARATE DECK BOARD&REAR SEAT-4:2:4 FOLDING TYPE,BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM4#
58410BBOARD ASSY, DECK
DECK CARPET & MAT-WITHOUT,BLACK,TRIM2#,RH
BLACK,TRIM2#,4#,RH
DECK CARPET & MAT-WITHOUT,BLACK,TRIM4#,RH
DECK CARPET & MAT-WITHOUT,BLACK,TRIM2#,4#,RH
DECK CARPET & MAT-SEPARATE DECK BOARD&REAR SEAT-4:2:4 FOLDING TYPE,BLACK,TRIM1#,6#,8#,RH
BLACK,TRIM4#,RH
BLACK,TRIM2#,RH
DECK CARPET & MAT-SEPARATE DECK BOARD&REAR SEAT-4:2:4 FOLDING TYPE,BLACK,TRIM2#,RH
DECK CARPET & MAT-SEPARATE DECK BOARD&REAR SEAT-4:2:4 FOLDING TYPE,BLACK,TRIM1#,6#,8#,LH
BLACK,TRIM4#,LH
BLACK,TRIM2#,4#,LH
DECK CARPET & MAT-SEPARATE DECK BOARD&REAR SEAT-4:2:4 FOLDING TYPE,BLACK,TRIM2#,LH
BLACK,TRIM2#,LH
SPARE TIRE-GROUND TIRE, ALUMINUM(215/50R18)&DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM4#
SPARE TIRE-GROUND TIRE, *ALU(215/55R17), MACHINING&DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM4#
SPARE TIRE-GROUND TIRE, *ALU(215/50R18), MACHINING&DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM4#
DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM1#,2#,8#
DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM1#,2#,6#,8#
SPARE TIRE-GROUND TIRE, ALUMINUM(215/55R17)&DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM4#
BLACK,TRIM2#,4#
SPARE TIRE-GROUND TIRE, ALUMINUM(215/55R17)&DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM2#,4#
DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM1#,2#
DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM2#
SPARE TIRE-GROUND TIRE, ALUMINUM(215/50R18)&DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM2#,4#
SPARE TIRE-GROUND TIRE, *ALU(215/55R17), MACHINING&DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM2#,4#
SPARE TIRE-GROUND TIRE, *ALU(215/50R18), MACHINING&DECK CARPET & MAT-MONO DECK BOARD,BLACK,TRIM2#,4#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
DECK HOOK-WITH
58731CCAP, REAR ABSORBER
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM1#,2#,8#
58732CCAP, REAR ABSORBER
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM1#,2#,8#
BLACK,TRIM2#,4#
BLACK,TRIM4#
64342ACLIP
DECK CARPET & MAT-SEPARATE DECK BOARD&REAR SEAT-4:2:4 FOLDING TYPE
DECK CARPET & MAT-WITHOUT
64381AHANGER, PACKAGE TRAY TRIM
64714CCOVER, DECK SIDE TRIM, RH
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#,8#
BLACK,TRIM4#
64715CCOVER, DECK SIDE TRIM, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM1#,2#,8#
BLACK,TRIM2#,4#
BLACK,TRIM4#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM1#,2#,8#
BLACK,TRIM4#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM2#,4#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64730KCLIP(FOR DECK SIDE TRIM PANEL)
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM1#,2#,8#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM2#,4#
64766DCOVER, DECK SIDE TRIM JACK
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM1#,2#,8#
64771GCOVER, SPARE WHEEL
SPARE TIRE-GROUND TIRE, *ALU(215/55R17), MACHINING,BLACK,TRIM2#,4#
SPARE TIRE-GROUND TIRE, *ALU(215/55R17), MACHINING,BLACK,TRIM1#,2#,6#,8#
SPARE TIRE-GROUND TIRE, *ALU(215/50R18), MACHINING,BLACK,TRIM4#
SPARE TIRE-GROUND TIRE, *ALU(215/50R18), MACHINING,BLACK,TRIM2#,4#
SPARE TIRE-GROUND TIRE, *ALU(215/50R18), MACHINING,BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM2#,4#
BLACK,TRIM2#
SPARE TIRE-GROUND TIRE, ALUMINUM(205/65R16),BLACK,TRIM1#,2#,8#
SPARE TIRE-GROUND TIRE, ALUMINUM(205/65R16),BLACK,TRIM1#,2#,6#,8#
SPARE TIRE-GROUND TIRE, ALUMINUM(215/55R17),BLACK,TRIM4#
SPARE TIRE-GROUND TIRE, ALUMINUM(215/55R17),BLACK,TRIM2#,4#
SPARE TIRE-GROUND TIRE, ALUMINUM(215/55R17),BLACK,TRIM1#,2#,6#,8#
SPARE TIRE-GROUND TIRE, ALUMINUM(215/50R18),BLACK,TRIM4#
SPARE TIRE-GROUND TIRE, ALUMINUM(215/50R18),BLACK,TRIM2#,4#
SPARE TIRE-GROUND TIRE, ALUMINUM(215/50R18),BLACK,TRIM1#,2#,6#,8#
SPARE TIRE-GROUND TIRE, STEEL(205/65R16),BLACK,TRIM1#,2#,8#
SPARE TIRE-GROUND TIRE, STEEL(205/65R16),BLACK,TRIM1#,2#,6#,8#
SPARE TIRE-GROUND TIRE, *ALU(215/55R17), MACHINING,BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM1#,2#,8#
BLACK,TRIM1#,2#,6#,8#
BLACK,TRIM1#,2#
SPARE TIRE-GROUND TIRE, ALUMINUM(205/65R16),BLACK,TRIM1#,2#
SPARE TIRE-GROUND TIRE, ALUMINUM(205/65R16),BLACK,TRIM2#
SPARE TIRE-GROUND TIRE, STEEL(205/65R16),BLACK,TRIM2#
64777JCUSHION, SPARE WHEEL
SPARE TIRE-TEMPORARY(T145/90D16), YOKOHAMA
SPARE TIRE-TEMPORARY(T145/90D16), FALKEN
64910JCOVER ASSY, TONNEAU
64993BOX, DECK FLOOR, REAR
SPARE TIRE-GROUND TIRE, ALUMINUM(205/65R16)
SPARE TIRE-GROUND TIRE, ALUMINUM(215/55R17)
SPARE TIRE-GROUND TIRE, ALUMINUM(205/65R16)
SPARE TIRE-GROUND TIRE, ALUMINUM(215/55R17)
SPARE TIRE-GROUND TIRE, ALUMINUM(215/50R18)
SPARE TIRE-GROUND TIRE, STEEL(205/65R16)
SPARE TIRE-GROUND TIRE, *ALU(215/55R17), MACHINING
SPARE TIRE-GROUND TIRE, *ALU(215/50R18), MACHINING
64997CCLIP(FOR DECK FLOOR BOX)
SPARE TIRE-GROUND TIRE, ALUMINUM(215/55R17)
SPARE TIRE-GROUND TIRE, ALUMINUM(205/65R16)
SPARE TIRE-GROUND TIRE, ALUMINUM(215/50R18)
SPARE TIRE-GROUND TIRE, STEEL(205/65R16)
SPARE TIRE-GROUND TIRE, *ALU(215/55R17), MACHINING
SPARE TIRE-GROUND TIRE, *ALU(215/50R18), MACHINING
66311HOOK, ROPE
67923JCLAMP(FOR DECK TRIM SIDE PANEL)
9011906A44
90119W0386
main90119-W0386
9015940271
90159W0004
main90159-W0004
9018905181
27 parts on this diagram · 2 diagrams in section
