INSTRUMENT PANEL & GLOVE COMPARTMENT

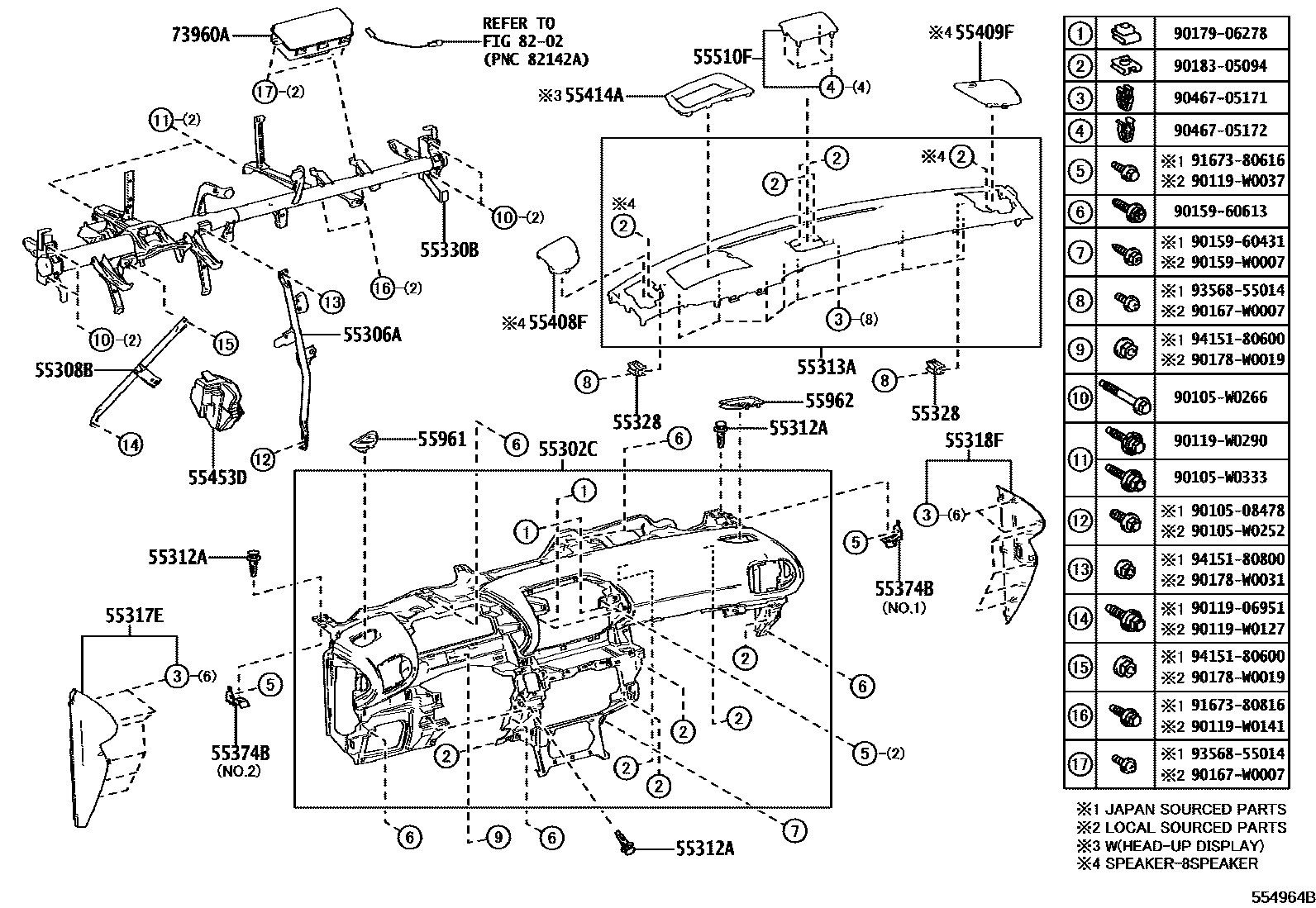

Parts diagram
55302CPANEL SUB-ASSY, INSTRUMENT
main55302-0D360-C0i202404-202504
SOFT BLACK,TRIM2#
main55302-0D360-C0i202404
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&AUDIO-10.5INCH DISPLAY(T1),SOFT BLACK,TRIM1#,2#,6#,8#
main55302-0D360-C0i202404
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&AUDIO-10.5INCH DISPLAY(T2),SOFT BLACK,TRIM1#,2#,6#,8#
main55302-0D360-E0i202404-202504
TAUPE,TRIM4#
main55302-0D370-C0i202404-202504
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&AUDIO-10.5INCH DISPLAY(T1),SOFT BLACK,TRIM1#,2#,6#,8#
main55302-0D370-C0i202404-202504
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)&AUDIO-10.5INCH DISPLAY(T2),SOFT BLACK,TRIM1#,2#,6#,8#
main55302-0D370-C0i202404-202504
SOFT BLACK,TRIM2#
main55302-0D370-E0i202404-202504
TAUPE,TRIM4#
main55302-K0040-C0i202107-202207
SOFT BLACK,TRIM2#
sub55302-K0041
main55302-K0040-C0i202107-202207
SOFT BLACK,TRIM1#,2#,6#,8#
sub55302-K0041
main55302-K0040-E0i202107-202207
TAUPE,TRIM4#
sub55302-K0041
main55302-K0041-C0i202208-202404
SOFT BLACK,TRIM1#,6#,8#
main55302-K0041-C0i202208-202404
SOFT BLACK,TRIM2#
main55302-K0041-C0i202404
SOFT BLACK,TRIM1#,2#,6#,8#
main55302-K0041-E0i202208-202404
TAUPE,TRIM4#
main55302-K0060-C0i202107-202207
SOFT BLACK,TRIM1#,2#,6#,8#
sub55302-K0061
main55302-K0060-C0i202107-202207
SOFT BLACK,TRIM1#,2#,8#
sub55302-K0061
main55302-K0060-C0i202107-202207
SOFT BLACK,TRIM2#
sub55302-K0061
main55302-K0060-E0i202107-202207
TAUPE,TRIM4#
sub55302-K0061
main55302-K0061-C0i202208-202404
SOFT BLACK,TRIM1#,2#
main55302-K0061-C0i202208-202404
SOFT BLACK,TRIM1#,6#,8#
main55302-K0061-C0i202208-202404
SOFT BLACK,TRIM2#
main55302-K0061-C0i202404-202504
SOFT BLACK,TRIM1#,2#,6#,8#
main55302-K0061-E0i202208-202404
TAUPE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-0D490i202107-202504
main55306-K0040i202107-202504
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
main55308-K0030i202107-202504
main55308-K0040i202107-202504
55312ACLIP, INSTRUMENT PANEL
main52161-02030i202107-202504
(L)
main52161-16010i202107-202504
(J)
sub52161-0K040
55313APANEL, INSTRUMENT MAIN
main55313-K0050-C0i202107-202404
BLACK,TRIM2#
main55313-K0050-C0i202107-202404
BLACK,TRIM1#,2#,6#,8#
main55313-K0050-C0i202107-202504
BLACK,TRIM2#,4#
main55313-K0060-C0i202210-202404
HEAD-UP DISPLAY-WITH,BLACK,TRIM2#
main55313-K0060-C0i202107-202207
HEAD-UP DISPLAY-WITH,BLACK,TRIM1#,2#,6#,8#
main55313-K0060-C0i202107-202404
HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4#
main55313-K0070-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55313-K0070-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55313-K0070-C0i202210-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#
main55313-K0080-C0i202107-202207
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55313-K0080-C0i202210-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#
main55313-K0080-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55313-K0090-C0i202107-202504
BLACK,TRIM2#,4#
main55313-K0090-C0i202107-202404
BLACK,TRIM1#,2#,8#
main55313-K0090-C0i202107-202504
BLACK,TRIM1#,2#,6#,8#
main55313-K0090-C0i202210-202404
BLACK,TRIM2#
main55313-K0090-C0i202404
BLACK,TRIM1#,2#
main55313-K0090-C0i202107
BLACK,TRIM4#
main55313-K0100-C0i202107-202404
HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4#
main55313-K0100-C0i202107-202404
HEAD-UP DISPLAY-WITH,BLACK,TRIM1#,2#,6#,8#
main55313-K0100-C0i202210-202404
HEAD-UP DISPLAY-WITH,BLACK,TRIM2#
main55313-K0100-C0i202107
HEAD-UP DISPLAY-WITH,BLACK,TRIM4#
main55313-K0110-C0i202107
SPEAKER-8SPEAKER,BLACK,TRIM4#
main55313-K0110-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55313-K0110-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55313-K0110-C0i202210-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#
main55313-K0120-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55313-K0120-C0i202107
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM4#
main55313-K0120-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55313-K0120-C0i202210-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#
55317EPANEL, INSTRUMENT SIDE, NO.1
main55317-0D160-C0i202304-202404
BLACK,TRIM2#,4#
main55317-0D160-C0i202304-202404
BLACK,TRIM2#
main55317-0D160-C0i202304-202404
BLACK,TRIM1#,2#
main55317-0D160-C0i202304-202404
BLACK,TRIM1#,6#,8#
main55317-0D161-C0i202404
BLACK,TRIM2#
main55317-0D161-C0i202404
BLACK,TRIM2#,4#
main55317-0D370-C0i202404
BLACK,TRIM2#
main55317-0D370-C0i202404-202504
BLACK,TRIM2#,4#
main55317-0D380-C0i202404-202504
BLACK,TRIM2#
main55317-0D380-C0i202404-202504
BLACK,TRIM2#,4#
main55317-K0020-C0i202107-202304
BLACK,TRIM1#,2#,6#,8#
main55317-K0020-C0i202107-202404
BLACK,TRIM2#
main55317-K0020-C0i202107-202404
BLACK,TRIM2#,4#
main55317-K0020-C0i202304-202404
BLACK,TRIM1#,6#,8#
main55317-K0030-C0i202107-202404
BLACK,TRIM1#,2#,6#,8#
main55317-K0030-C0i202107-202304
BLACK,TRIM1#,2#,8#
main55317-K0030-C0i202107-202404
BLACK,TRIM2#,4#
main55317-K0030-C0i202210-202304
BLACK,TRIM2#
main55317-K0030-C0i202107
BLACK,TRIM4#
55318FPANEL, INSTRUMENT SIDE, NO.2
main55318-0D350-C0i202304-202404
BLACK,TRIM2#
main55318-0D350-C0i202304-202404
BLACK,TRIM2#,4#
main55318-0D350-C0i202304-202404
BLACK,TRIM1#,6#,8#
main55318-0D351-C0i202404
BLACK,TRIM2#,4#
main55318-0D351-C0i202404
BLACK,TRIM2#
main55318-0D360-C0i202404-202504
BLACK,TRIM2#,4#
main55318-0D380-C0i202404-202504
BLACK,TRIM2#
main55318-0D380-C0i202404-202504
BLACK,TRIM2#,4#
main55318-K0020-C0i202107-202304
BLACK,TRIM1#,2#,6#,8#
main55318-K0020-C0i202107-202404
BLACK,TRIM2#,4#
main55318-K0020-C0i202107-202304
BLACK,TRIM2#
main55318-K0030-C0i202107-202404
BLACK,TRIM1#,2#,6#,8#
main55318-K0030-C0i202107-202304
BLACK,TRIM1#,2#,8#
main55318-K0030-C0i202107-202404
BLACK,TRIM2#,4#
main55318-K0030-C0i202210-202404
BLACK,TRIM2#
main55318-K0030-C0i202304-202404
BLACK,TRIM1#,2#
main55318-K0030-C0i202304-202404
BLACK,TRIM1#,6#,8#
main55318-K0030-C0i202107
BLACK,TRIM4#
55328PIN, INSTRUMENT PANEL, NO.1
main55328-02110i202209-202504
main55328-12430i202107-202208
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-0DA40i202107-202206
sub55330-0DA41
main55330-0DA41i202207-202309
sub55330-0DA80
main55330-0DA50i202107-202206
sub55330-0DA51
main55330-0DA51i202207-202309
sub55330-0DA90
main55330-0DA80i202310-202504
main55330-0DA90i202310-202504
55374BBRACKET, INSTRUMENT PANEL
main55363-0D010i202107-202504
RH
main55363-0D020i202107-202504
LH
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
main55408-K0010-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55408-K0010-C0i202107-202207
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55408-K0010-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55408-K0010-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55408-K0010-C0i202210-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#
main55408-K0010-C0i202210-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#
main55408-K0020-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55408-K0020-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55408-K0020-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55408-K0020-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55408-K0020-C0i202210-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#
main55408-K0020-C0i202210-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#
main55408-K0020-C0i202107
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM4#
main55408-K0020-C0i202107
SPEAKER-8SPEAKER,BLACK,TRIM4#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
main55409-K0010-C0i202107-202207
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55409-K0010-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55409-K0010-C0i202210-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#
main55409-K0010-C0i202210-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#
main55409-K0010-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55409-K0010-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55409-K0020-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55409-K0020-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55409-K0020-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55409-K0020-C0i202107-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55409-K0020-C0i202210-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#
main55409-K0020-C0i202210-202404
SPEAKER-8SPEAKER,BLACK,TRIM2#
main55409-K0020-C0i202107
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM4#
main55409-K0020-C0i202107
SPEAKER-8SPEAKER,BLACK,TRIM4#
55414APANEL, INSTRUMENT CLUSTER FINISH, END
main55414-K0020-C0i202107-202207
HEAD-UP DISPLAY-WITH,BLACK,TRIM1#,2#,6#,8#
main55414-K0020-C0i202107-202207
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55414-K0020-C0i202210-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#
main55414-K0020-C0i202107-202404
HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4#
main55414-K0020-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55414-K0020-C0i202210-202404
HEAD-UP DISPLAY-WITH,BLACK,TRIM2#
main55414-K0030-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM1#,2#,6#,8#
main55414-K0030-C0i202107-202404
HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4#
main55414-K0030-C0i202107-202404
HEAD-UP DISPLAY-WITH,BLACK,TRIM1#,2#,6#,8#
main55414-K0030-C0i202107-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#,4#
main55414-K0030-C0i202210-202404
HEAD-UP DISPLAY-WITH,BLACK,TRIM2#
main55414-K0030-C0i202210-202404
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM2#
main55414-K0030-C0i202107
HEAD-UP DISPLAY-WITH,BLACK,TRIM4#
main55414-K0030-C0i202107
HEAD-UP DISPLAY-WITH&SPEAKER-8SPEAKER,BLACK,TRIM4#
55453DPAD, INSTRUMENT PANEL SAFETY, NO.1
main55453-0D090i202107-202504
main55453-0D100i202107-202504
55510FCOVER ASSY, SPEAKER OPENING, NO.1
main55510-K0010-C0i202107-202404
BLACK,TRIM2#
main55510-K0010-C0i202107-202404
BLACK,TRIM1#,2#,6#,8#
main55510-K0010-C0i202107-202504
BLACK,TRIM2#,4#
main55510-K0020-C0i202107-202504
BLACK,TRIM1#,2#,6#,8#
main55510-K0020-C0i202107
BLACK,TRIM4#
main55510-K0020-C0i202107-202404
BLACK,TRIM1#,2#,8#
main55510-K0020-C0i202210-202404
BLACK,TRIM2#
main55510-K0020-C0i202107-202504
BLACK,TRIM2#,4#
main55510-K0020-C0i202404
BLACK,TRIM1#,2#
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-K0020-C0i202107-202504
BLACK,TRIM2#,4#
main55961-K0020-C0i202107-202404
BLACK,TRIM1#,2#,6#,8#
main55961-K0020-C0i202107-202404
BLACK,TRIM2#
main55961-K0030-C0i202107-202504
BLACK,TRIM2#,4#
main55961-K0030-C0i202404
BLACK,TRIM1#,2#
main55961-K0030-C0i202210-202404
BLACK,TRIM2#
main55961-K0030-C0i202107-202504
BLACK,TRIM1#,2#,6#,8#
main55961-K0030-C0i202107-202404
BLACK,TRIM1#,2#,8#
main55961-K0030-C0i202107
BLACK,TRIM4#
55962NOZZLE, SIDE DEFROSTER, NO.2
main55962-K0020-C0i202107-202404
BLACK,TRIM2#
main55962-K0020-C0i202107-202504
BLACK,TRIM2#,4#
main55962-K0020-C0i202107-202404
BLACK,TRIM1#,2#,6#,8#
main55962-K0040-C0i202404
BLACK,TRIM1#,2#
main55962-K0040-C0i202210-202404
BLACK,TRIM2#
main55962-K0040-C0i202107-202504
BLACK,TRIM1#,2#,6#,8#
main55962-K0040-C0i202107-202504
BLACK,TRIM2#,4#
main55962-K0040-C0i202107-202404
BLACK,TRIM1#,2#,8#
main55962-K0040-C0i202107
BLACK,TRIM4#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-K0020i202107-202209
main73960-K0021i202210-202504
8202
9010508478
main90105-08478
90105W0252
main90105-W0252
90105W0266
main90105-W0266
90105W0333
main90105-W0333
9011906951
main90119-06951
90119W0037
main90119-W0037
90119W0127
main90119-W0127
90119W0141
main90119-W0141
90119W0290
main90119-W0290
9015960431
main90159-60431
9015960613
main90159-60613
90159W0007
main90159-W0007
90167W0007
main90167-W0007
90178W0019
main90178-W0019
90178W0031
main90178-W0031
9017906278
main90179-06278
9018305094
main90183-05094
9046705171
main90467-05171
9046705172
main90467-05172
9167380616
main91673-80616
9167380816
main91673-80816
9356855014
main93568-55014
9415180600
main94151-80600
9415180800
main94151-80800

43 parts on this diagram · 8 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
