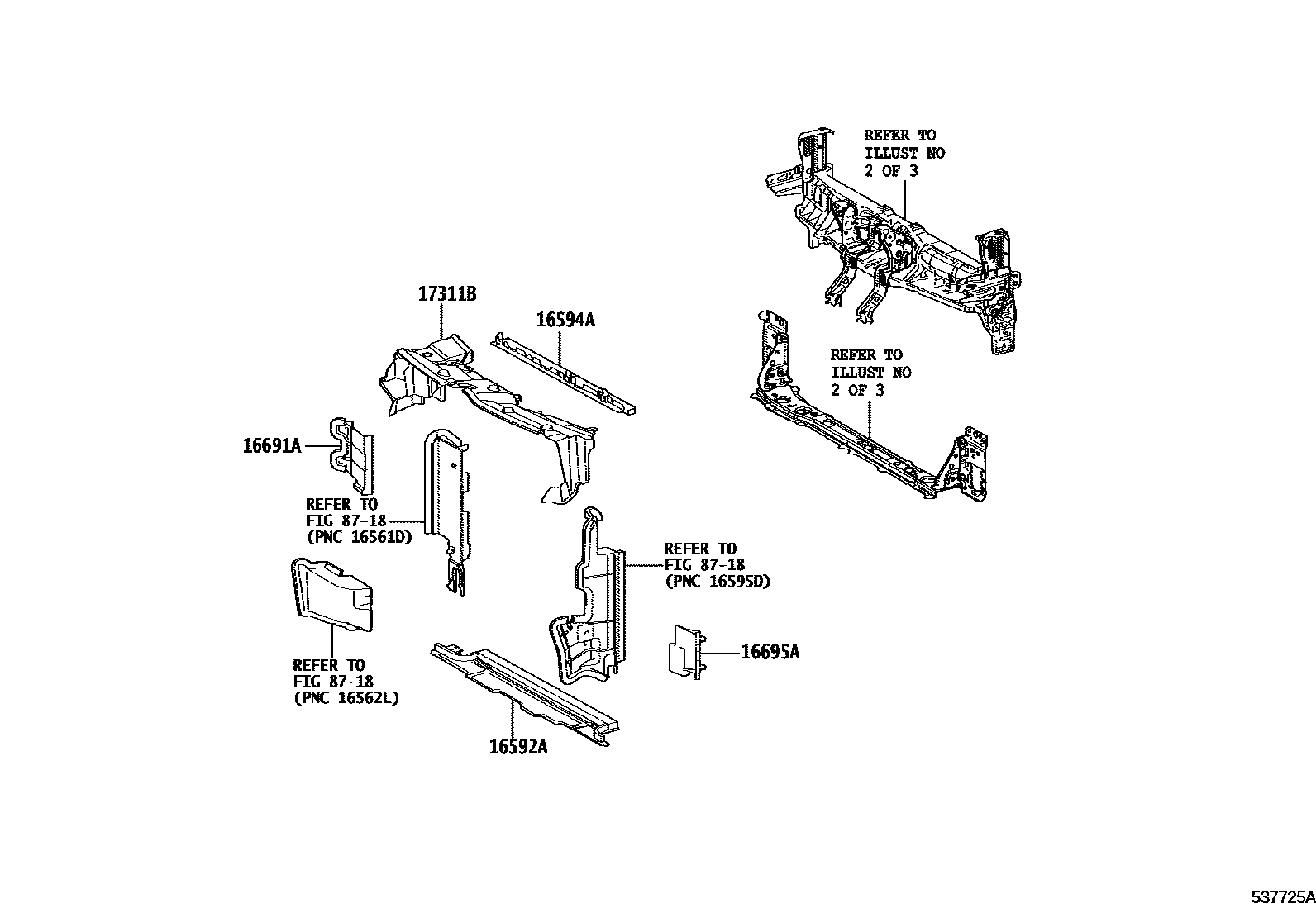

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1AIRGUIDE & RADIATOR SUPPORT C0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL 0005 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F3030iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

16594AGUIDE, RADIATOR AIR, NO.2

main16594-K0030iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107-202206

main16594-K0040iM15AFXE..MXPJ10,11,16202107-202504

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-F3010iM15AFKS..MXPB10..RHD..6F202107-202504

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-K0020iM15AFKS..MXPB10..RHD..6F202107-202504

17311BDUCT, AIR INLET, NO.1

main17301-F3020iM15AFXE..MXPJ10,11,16202107-202504

8718

6 parts on this diagram · 5 diagrams in section
