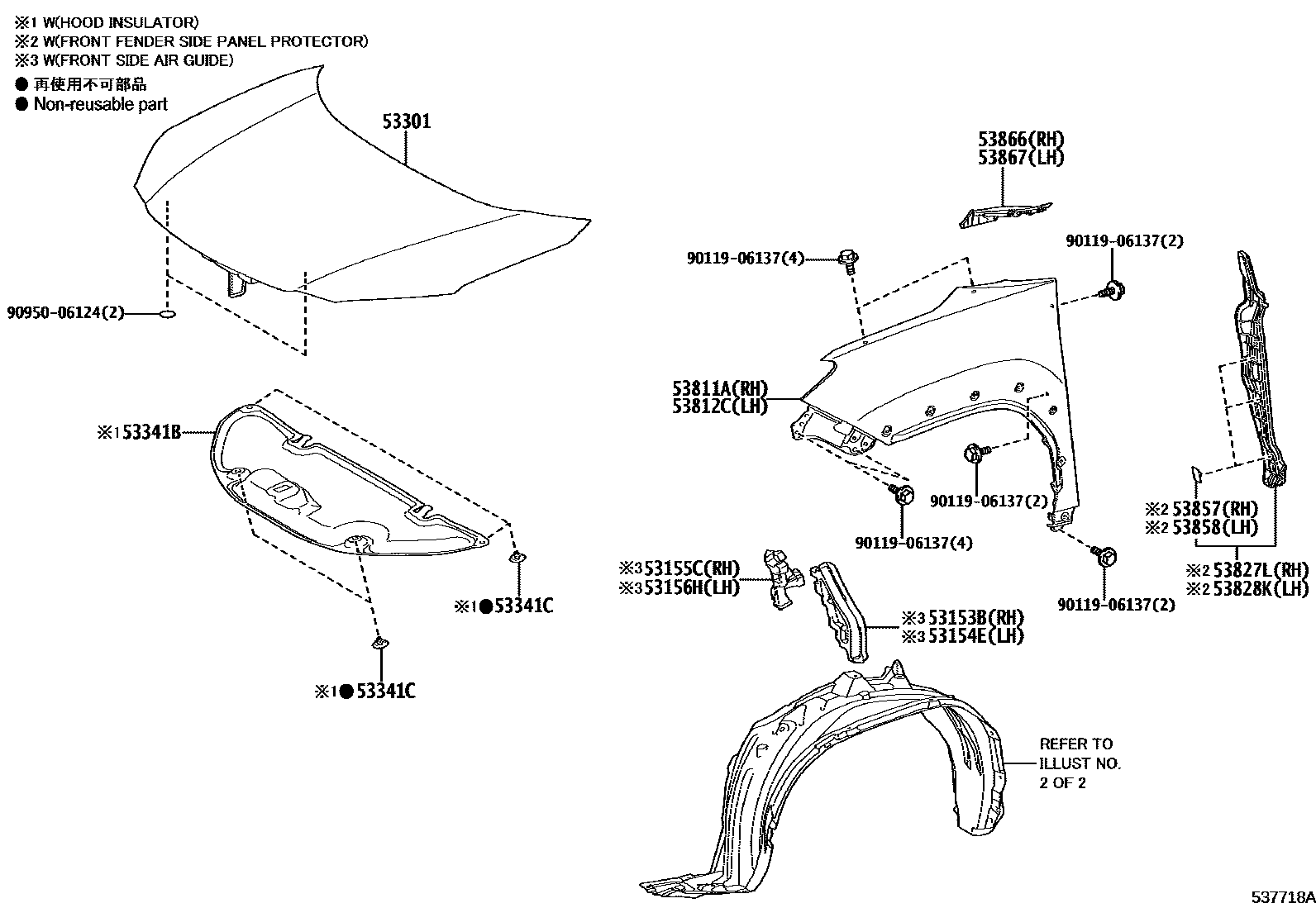

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-K2010iMXPB10..RHD..6F..N202107-202305

NV PACKAGE

main53153-K2010iMXPJ10,11,16202107-202504

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-K2010iMXPJ10,11,16..G,N,V202404-202504

main53154-K2010iMXPJ1#..G,V202107-202404

NV PACKAGE

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-K2010iMXPB10..RHD..6F..N202107-202305

NV PACKAGE

main53155-K2010iMXPJ1#..G,V202107-202504

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-K2010iMXPB10..RHD..6F..N202107-202404

NV PACKAGE

main53156-K2010iMXPJ10,11,16..G,N,V202404-202504

53301HOOD SUB-ASSY

main53301-K2010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

53341BINSULATOR, HOOD

main53341-0D380iMXPB10..CVT;MXPB10..LHD..6F202107-202206

HOOD SILENCER-WITH

main53341-0D380iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iMXPJ15..RHD..N¥120202107-202206

HOOD SILENCER-WITH

main90467-09050iMXPJ15..G;MXPJ15..LHD..N¥120202107-202504

53811APANEL, FRONT FENDER, RH

main53811-K2010iMXPB10..RHD..6F¥19,000202107-202504

53812CPANEL, FRONT FENDER, LH

main53812-K2010iMXPJ10,11,16¥19,000202107-202504

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-K2010iMXPJ1#..LHD..(N,R)202107-202404

COLD AREA SPEC-WITH(EUROPE S RANK)

main53827-K2010iMXPJ1#..G,V202107-202404

NV PACKAGE

main53827-K2010iMXPJ1#..G,V202107-202404

NV PACKAGE&COLD AREA SPEC-WITH(EUROPE A RANK)

main53827-K2010iMXPJ1#..G,V202107-202404

NV PACKAGE&COLD AREA SPEC-WITH(EUROPE S RANK)

main53827-K2010iMXPJ1#..G,V202107-202404

COLD AREA SPEC-WITH(EUROPE A RANK)

main53827-K2010iMXPJ15..G;MXPJ15..LHD..N202404-202504

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-K2010iMXPB10..RHD..6F..N202107-202404

NV PACKAGE

main53828-K2010iMXPJ1#..G,V202107-202404

NV PACKAGE&COLD AREA SPEC-WITH(EUROPE A RANK)

main53828-K2010iMXPJ1#..G,V202107-202404

NV PACKAGE&COLD AREA SPEC-WITH(EUROPE S RANK)

main53828-K2010iMXPJ1#..G,V202107-202404

COLD AREA SPEC-WITH(EUROPE A RANK)

main53828-K2010iMXPJ1#..G,V202107-202404

COLD AREA SPEC-WITH(EUROPE S RANK)

main53828-K2010iMXPJ15..G;MXPJ15..LHD..N202404-202504

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMXPB10..LHD..(G,N)¥100202107-202404

NV PACKAGE&COLD AREA SPEC-WITH(EUROPE S RANK)

main53857-12010iMXPB10..RHD..6F..N¥100202107-202404

NV PACKAGE

main53857-12010iMXPJ1#..G,V¥100202107-202404

NV PACKAGE&COLD AREA SPEC-WITH(EUROPE A RANK)

main53857-12010iMXPJ1#..G,V¥100202107-202404

COLD AREA SPEC-WITH(EUROPE A RANK)

main53857-12010iMXPJ1#..G,V¥100202107-202404

COLD AREA SPEC-WITH(EUROPE S RANK)

main53857-12010iMXPJ15..G;MXPJ15..LHD..N¥100202404-202504

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMXPJ10..N;MXPJ15..LHD..N¥100202107-202404

COLD AREA SPEC-WITH(EUROPE S RANK)

main53857-12010iMXPJ1#..G,V¥100202107-202404

NV PACKAGE

main53857-12010iMXPJ1#..G,V¥100202107-202404

NV PACKAGE&COLD AREA SPEC-WITH(EUROPE A RANK)

main53857-12010iMXPJ1#..G,V¥100202107-202404

NV PACKAGE&COLD AREA SPEC-WITH(EUROPE S RANK)

main53857-12010iMXPJ1#..G,V¥100202107-202404

COLD AREA SPEC-WITH(EUROPE A RANK)

main53857-12010iMXPJ15..G;MXPJ15..LHD..N¥100202404-202504

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D310iMXPJ15..LHD202107-202504

main53866-K2010iMXPJ10..RHD;MXPJ15..RHD..G202107-202504

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D310iMXPJ1#..LHD202107-202504

main53867-K2010iMXPJ10..RHD;MXPJ15..RHD..G202107-202504

9011906137

main90119-06137¥70

9095006124

main90950-06124¥90

17 parts on this diagram · 2 diagrams in section
