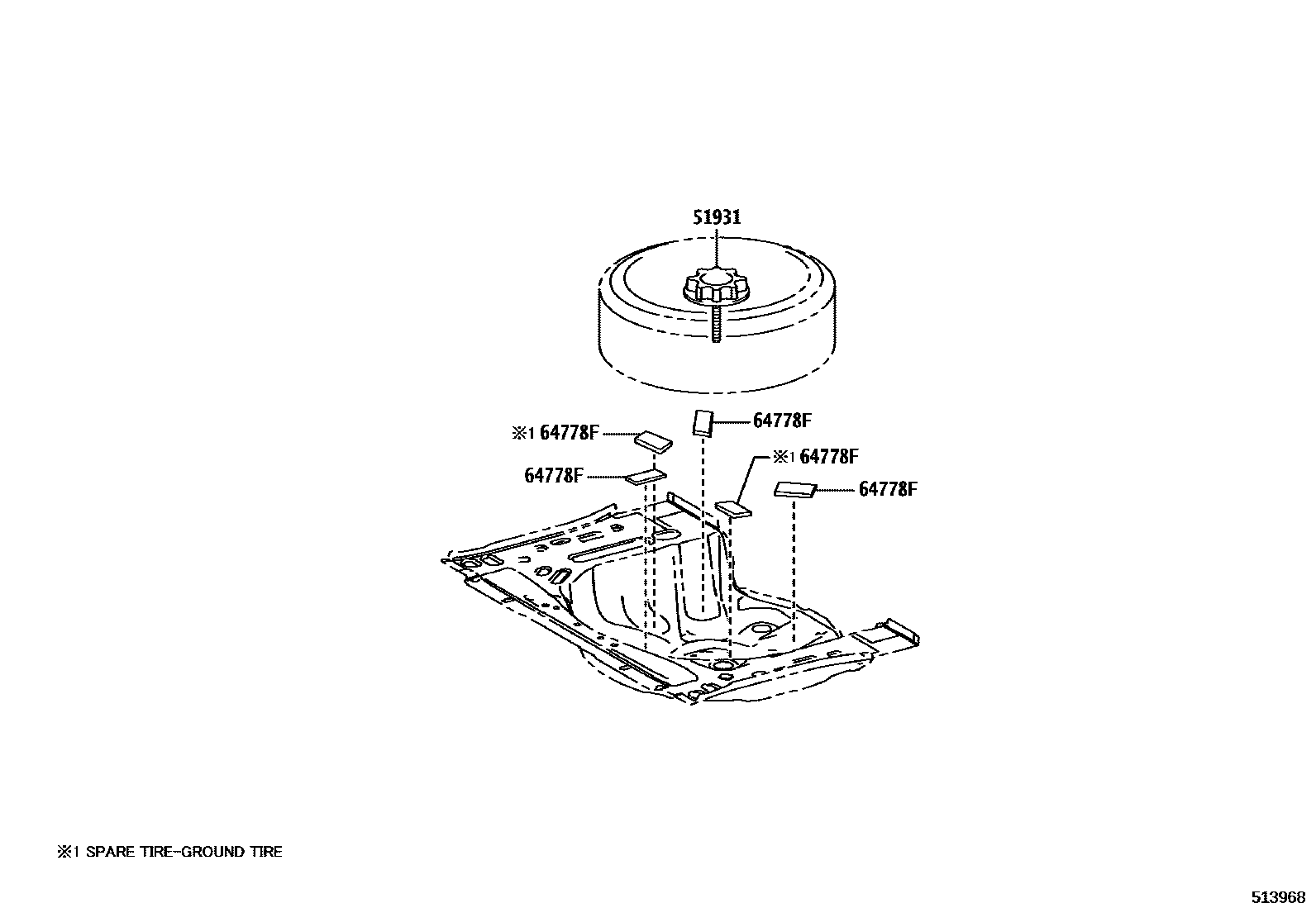

SPARE WHEEL CARRIER

51931CARRIER, SPARE WHEEL, NO.1

main51931-02310iMXPB10..LHD202107

SPARE TIRE-TEMPORARY(T145/90D16), FALKEN

main51931-02430iMXPB10..RHD..6F..N202107-202206

SPARE TIRE-GROUND TIRE, ALUMINUM(205/65R16)

64778FPROTECTOR, SPARE WHEEL

main64778-0D030×3iMXPB10..RHD..6F202107-202206

SPARE TIRE-TEMPORARY(T145/90D16), FALKEN

main64778-0D140×5iMXPB10..RHD..6F..N202107-202206

SPARE TIRE-GROUND TIRE, ALUMINUM(205/65R16)

2 parts on this diagram · 1 diagram in section
