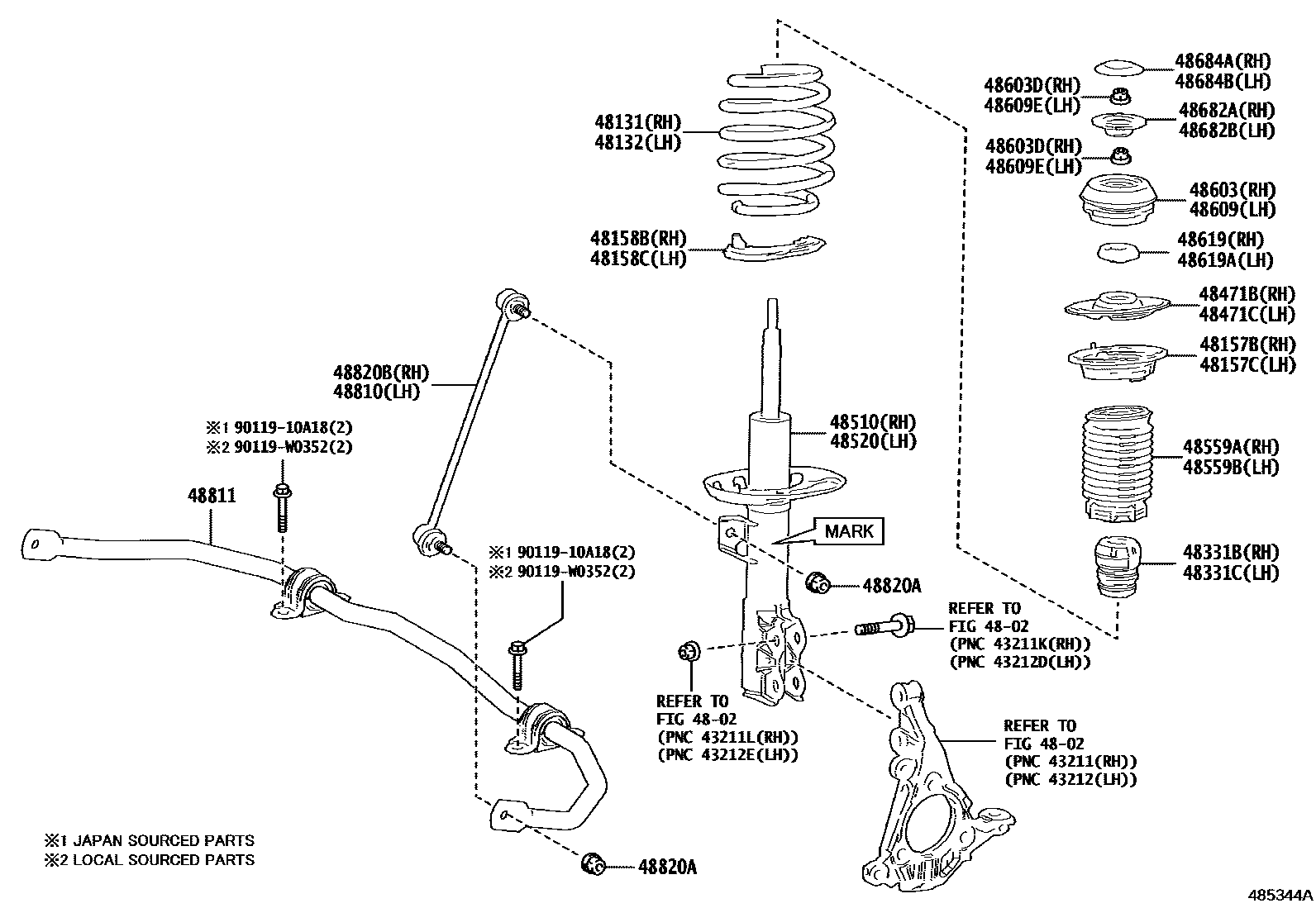

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0DG20iMXPB10..RHD..6F202107-202206

main48131-0DG30iMXPB10..CVT202107

main48131-0DG40iMXPJ15..G;MXPJ10..G,N,R;MXPJ15..LHD..N202107-202504

main48131-0DJ10iMXPJ10..V202210-202404

48132SPRING, FRONT COIL, LH

main48131-0DG20iMXPB10..RHD..6F202107-202206

main48131-0DG30iMXPB10..CVT202107

main48131-0DG40iMXPJ15..RHD..N202107-202504

main48131-0DJ10iMXPJ10,11..V202210-202404

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-K0020iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-K0020iMXPB10..RHD..6F202107-202504

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-K0020iMXPB10..RHD..6F202107-202504

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-K0020iMXPB10..RHD..6F202107-202504

48331BBUMPER, FRONT SPRING, RH

main48331-0D230iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107-202504

main48331-K0030iMXPJ10..V202210-202404

48331CBUMPER, FRONT SPRING, LH

main48331-0D230iMXPB10..RHD..6F202107-202504

main48331-K0030iMXPJ10,11..V202210-202404

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-K0020iMXPJ10,11,16202107-202504

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-K0020iMXPJ15..G;MXPJ15..LHD..N202107-202504

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-0DF70iMXPJ10..V202210-202404

MARK 48510-0DF70

main48510-0DG10iMXPB10..CVT;MXPB10..LHD..6F202107-202206

MARK 48510-0DG10

main48510-0DG20iMXPJ15..RHD..N202107-202404

MARK 48510-0DG20

main48510-0DJ70iMXPJ15..G;MXPJ15..LHD..N202404-202504

MARK 48510-0DJ70

main48510-0DJ90iMXPJ10,11..V202404

MARK 48510-0DJ90

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-0D520iMXPB10..RHD..6F202107-202206

MARK 48520-0D520

main48520-0D530iMXPJ15..RHD..N202107-202404

MARK 48520-0D530

main48520-0D630iMXPJ10..V202210-202404

MARK 48520-0D630

main48520-0D690iMXPJ15..G;MXPJ15..LHD..N202404-202504

MARK 48520-0D690

main48520-0D710iMXPJ10,11..V202404

MARK 48520-0D700

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-K0020iMXPJ15..G;MXPJ15..LHD..N202107-202504

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-K0020iMXPJ15..G;MXPJ15..LHD..N202107-202504

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-K0021iMXPJ15..G;MXPJ15..LHD..N202107-202504

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-W0015iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107-202504

(L)

main90179-12145iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F¥100202107-202504

(J)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-K0021iMXPB10..RHD..6F202107-202504

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-W0015iMXPB10..RHD..6F202107-202504

(L)

main90179-12145iMXPJ10;MXPJ15..G;MXPJ15..LHD..N¥100202107-202504

(J)

48619BEARING, STRUT MOUNTING, RH

main48619-K0010iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F¥840202107-202504

48619ABEARING, STRUT MOUNTING, LH

main48619-K0010iMXPB10..RHD..6F¥840202107-202504

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-K0020iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107-202504

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-K0020iMXPB10..RHD..6F202107-202504

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-K0010iMXPB10..RHD..6F202107-202504

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-K0010iMXPB10..RHD..6F202107-202504

48810LINK ASSY, FRONT STABILIZER, LH

main48820-K0010iMXPB10..RHD..6F202107-202504

48811BAR, STABILIZER, FRONT

main48804-0D010iMXPB10..RHD..6F202107-202504

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-W0051iMXPJ10;MXPJ15..G;MXPJ15..LHD..N¥100202107-202504

(L)

main94151-21241iMXPJ15..G;MXPJ15..LHD..N¥100202107-202504

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-K0010iMXPB10..RHD..6F202107-202504

9011910A18

main90119-10A18¥160

90119W0352

main90119-W0352

31 parts on this diagram · 1 diagram in section
