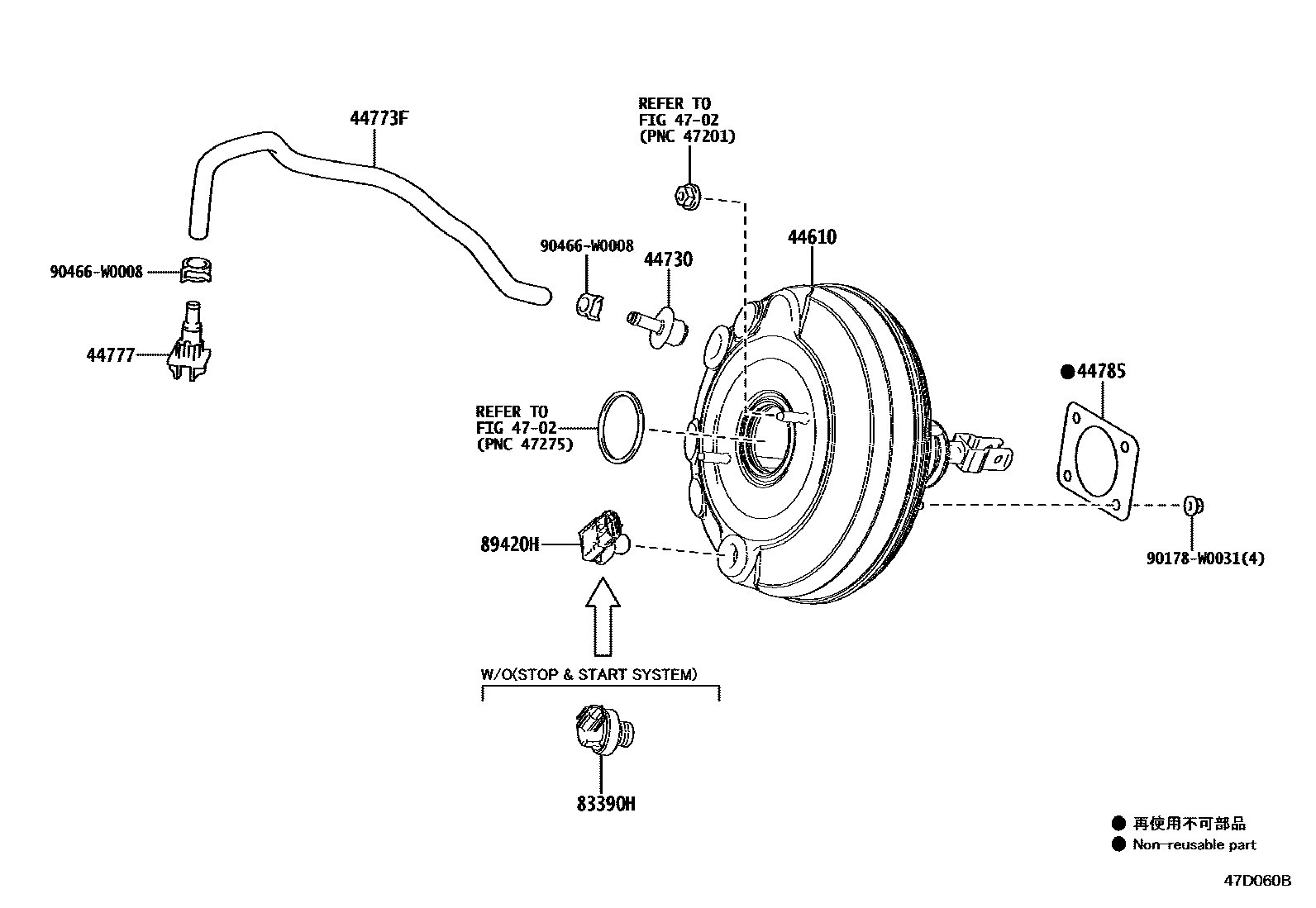

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-09H70iMXPB10..LHD..6F202107

WITH(STOP & START SYSTEM)

main44610-09H80iMXPB10..LHD202107

main44610-09H90iMXPB10..RHD..6F202107-202206

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-F9010iMXPB10..RHD..CVT202107-202206

main44730-F9030iMXPB10..LHD202107

44773FHOSE, UNION TO CHECK VALVE

main44773-52300iMXPB10..LHD202107

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-K0010iMXPB10..RHD..6F202107-202206

44785GASKET, BRAKE BOOSTER

main44785-K0010iMXPB10..RHD..6F202107-202206

4702

83390HSWITCH ASSY, VACUUM WARNING

main83390-09020iMXPB10..RHD..6F202107-202206

89420HSENSOR ASSY, VACUUM

main89421-09060iMXPB10..LHD..6F202107

WITH(STOP & START SYSTEM)

90178W0031

main90178-W0031

90466W0008

main90466-W0008

10 parts on this diagram · 2 diagrams in section
