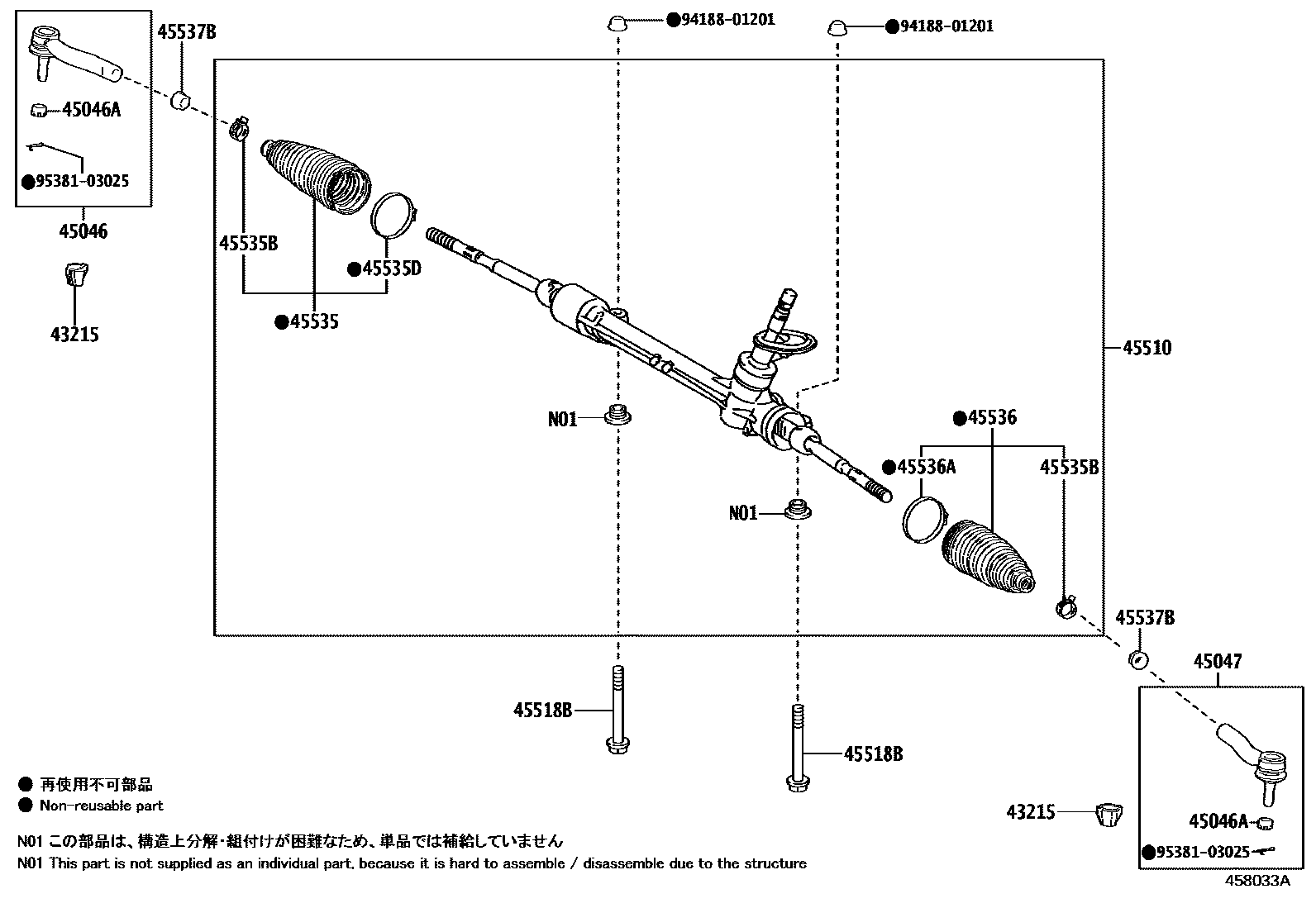

FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

45046END SUB-ASSY, TIE ROD, RH

main45046-09A20iMXPB10..RHD..6F202107-202504

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMXPB10..RHD..6F202107-202504

45047END SUB-ASSY, TIE ROD, LH

main45047-09450iMXPB10..RHD..6F202107-202504

45510GEAR ASSY, STEERING

main45510-0D620iMXPB10,MXPJ1#..RHD..CVT202107-202304

sub45510-0D680

main45510-0D630iMXPB10,MXPJ1#..LHD202107-202304

sub45510-0D690

main45510-0D680iMXPB10,MXPJ15..RHD..CVT..N202305-202504

main45510-0D690iMXPJ10,11,16..LHD202305-202504

45518BBOLT, STEERING RACK HOUSING

main90119-W0367iMXPB10..CVT;MXPJ15..RHD..N;MXPB10..LHD..6F202107-202504

45535BOOT, STEERING RACK, NO.1

main45535-09650iMXPB10..RHD..6F202107-202504

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0R020iMXPB10..RHD..6F202107-202504

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-42010iMXPB10..RHD..6F202107-202504

45536BOOT, STEERING RACK, NO.2

main45535-09650iMXPB10..RHD..6F202107-202504

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010iMXPB10..RHD..6F202107-202504

45537BNUT, RACK END LOCK

main90178-16001iMXPB10..RHD..6F202107-202504

9418801201

main94188-01201

9538103025

main95381-03025

14 parts on this diagram · 2 diagrams in section
