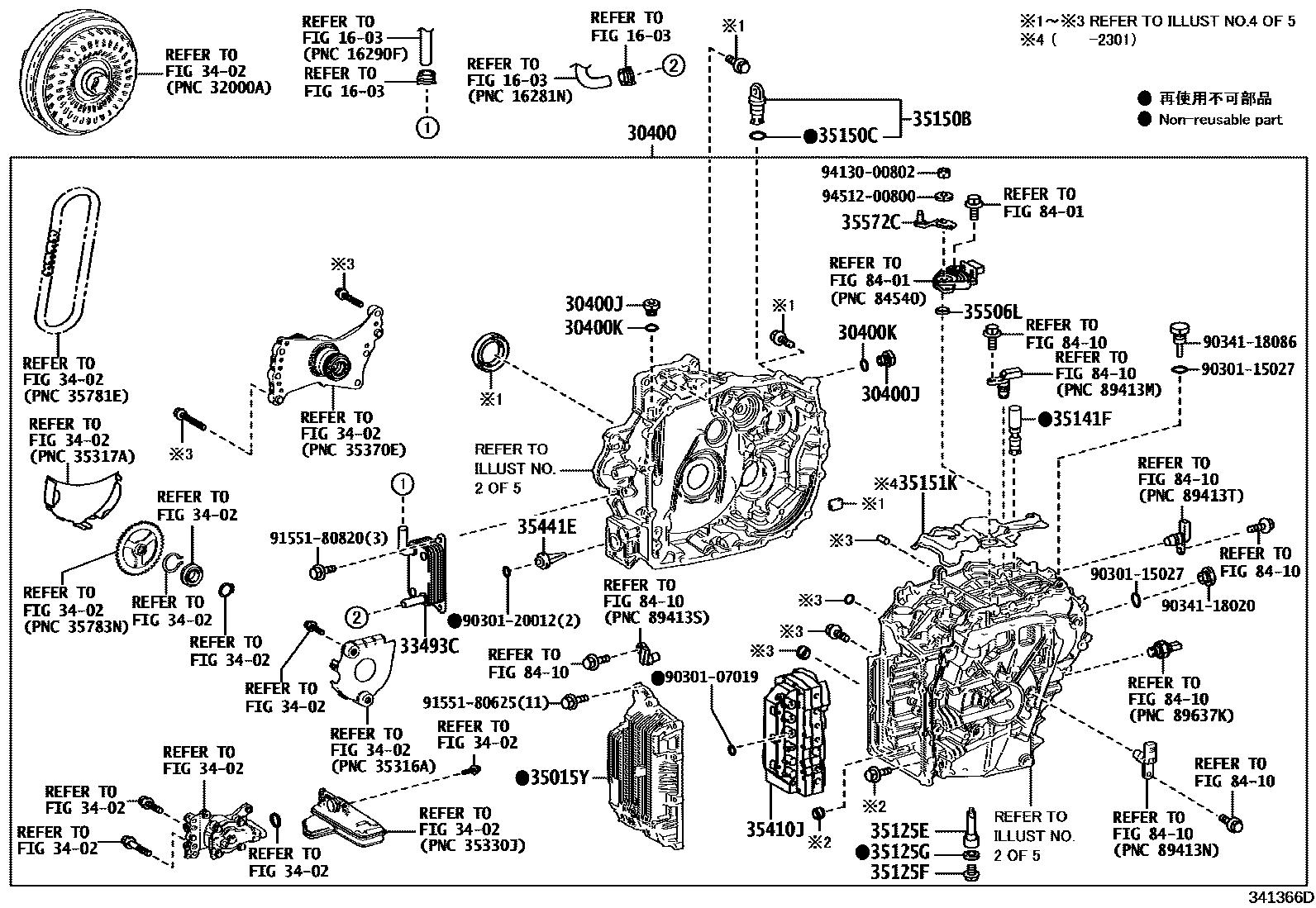

TRANSAXLE ASSY(CVT)

0001 1K320 0002 1K320 0003 1K320 0004 1K320 0005 1K320

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-52500iMXPB10..CVT202107

K320

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMXPB10..CVT202107

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMXPB10..CVT202107

33493CCOOLER, TRANSMISSION OIL

main33493-12100iMXPB10..CVT202107

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-12020iMXPB10..CVT202107

35125ETUBE, OVERFLOW(CVT)

main35125-12490iMXPB10..CVT202107

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMXPB10..CVT202107

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMXPB10..CVT202107

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03233iMXPB10..CVT202107

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iMXPB10..CVT202107

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMXPB10..CVT202107

35151KCOVER, AUTOMATIC TRANSMISSION CASE

main35151-52020iMXPB10..CVT202107-202301

sub39195-52010

sub91551-80625

35410JBODY ASSY, TRANSMISSION VALVE

main35410-52290iMXPB10..CVT202107

35441ESTRAINER, SOLENOID OIL

main35441-12130iMXPB10..CVT202107

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMXPB10..CVT202107

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMXPB10..CVT202107

8401

8410

9030107019

main90301-07019

9030115027

main90301-15027

9030120012

main90301-20012

9034118020

main90341-18020

9034118086

main90341-18086

9155180625

main91551-80625

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800

29 parts on this diagram · 5 diagrams in section
