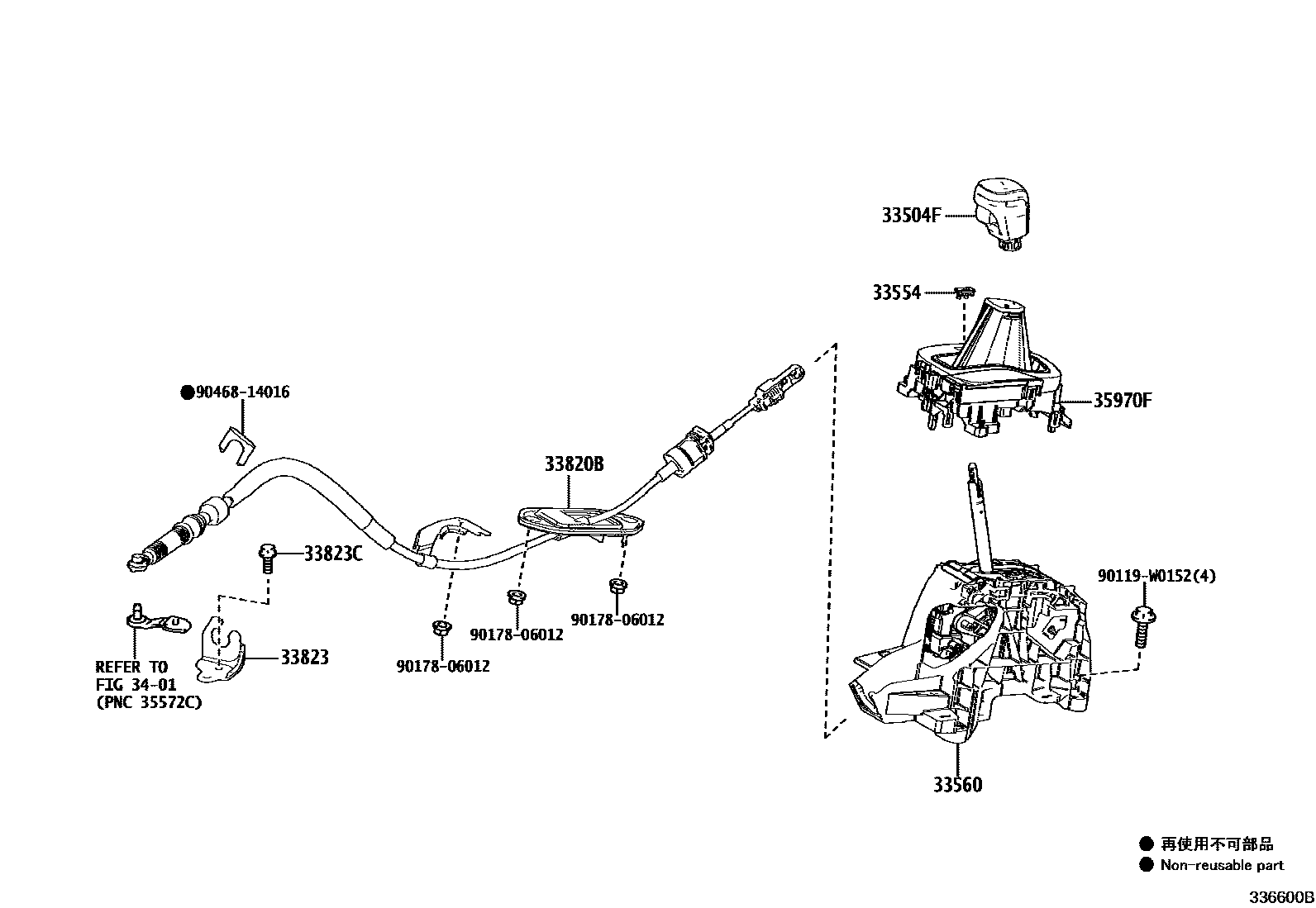

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02480-C0iMXPB10..CVT..N;MXPJ15..RHD..N202305

BLACK,TRIM4#

main33504-02480-C0iMXPJ10,11,16..N202404-202504

BLACK,TRIM2#

main33504-02480-C0iMXPJ15..G202305-202504

BLACK,TRIM2#,4#

main33504-02480-C0iMXPB10..CVT..N;MXPJ15..RHD..N202305-202404

BLACK,TRIM1#,6#,8#

main33504-0D130-C4iMXPB10..LHD..R202107

BLACK,TRIM1#,2#,8#

main33504-0D130-C4iMXPB10..RHD..6F..N202107-202206

SHIFT LEVER & KNOB-KNOB=PVC,BLACK,TRIM1#,2#,6#,8#

main33504-0D130-C4iMXPB10..RHD..R202107-202206

BLACK,TRIM2#

main33504-0D270-C7iMXPB10..LHD..R202107-202206

SHIFT LEVER & KNOB-KNOB=LEATHER,BLACK

main33504-0D270-C7iMXPB10..LHD..6F..(G,N)202107-202206

BLACK

main33504-0D750-C0iMXPJ10,11..V202404

BLACK,TRIM2#

main33504-0D770-C0iMXPJ10..V202210-202404

BLACK,TRIM2#

main33504-K0010-C0iMXPJ10..R202107-202404

SHIFT LEVER & KNOB-KNOB=PVC,BLACK,TRIM1#,2#,6#,8#

main33504-K0010-C0iMXPJ10..R202107-202404

BLACK,TRIM1#,2#,8#

main33504-K0010-C0iMXPJ10..R202404

BLACK,TRIM1#,2#

main33504-K0020-C0iMXPB10..CVT..G202107-202304

BLACK,TRIM2#,4#

sub33504-02480

main33504-K0020-C0iMXPB10,MXPJ1#..CVT..N202107-202304

BLACK,TRIM4#

sub33504-02480

main33504-K0020-C0iMXPB10,MXPJ1#..CVT..N202107-202304

BLACK,TRIM1#,2#,6#,8#

sub33504-02480

33554CAP, SHIFT LEVER

main33554-K0010iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-F4010iMXPB10..LHD..CVT202107

main33560-F4020iMXPB10..RHD..CVT202107

main33560-F4050iMXPJ15..LHD..G202107-202504

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main33560-F4060iMXPJ1#..RHD..(G,V)202107-202404

WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)

main33560-F4060iMXPJ15..RHD..G202107-202504

main33560-K0010iMXPJ10,11,16..LHD..(N,R)202107-202504

main33560-K0020iMXPJ10..RHD..N202107-202404

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0D740iMXPJ11,16202404

main33820-K0020iMXPB10..LHD..6F202107-202206

main33820-K0030iMXPB10..CVT202107

main33820-K0040iMXPJ15..RHD..N202107-202504

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0D280iMXPJ11,16202404

main33823-K0010iMXPB10..CVT202107

main33823-K0020iMXPJ10;MXPJ15..G;MXPJ15..LHD..N202107-202504

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60iMXPB10..LHD..6F202107-202206

(J)

main90119-W0255iMXPB10..LHD..6F202107-202206

(L)

main91671-80820iMXPJ15..G;MXPJ15..LHD..N202107-202504

3401

35970FHOUSING ASSY, POSITION INDICATOR

main35970-K0010-C0iMXPJ10,11,16..LHD..(N,R)202107-202504

BLACK,TRIM1#,2#

main35970-K0010-C0iMXPJ1#..LHD..G202107-202404

BLACK,TRIM4#

main35970-K0010-C0iMXPJ15..LHD..N202404-202504

BLACK,TRIM21,4#

main35970-K0010-C2iMXPJ1#..LHD..G202107-202404

BLACK,TRIM6#

main35970-K0010-C2iMXPJ1#..LHD..G202107-202404

BLACK,TRIM2#

main35970-K0010-C3iMXPJ10,11,16..LHD..G202404-202504

BLACK/GRAY,TRIM21

main35970-K0010-C4iMXPJ1#..LHD..(N,R)202107-202404

BLACK,TRIM8#

main35970-K0010-C5iMXPJ10..LHD..V202210-202404

BLACK/GR RED,TRIM2#

main35970-K0020-C0iMXPB10..LHD..CVT..N202107

BLACK,TRIM4#

main35970-K0020-C0iMXPB10..CVT..G202107

BLACK,TRIM1#,2#,6#,8#

main35970-K0030-C0iMXPJ10..RHD..N202107-202404

BLACK,TRIM4#

main35970-K0030-C0iMXPJ15..RHD..N202107-202404

BLACK,TRIM1#,2#

main35970-K0030-C0iMXPJ10,11,16..RHD..G202404-202504

BLACK,TRIM21,4#

main35970-K0030-C2iMXPJ1#..RHD..G202107-202404

BLACK,TRIM2#

main35970-K0030-C2iMXPJ10..RHD..N202107-202404

BLACK,TRIM6#

main35970-K0030-C3iMXPJ10,11,16..RHD..G202404-202504

BLACK/GRAY,TRIM21

main35970-K0030-C4iMXPJ15..RHD..N202107-202404

BLACK,TRIM8#

main35970-K0030-C5iMXPJ10,11..RHD..V202210-202404

BLACK/GR RED,TRIM2#

main35970-K0040-C0iMXPB10..RHD..CVT202107

BLACK,TRIM1#,2#,6#,8#

90119W0152

main90119-W0152

9017806012

main90178-06012

9046814016

main90468-14016

11 parts on this diagram · 5 diagrams in section
