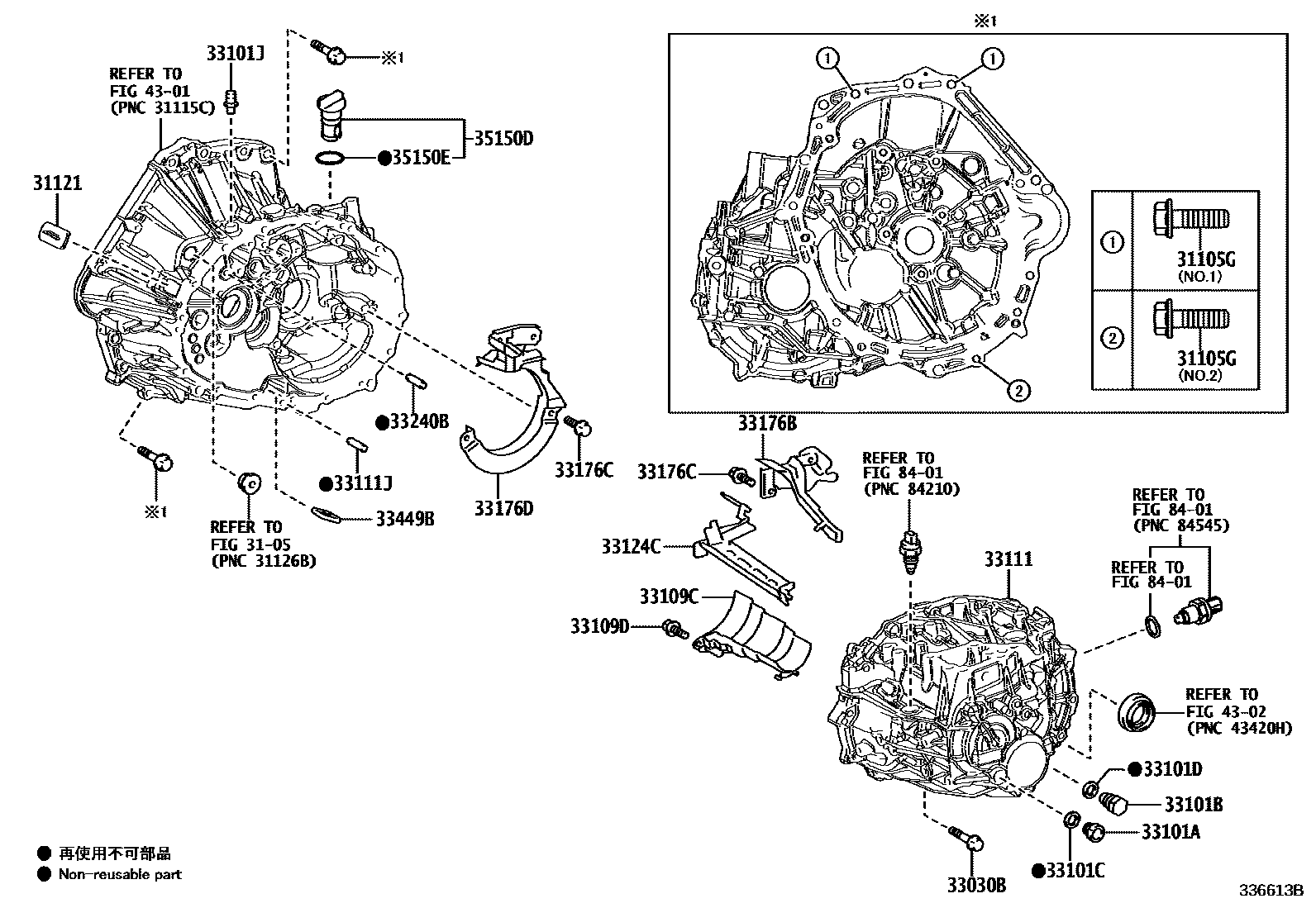

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
3105
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX45-36,NO.1:REFER ILLUST.
*8-1.25PX35-22,NO.2:REFER ILLUST.
31121COVER, CLUTCH HOUSING, NO.1
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX40-22,(L)
*8-1.25PX40-22,(J)
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
33101JPLUG, BREATHER
33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
(L)
(J)
33111CASE, MANUAL TRANSMISSION
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
(L)
(J)
33176DSEPARATOR, TRANSMISSION OIL, NO.2(MTM)
33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
33449BMAGNET, TRANSMISSION
35150DPLUG ASSY, TRANSMISSION CASE
35150ERING, O (FOR TRANSMISSION CASE PLUG)
4301
4302
8401
24 parts on this diagram · 1 diagram in section
