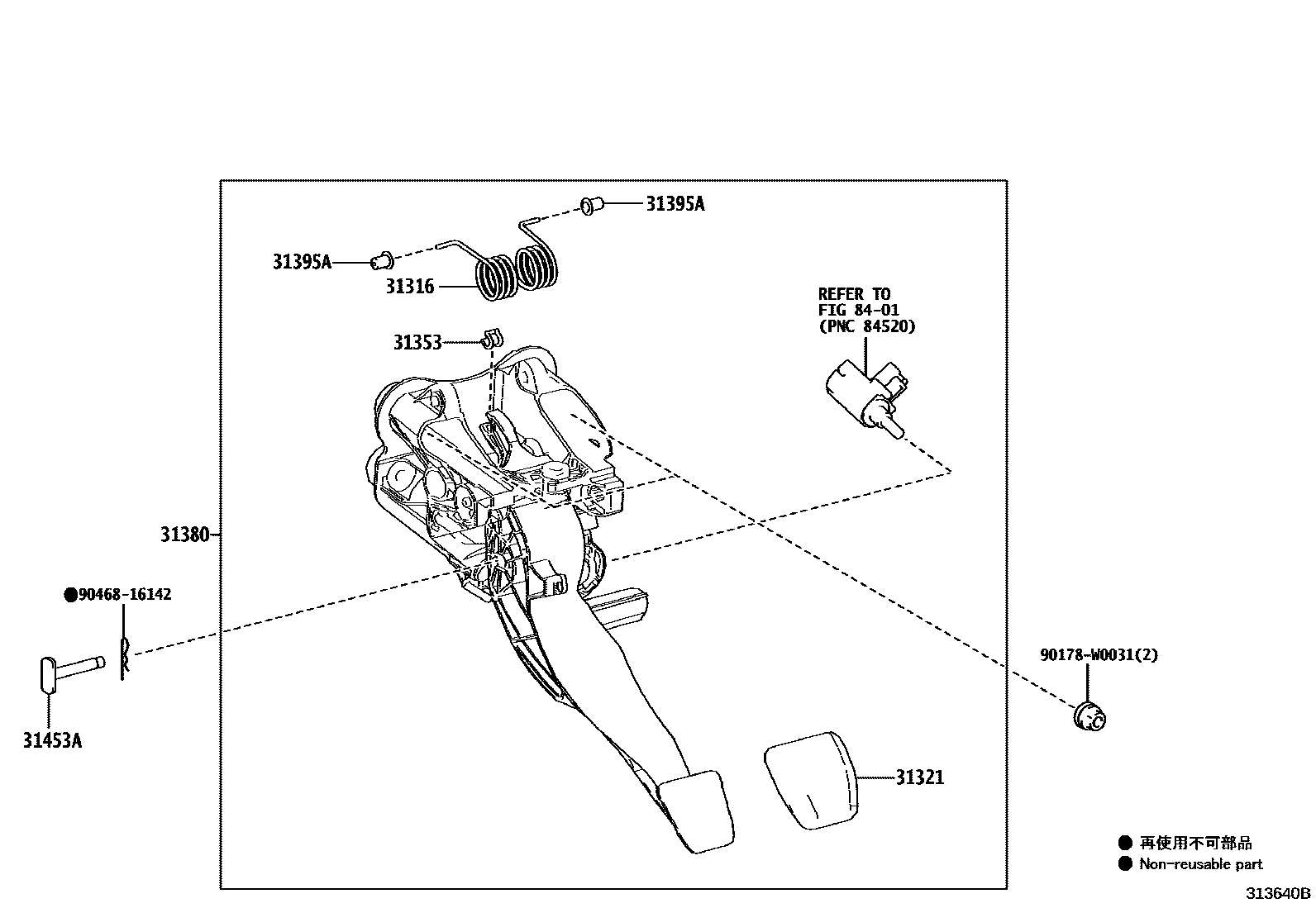

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31316SPRING, TURNOVER CLUTCH PEDAL

main31316-0D010iMXPB10..LHD..6F202107

31321PAD, CLUTCH PEDAL

main31321-42010iMXPB10..RHD..6F202107-202206

31353HOLDER, CLUTCH PEDAL SPRING

main31353-0D010iMXPB10..LHD..6F202107

main31353-26010iMXPB10..RHD..6F202107-202206

31380SUPPORT ASSY, PEDAL

main31380-K0050iMXPB10..LHD..6F202107

31395AHOOK, PEDAL SPRING, NO.1

main31395-0D010iMXPB10..LHD..6F202107

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main31455-K0010iMXPB10..LHD..6F202107

L=51.5

main90249-08051iMXPB10..RHD..6F202107-202206

L=31.5

8401

90178W0031

main90178-W0031

9046816142

main90468-16142

9 parts on this diagram · 4 diagrams in section
