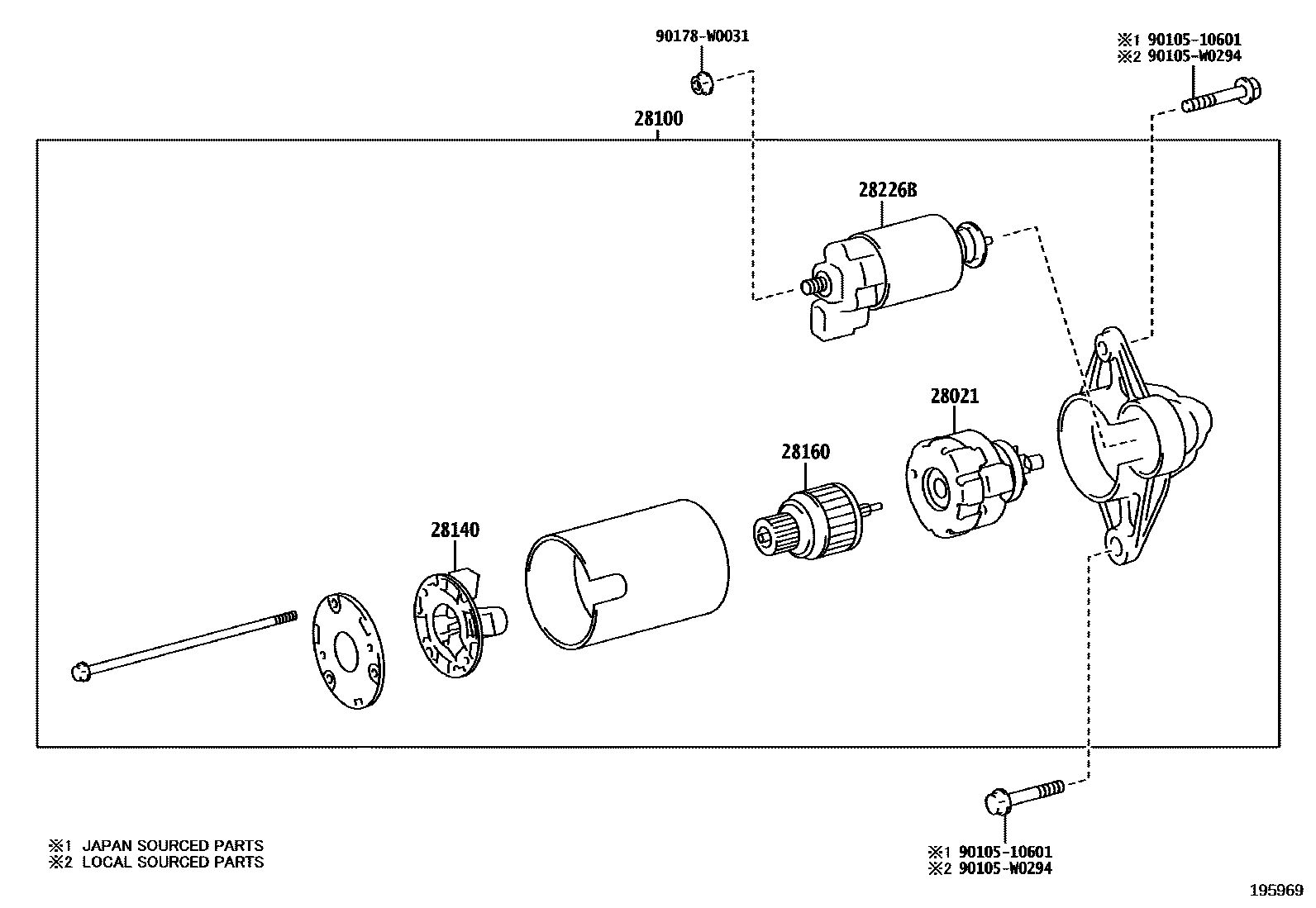

STARTER

0001 112V 1.0KW 0002 112V 1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-K0040iM15AFKS..MXPB10..RHD..6F202107-202206

main28021-K0060iM15AFKS..MXPB10..LHD..6F202107

WITH(STOP & START SYSTEM)

28100STARTER ASSY

main28100-K0010iM15AFKS..MXPB10..RHD..6F202107-202206

12V 1.0KW

main28100-K0020iM15AFKS..MXPB10..LHD..6F202107

12V 1.2KW,WITH(STOP & START SYSTEM)

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iM15AFKS..MXPB10..RHD..6F202107-202206

main28140-K0060iM15AFKS..MXPB10..LHD..6F202107

WITH(STOP & START SYSTEM)

28160ARMATURE ASSY, STARTER

main28160-21070iM15AFKS..MXPB10..RHD..6F202107-202206

main28160-K0060iM15AFKS..MXPB10..LHD..6F202107

WITH(STOP & START SYSTEM)

28226BSTARTER KIT, REPAIR SERVICE

main28226-K0040iM15AFKS..MXPB10..RHD..6F202107-202206

main28226-K0060iM15AFKS..MXPB10..LHD..6F202107

WITH(STOP & START SYSTEM)

9010510601

main90105-10601

90105W0294

main90105-W0294

90178W0031

main90178-W0031

8 parts on this diagram · 2 diagrams in section
