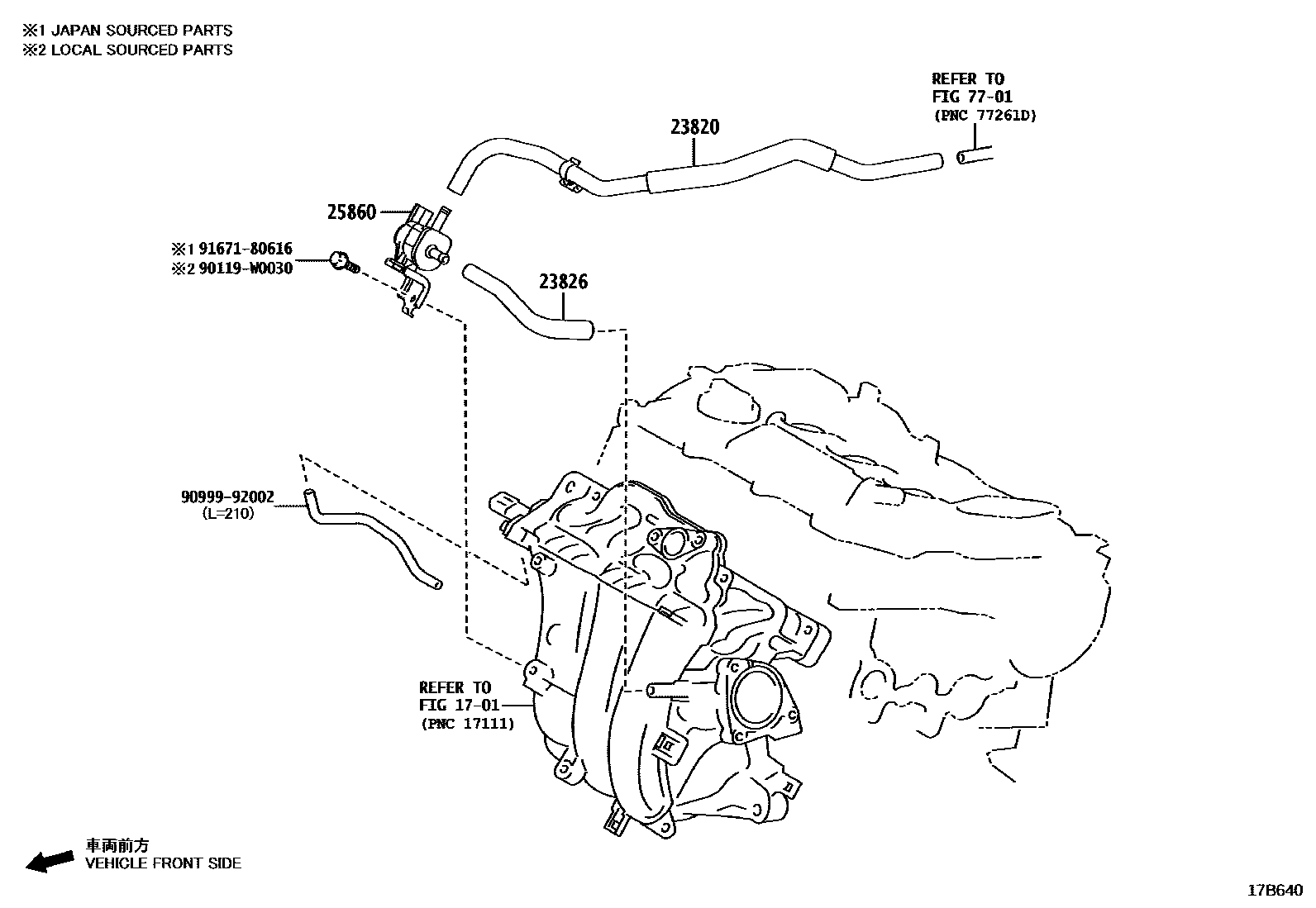

VACUUM PIPING

0001 1 0002 1 0003 1W/(GPF)

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F3030iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107-202206

main23820-F3040iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-F3070iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107-202206

main23826-F3080iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-F3030iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107-202206

main25860-F3040iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

7701

90119W0030

main90119-W0030

9099992002

main90999-92002

9167180616

main91671-80616

8 parts on this diagram · 3 diagrams in section
