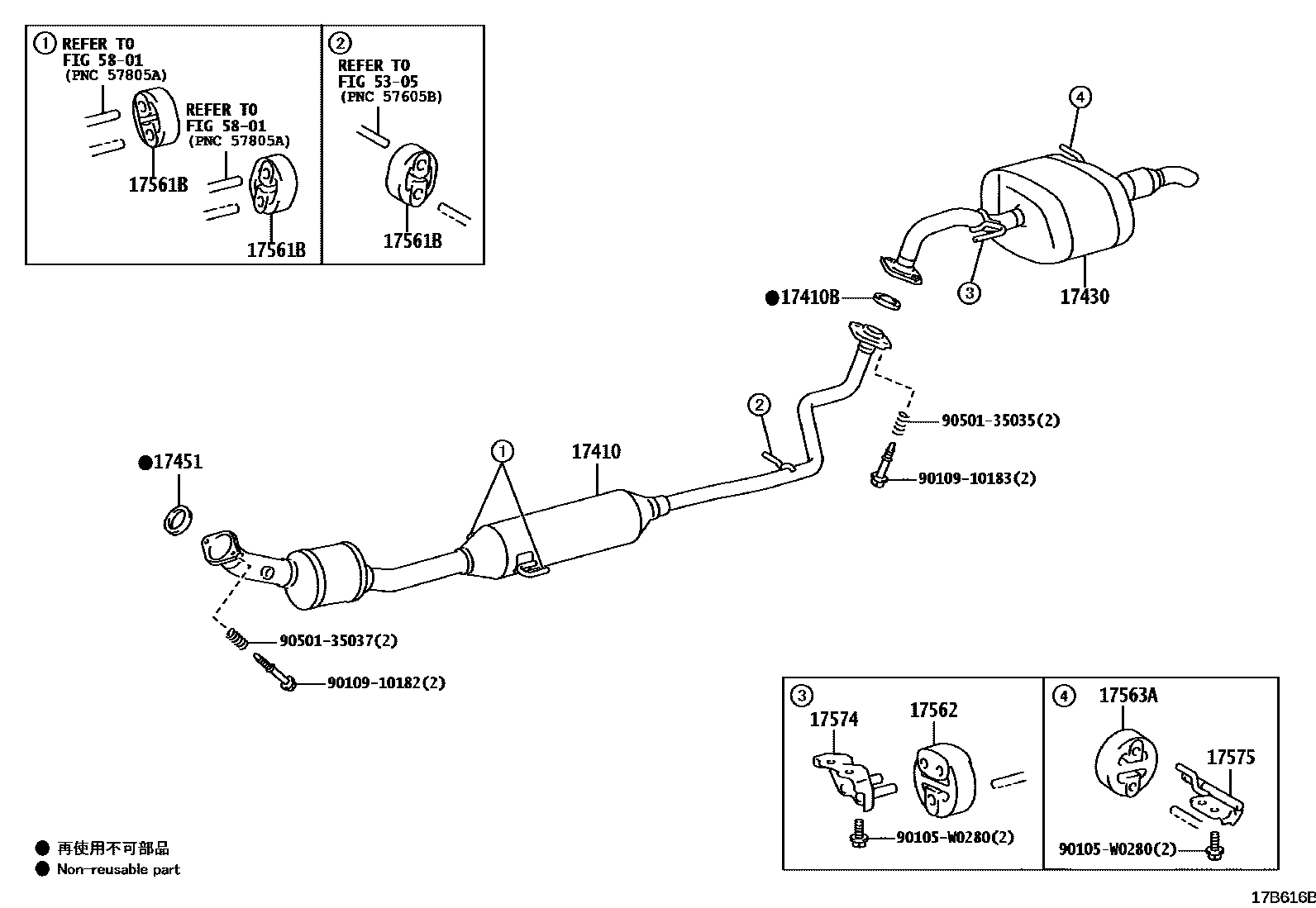

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/A65/Y
*114=TOYOTA/A64/Y
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
TUNISIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
*114=TOYOTA/A65/Y
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
COLOMBIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6B,WITH(ON BOARD DIAGNOSIS)
TUNISIA SPEC&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5305
5801
90105W0280
main90105-W0280
9010910182
main90109-10182
9010910183
main90109-10183
9050135035
main90501-35035
9050135037
main90501-35037
16 parts on this diagram · 3 diagrams in section
