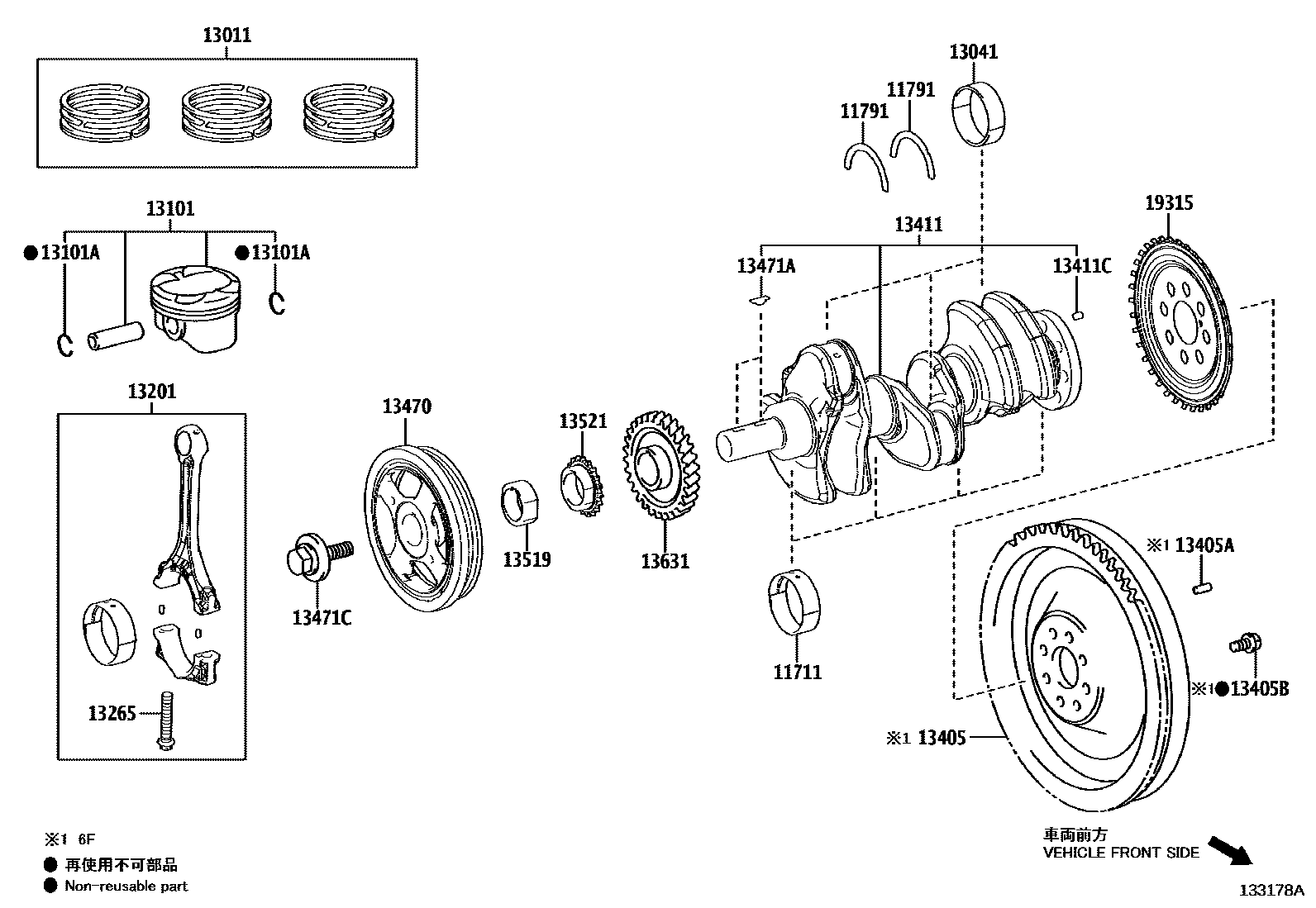

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,*616:REFER R/M
MARK 2,*616:REFER R/M
MARK 3,*616:REFER R/M
MARK 4,*616:REFER R/M
MARK 5,*616:REFER R/M
MARK 6,*616:REFER R/M
MARK 1,*648:REFER R/M
MARK 2,*648:REFER R/M
MARK 3,*648:REFER R/M
MARK 4,*648:REFER R/M
MARK 5,*648:REFER R/M
MARK 6,*648:REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,*616
STD,*648
13011RING SET, PISTON
STD,(J),*648
STD,*616
STD,*616,(J),*648
STD,(L),*648
STD,*648
13041BEARING, CONNECTING ROD
MARK 1,*616:REFER R/M
MARK 2,*616:REFER R/M
MARK 3,*616:REFER R/M
main13041-F2010-01iM15AFKS..MXPB10..CVT;M15AFXE..MXPJ15..RHD..N;M15AFKS..MXPB10..LHD..6F202107-202504
MARK 1,*648:REFER R/M
main13041-F2010-02iM15AFKS..MXPB10..CVT;M15AFXE..MXPJ15..RHD..N;M15AFKS..MXPB10..LHD..6F202107-202504
MARK 2,*648:REFER R/M
MARK 3,*648:REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD
STD,*616
STD,*648,*616
STD,*648
13101ARING, HOLE SNAP(FOR PISTON PIN)
*648,*616
*616
*648
13201ROD SUB-ASSY, CONNECTING
MARK A,*616:REFER R/M
MARK B,*616:REFER R/M
MARK C,*616:REFER R/M
MARK A,*648:REFER R/M
MARK B,*648:REFER R/M
MARK C,*648:REFER R/M
13265BOLT, CONNECTING ROD
*648
*648,*616
*616
13405FLYWHEEL SUB-ASSY
*616
*648
*648
*648
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8,*648
L=18,OD=8,*616
L=18,OD=8,*648,*616
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
*648,*616
*616
*648
13411CRANKSHAFT
*616
*648
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
*616
*648
*648,*616
13470PULLEY ASSY, CRANKSHAFT
*648,*616
*616
*648
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
*648,*616
*616
*648
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
*648,*616
*616
*648
13519GEAR, OIL PUMP DRIVE
*616
*648
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
*616
*648
13631GEAR, BALANCESHAFT DRIVE
(J)
(L)
19315PLATE, CRANK ANGLE SENSOR, NO.1
(J)
*616,(J),*648
*616
(J),*648
(L),*648
(L)
20 parts on this diagram · 2 diagrams in section
