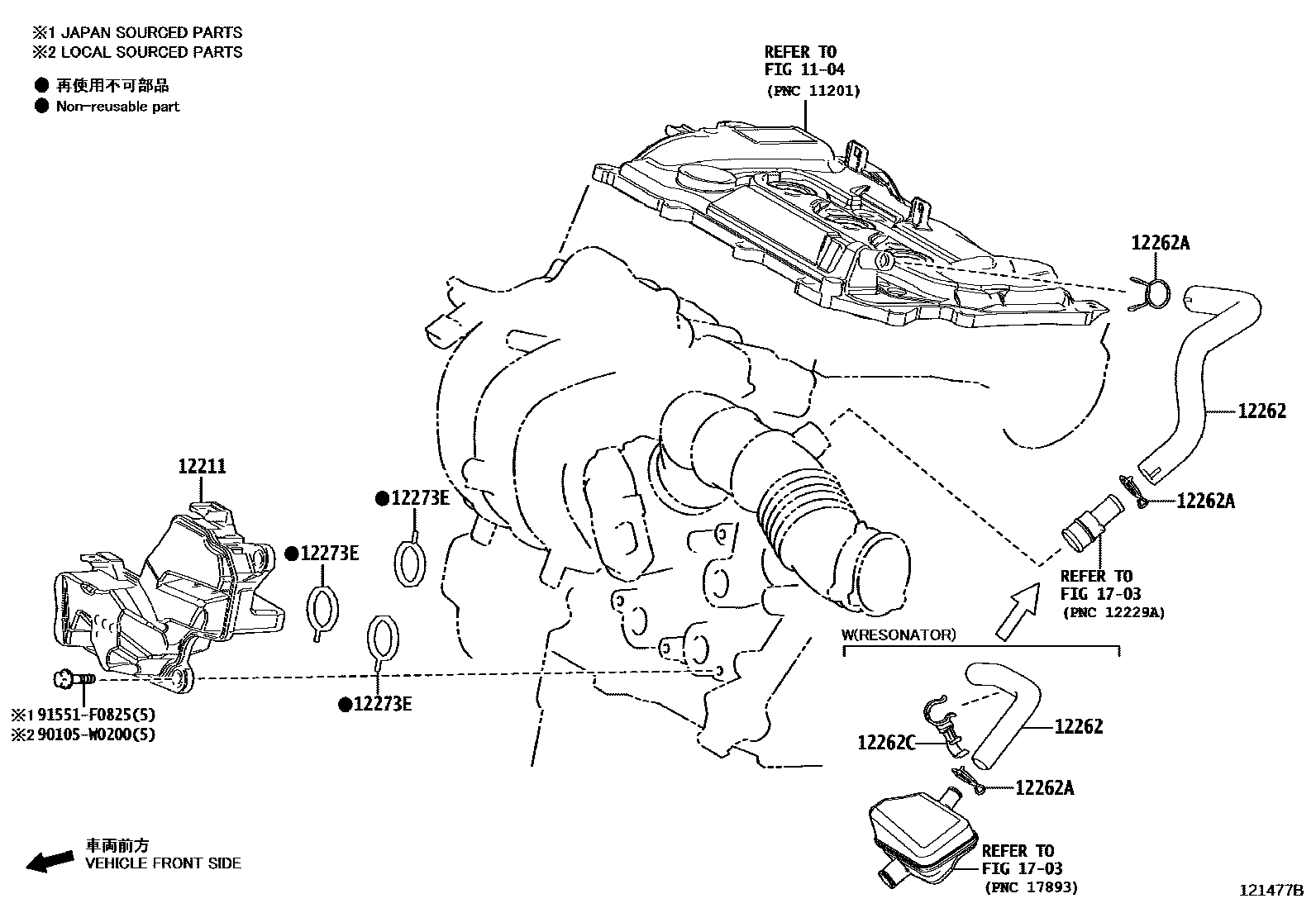

VENTILATION HOSE

1104

12211CASE, VENTILATION, NO.1

main12211-15060iM15AFXE..MXPJ1#202107-202303

*616

sub12211-15061

main12211-15061iM15AFXE..MXPJ10202304-202504

*616

main12211-F3010iM15#..MXPB10,MXPJ1#..CVT;M15AFKS..MXPB10..LHD..6F202107-202301

*648

main12211-F3011iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202302-202504

*648

12262HOSE, VENTILATION, NO.2

main12262-15100iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107-202206

main12262-15110iM15AFXE..MXPJ15..RHD..N202107-202404

main12262-15140iM15AFXE..MXPJ10,11,16..G,N,V202404-202504

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iM15AFXE..MXPJ10,11,16202107-202504

12262CCLAMP, VENTILATION HOSE, NO.2

main44783-33020iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202404-202504

12273EGASKET(FOR VENTILATION CASE)

main12273-15010iM15AFKS..MXPB10..RHD..6F202107-202206

*648

main12273-15010iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main12273-15010iM15AFXE..MXPJ15..RHD..N202107

*616

1703

90105W0200

main90105-W0200

91551F0825

main91551-F0825

9 parts on this diagram · 1 diagram in section
