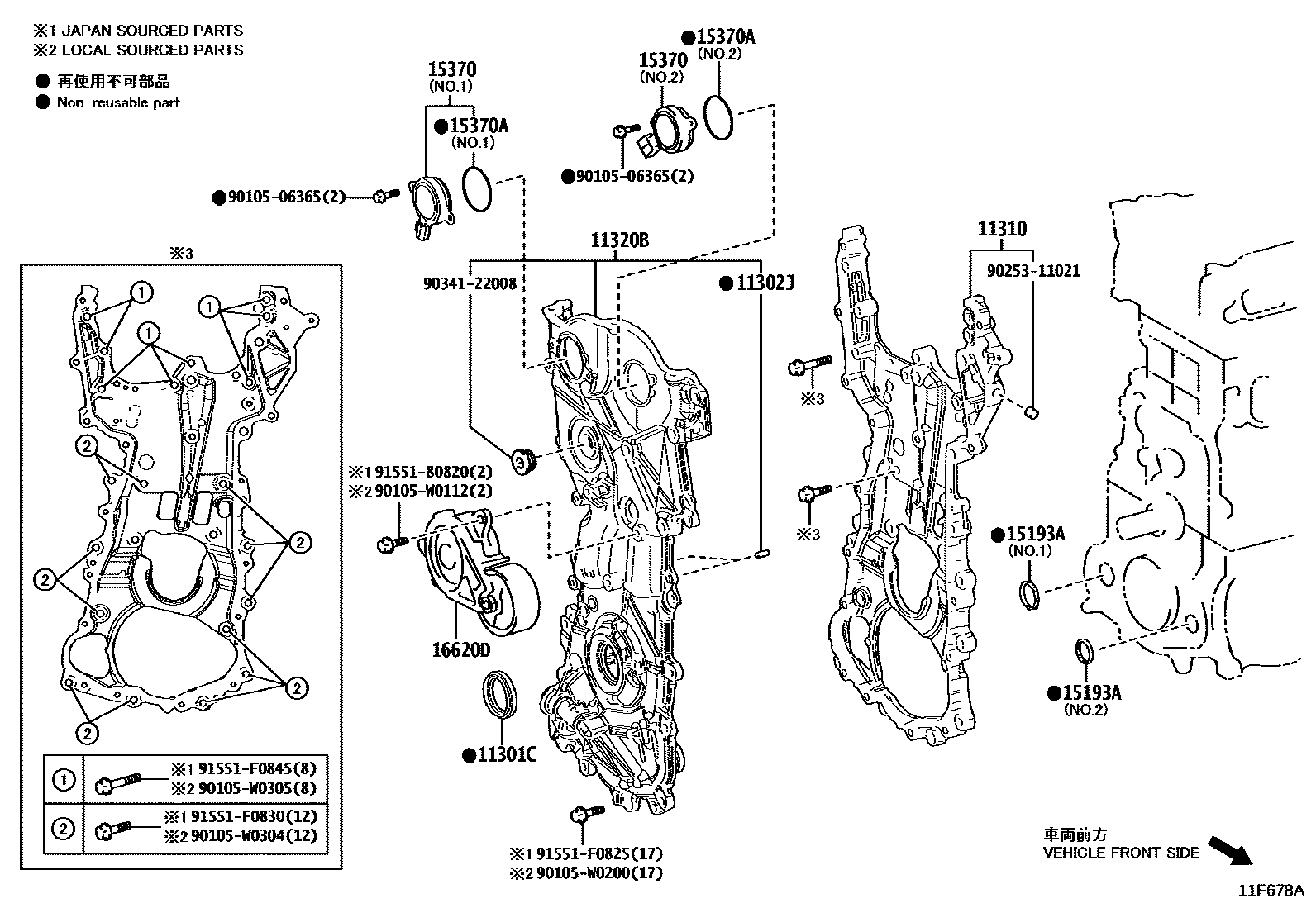

TIMING GEAR COVER & REAR END PLATE
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
*616
*648
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
*616,NO.1:REFER ILL.
*648,NO.1:REFER ILL.
*648,NO.1:REFER ILL.,*616,NO.1:REFER ILL.
*648,NO.2:REFER ILL.
*648,NO.2:REFER ILL.,*616,NO.2:REFER ILL.
*616,NO.2:REFER ILL.
11310COVER ASSY, TIMING CHAIN
*616
*648
11320BCOVER ASSY, TIMING CHAIN, NO.2
*616
*648
15193AGASKET, OIL PUMP
NO.1:REFER ILLUST.
*616,NO.1:REFER ILL.
*648,NO.1:REFER ILL.
*648,NO.1:REFER ILL.,*616,NO.1:REFER ILL.
NO.2:REFER ILLUST.
*648,NO.2:REFER ILL.,*616,NO.2:REFER ILL.
*616,NO.2:REFER ILL.
*648,NO.2:REFER ILL.
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
*648
NO.1:REFER ILLUST.
*648,*616
*616
NO.2:REFER ILLUST.
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
*648
NO.1:REFER ILLUST.
*648,*616
*616
NO.2:REFER ILLUST.
16620DTENSIONER ASSY, V-RIBBED BELT
ECUADOR SPEC
EGYPT SPEC
COLOMBIA SPEC
9010506365
main90105-06365
90105W0112
main90105-W0112
90105W0200
main90105-W0200
90105W0304
main90105-W0304
90105W0305
main90105-W0305
9025311021
main90253-11021
9034122008
main90341-22008
9155180820
main91551-80820
91551F0825
main91551-F0825
91551F0830
main91551-F0830
91551F0845
main91551-F0845
19 parts on this diagram · 2 diagrams in section
