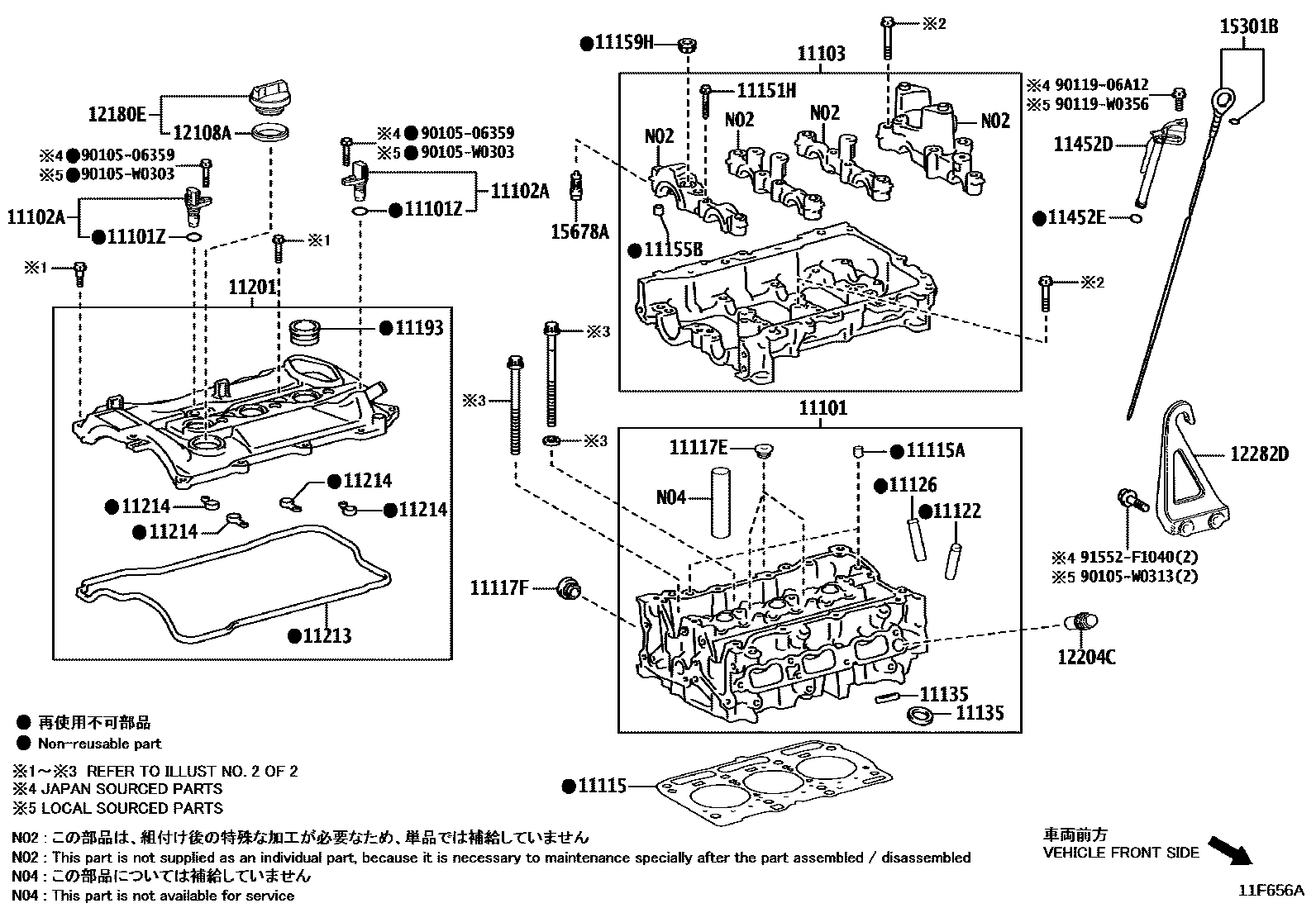

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-19545iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202412

*616

main11101-19546iM15AFXE..MXPJ10202412-202504

*616

main11101-F9070iM15AFKS..MXPB10202107

main11101-F9080iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202412

*648

main11101-F9081iM15AFXE..MXPJ10,11,16202412-202504

*648

11101ZO RING, CAM POSITION SENSOR

main90301-11038iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107-202504

*648,*616

main90301-11038iM15AFKS..MXPB10..RHD..6F202107-202206

main90301-11038iM15AFXE..MXPJ10202404

*616

main90301-11038iM15AFXE..MXPJ10202404

*648

11102ASENSOR, CAMSHAFT POSITION

main90919-05096iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main90919-05096iM15AFKS..MXPB10..RHD..6F202107-202206

main90919-05096iM15AFXE..MXPJ10202404

*616

main90919-05096iM15AFXE..MXPJ10202404

*648

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-15020iM15AFXE..MXPJ1#202107-202210

*616

sub11103-15021

main11103-15021iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202211-202504

*616

main11103-F3010iM15AFKS..MXPB10..RHD..6F202107-202206

main11103-F3020iM15AFXE..MXPJ15..RHD..N202107-202504

*648

11115GASKET, CYLINDER HEAD

main11115-15100iM15AFKS..MXPB10..RHD..6F202107-202206

*648

main11115-15100iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main11115-15100iM15AFXE..MXPJ15..RHD..N202107

*616

11115APIN, RING

main90253-12002iM15AFKS..MXPB10..RHD..6F202107-202206

*648

main90253-12002iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main90253-12002iM15AFXE..MXPJ15..RHD..N202107

*616

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015iM15AFXE..MXPJ10,11,16202404

*616

main90341-14015iM15AFKS..MXPB10..RHD..6F202107-202206

main90341-14015iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main90341-14015iM15AFXE..MXPJ10202404

*648

11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2

main90341-20012iM15AFKS..MXPB10..RHD..6F202107-202206

main90341-20012iM15AFXE..MXPJ10,11,16202404

*616

main90341-20012iM15AFXE..MXPJ10,11,16202404

*648

main90341-20012iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

11122BUSH, INTAKE VALVE GUIDE

main11122-31090iM15AFKS..MXPB10..RHD..6F202107-202206

STD

main11122-31090iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107-202504

STD,*648,*616

main11122-31090iM15AFXE..MXPJ10202404

STD,*616

main11122-31090iM15AFXE..MXPJ10202404

STD,*648

main11123-31090iM15AFKS..MXPB10..RHD..6F202107-202206

O/S 0.05

main11123-31090iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107-202504

O/S 0.05,*648,*616

main11123-31090iM15AFXE..MXPJ10202404

O/S 0.05,*616

main11123-31090iM15AFXE..MXPJ10202404

O/S 0.05,*648

11126BUSH, EXHAUST VALVE GUIDE

main11122-31041iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

STD,*616

sub11122-47010

main11122-47010iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107-202504

STD,*648

main11122-47010iM15AFXE..MXPJ10,15202107-202206

STD

main11123-31041iM15AFXE..MXPJ1#202107-202401

O/S 0.05,*616

sub11123-47010

main11123-47010iM15AFXE..MXPJ10202401

O/S 0.05,*616

main11123-47010iM15AFKS..MXPB10..RHD..6F202107-202206

O/S 0.05

main11123-47010iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107

O/S 0.05,*648

main11123-47010iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202404-202504

O/S 0.05,*648,*616

11135SEAT, EXHAUST VALVE

main11135-24020iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

STD,*616

main11135-F2020iM15AFKS..MXPB10..CVT;M15AFKS..MXPB10..LHD..6F202107-202206

STD

main11135-F2020iM15AFXE..MXPJ15..RHD..N202107-202504

STD,*648

11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

main90119-07009iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main90119-07009iM15AFKS..MXPB10..RHD..6F202107-202206

main90119-07009iM15AFXE..MXPJ10202404

*616

main90119-07009iM15AFXE..MXPJ10202404

*648

11155BPIN, RING

main90253-13005iM15AFKS..MXPB10..RHD..6F202107-202206

main90253-13005iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main90253-13005iM15AFXE..MXPJ10202404

*616

main90253-13005iM15AFXE..MXPJ10202404

*648

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-31040iM15AFKS..MXPB10..RHD..6F202107-202206

main11159-31040iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main11159-31040iM15AFXE..MXPJ10202404

*616

main11159-31040iM15AFXE..MXPJ10202404

*648

11193GASKET, SPARK PLUG TUBE

main11193-37030iM15AFXE..MXPJ10,11,16202404

*616

main11193-37030iM15AFKS..MXPB10..RHD..6F202107-202206

main11193-37030iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main11193-37030iM15AFXE..MXPJ10202404

*648

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-15040iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*616

main11201-F3010iM15AFKS..MXPB10..RHD..6F202107-202206

main11201-F3020iM15AFXE..MXPJ10,11,16202107-202504

*648

11213GASKET, CYLINDER HEAD COVER

main11213-15100iM15AFXE..MXPJ15..RHD..N202107-202504

*616

main11213-F3010iM15AFXE..MXPJ15..RHD..N202107-202504

*648

main11213-F3010iM15AFKS..MXPB10..RHD..6F202107-202206

11214GASKET, CYLINDER HEAD COVER, NO.2

main11213-31080iM15AFKS..MXPB10..RHD..6F202107-202206

main11213-31080iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main11213-31080iM15AFXE..MXPJ10202404

*616

main11213-31080iM15AFXE..MXPJ10202404

*648

11452DGUIDE, OIL LEVEL GAGE

main11452-24020iM15AFKS..MXPB10..RHD..6F202107-202206

main11452-24020iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main11452-24020iM15AFXE..MXPJ10202404

*616

main11452-24020iM15AFXE..MXPJ10202404

*648

11452ERING, O(FOR OIL LEVEL GAGE GUIDE)

main96741-19010iM15AFKS..MXPB10..RHD..6F202107-202206

main96741-19010iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main96741-19010iM15AFXE..MXPJ10202404

*616

main96741-19010iM15AFXE..MXPJ10202404

*648

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001iM15AFKS..MXPB10..RHD..6F202107-202206

*648

main90430-35001iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main90430-35001iM15AFXE..MXPJ15..RHD..N202107

*616

12180ECAP ASSY, OIL FILLER

main12180-38010iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

main12180-38010iM15AFKS..MXPB10..RHD..6F202107-202206

*648

main12180-38010iM15AFXE..MXPJ15..RHD..N202107

*616

12204CVALVE SUB-ASSY, VENTILATION

main12204-25010iM15AFKS..MXPB10;M15AFXE..MXPJ15..RHD..N202107

(J),*648

main12204-25010iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*616,(J),*648

main12204-25010iM15AFXE..MXPJ15..RHD..N202107

*616

main12204-F2020iM15AFKS..MXPB10;M15AFXE..MXPJ15..RHD..N202107-202504

(L),*648

12282DHANGER, ENGINE, NO.2

main12282-25010iM15AFKS..MXPB10;M15AFXE..MXPJ15..RHD..N202107

*616

main12282-25010iM15AFKS..MXPB10;M15AFXE..MXPJ15..RHD..N202107

*648

main12282-25010iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648,*616

15301BGAGE SUB-ASSY, OIL LEVEL

main15301-15070iM15AFXE..MXPJ10;M15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*616

main15301-F3010iM15AFKS..MXPB10..RHD..6F202107-202206

main15301-F3020iM15AFXE..MXPJ15..G;M15AFXE..MXPJ15..LHD..N202107-202504

*648

15678AFILTER, OIL CONTROL VALVE

main15678-46020iM15AFKS..MXPB10202107

9010506359

main90105-06359

90105W0303

main90105-W0303

90105W0313

main90105-W0313

9011906A12

main90119-06A12

90119W0356

main90119-W0356

91552F1040

main91552-F1040

32 parts on this diagram · 4 diagrams in section
