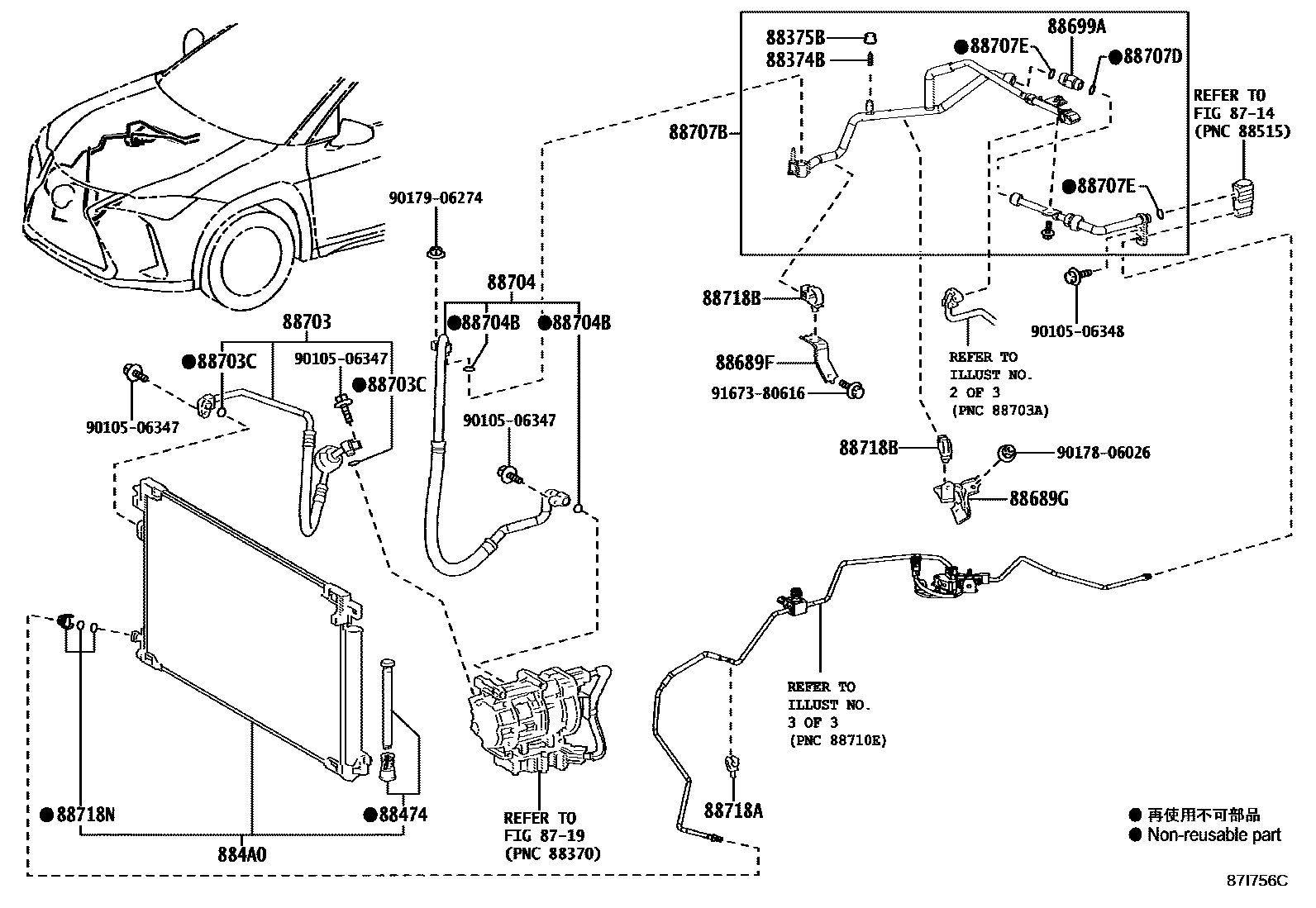

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88375BCAP, SERVICE VALVE, NO.1
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
88689FBRACKET, COOLER, NO.2
88689GBRACKET, COOLER, NO.3
88699AVALVE, AIR
88703HOSE SUB-ASSY, DISCHARGE
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88707BTUBE SUB-ASSY, SUCTION, B
88707DRING, O(FOR SUCTION TUBE)
ID=10.8,OD=15.6
88707ERING, O, NO.2(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718NCLAMP, PIPING
9010506347
9010506348
9017806026
9017906274
9167380616
24 parts on this diagram · 6 diagrams in section
