HEATING & AIR CONDITIONING - WATER PIPING

82212EHARNESS, AIR CONDITIONER NO.1

main82212-12170iKMA10202112

87101GHEATER SUB-ASSY, ELECTRIC

main87101-10010iKMA10202004-202107

main87101-10011iKMA10202108

87121FBRACKET, HEATER

main87121-76010iKMA10202004

87121QBRACKET, HEATER NO.2

main87121-76020iKMA10202004

87121RBRACKET, HEATER NO.3

main87121-76030iKMA10202004

87121SBRACKET, HEATER NO.4

main87121-76050iKMA10..RHD202011

87124CLAMP, HEATER

main87124-12090iKMA10202004

8714

87200APUMP ASSY, WATER(FOR HEATER)

mainG904033050iKMA10202004

87207APIPE & HOSE SUB-ASSY, WATER A

main87207-76070iKMA10202004

87209HOSE SUB-ASSY, WATER

main87209-76080iKMA10202004

87209BHOSE SUB-ASSY, WATER, B

main87209-76090iKMA10202004

87209CHOSE SUB-ASSY, WATER, C

main87209-76110iKMA10202004

87245HOSE, HEATER WATER, INLET

main87245-76070iKMA10202004

G91H0ATANK ASSY, HEATER RESERVE

mainG91H076030iKMA10202004

G9258DCAP, HEATER RESERVE TANK

main16475-28140iKMA10202004

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

8271134490WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34490

8871876010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-76010

9017806018

main90178-06018

9017808021

main90178-08021

9017906274

main90179-06274

9091009134

main90910-09134

9155180625

main91551-80625

9167380616

main91673-80616

9167380620

main91673-80620

9167380820

main91673-80820

9613842501

main96138-42501

9613842701

main96138-42701

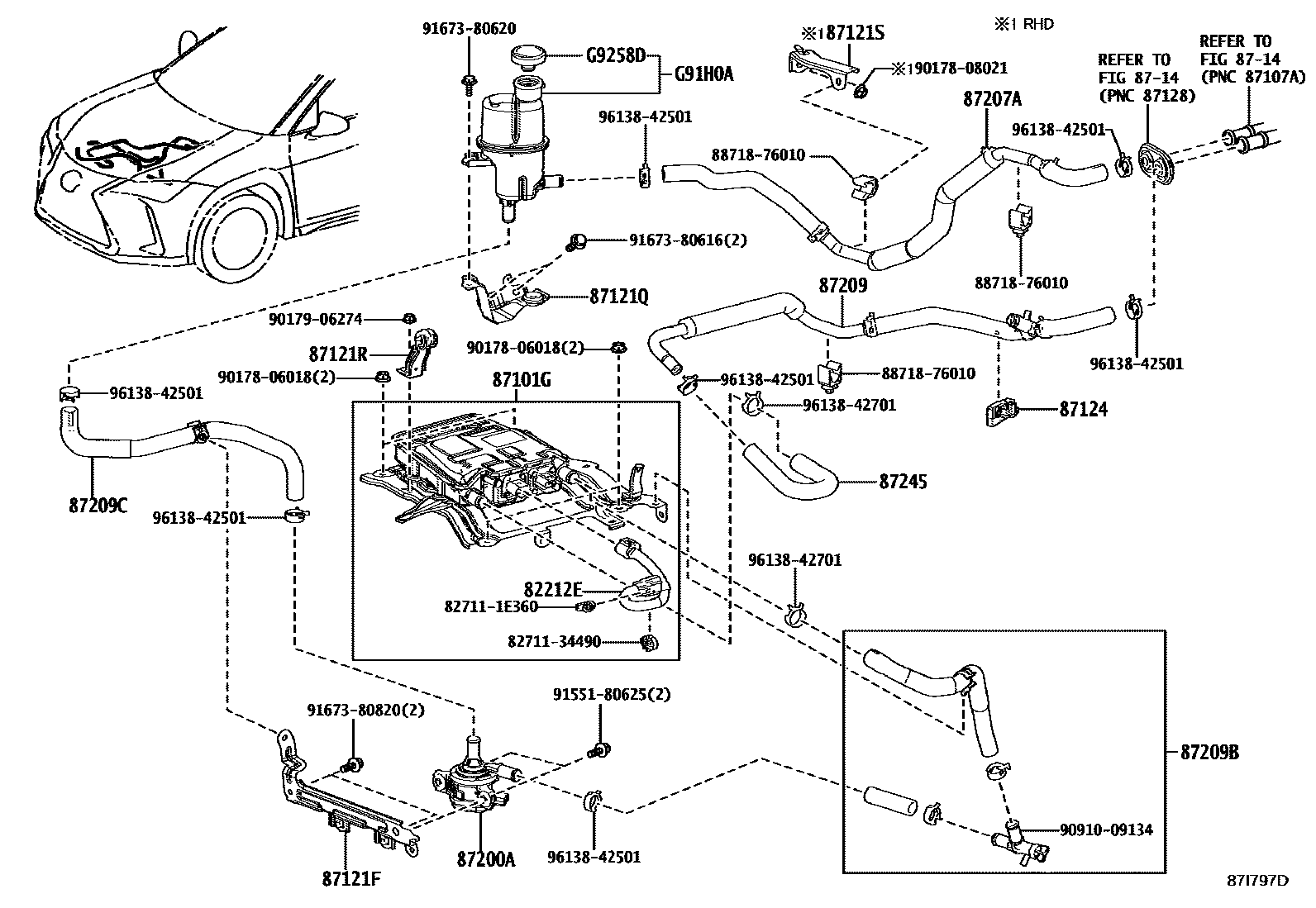

29 parts on this diagram · 1 diagram in section
